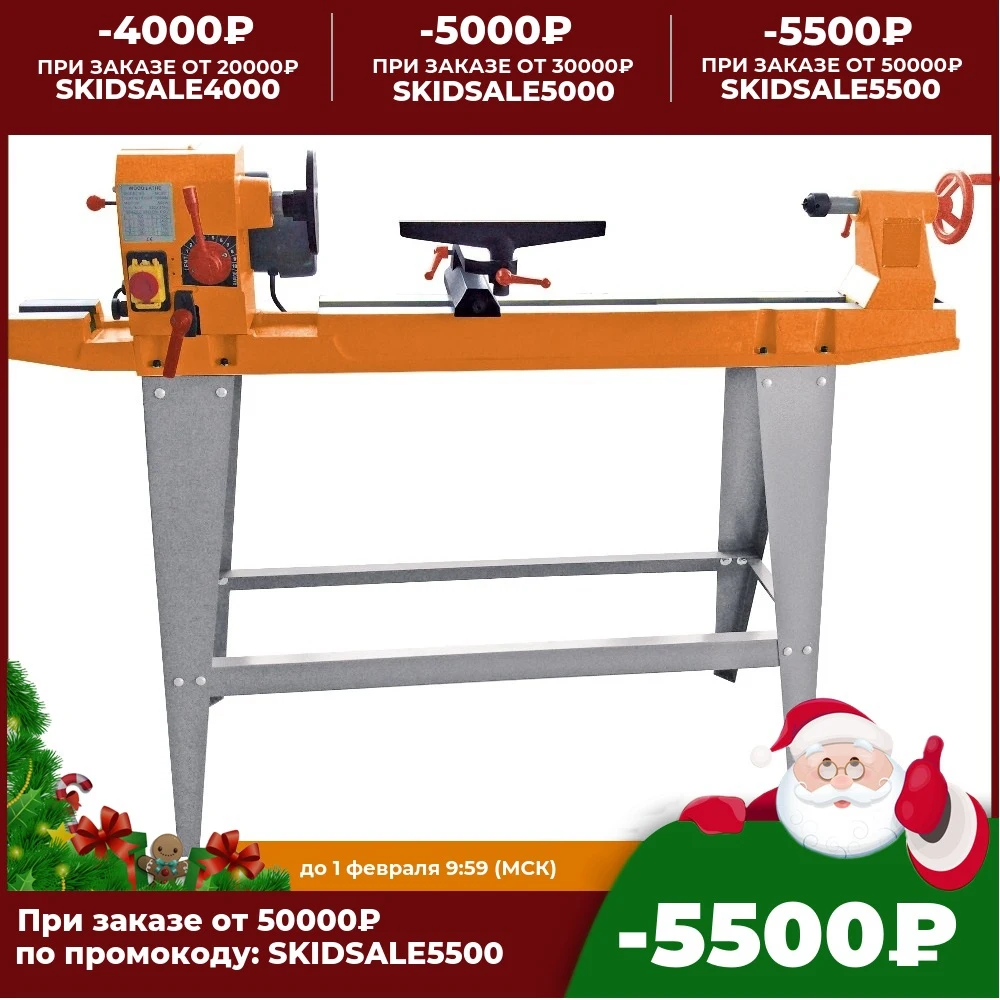

Turning Machine Kraton WML-1100-750 4 01 02 007 woodworking machines tool Benches Machinery Tools | Инструменты

The machine is designed for processing parts from wood with surfaces that have the form of bodies of rotation by the method of turning, grinding, polishing. In this case, the treated surface may be external or internal, cylindrical, conical or complex, formed by a combination of different curves. Belt transmission protects the engine from overloads. 10 steps of setting the spindle speed with a mechanical variator. The possibility of turning the front headstock around the vertical axis when turning large diameter billets.   Basic technical data: Rated Power: 750W Spindle speed of the machine at idle speed: 500/620/760/900/1050/1210 / 1400/1590/1790/2000 минˉ¹ Number of spindle speed settings: 10 Spindle speed control: mechanical variable speed Headstock rotation angle: 0 °, 60 °, 90 °, 120 ° and 180 ° The maximum length of the workpiece is 1092 mm Maximum diameter of the workpiece over the machine bed: 355 mm Overall dimensions: 1710 × 475 × 1158 mm Weight: 92 kg Multiplicity of packing: 1-1-1   Completeness: Woodworking lathe: 1 pc. The center is notched: 1 pc. Car key: 1 pc. Hexagon key: 3 pcs. Instruction manual: 1 pc. Cardboard box: 1 pc.
