Характеристики
Записывающее устройство Dahua XVR5104HS-I3 4CH & XVR5108HS-I3 8CH XVR5116HS-I3 16CH WizSense XVR поддерживает до 6Мп IP-камер и 5Мп HDCVI.
Описание товара
4 Channel Penta-brid 5M-N/1080P Compact 1U WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
> Up to 2 channels video stream ( analog channel ) Perimeter Protection
> Up to 4 channels video stream ( analog channel ) SMD Plus
> Up to 1 channel video stream (analog channel ) human face recognition
> IoT & POS functionalities
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Perimeter Protection
Performance
2 channels, 10 IVS for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and intrusion
AI Search
Search by target classification (Human, Vehicle)
Face Recognition
Performance
Max 8 face pictures/sec processing
1 channel video stream face recognition, only support analog camera
Stranger Mode
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management
Up
to 10 face databases with 10,000 face images in total. Name, gender,
birthday, address, certificate type, cerificate No., countries®ions and
state can be added to each face picture.
Database Application
Each database can be applied to video channels independently .
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance
4 channels
AI Search
Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input
4 channels, BNC
HDCVI Camera Input
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input
PAL/NTSC
IP Camera Input
4+2 channels, each channel up to 6MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
AI Coding/H.265+/H.265/H.264+/H.264
Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate
32 Kbps–6144 Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled:1/4
When IP extension mode enabled:1/4/6
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100 MB)
Network Function
HTTP,
HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play,
Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File,
Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (USB 2.0)
RS485
1 Port, for PTZ Control
RS232
N/A
Electrical
Power Supply
DC 12V/1.5A
Power Consumption
(Without HDD)
<4W
Construction
Dimensions
Compact 1U, 260 mm × 238 mm × 48 mm
(10.24'' × 9.34'' × 1.87'')
Net Weight
(without HDD)
1.0 kg (2.2 lb)
Gross Weight
1.4 kg (3.1 lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions
-20°C to +70°C (-4°F to +158°F), 0–90% RH
Third-party Support
Third-party Support
Dahua,
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor,
Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
8 Channel Penta-brid 5M-N/1080P Compact 1U WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
> Up to 2 channels video stream ( analog channel ) Perimeter Protection
> Up to 8 channels video stream ( analog channel ) SMD Plus
> Up to 2 channels video stream (analog channel ) human face recognition
> IoT & POS functionalities
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Perimeter Protection
Performance
2 channels, 10 IVS for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and intrusion
AI Search
Search by target classification (Human, Vehicle)
Face Recognition
Performance
Max 8 face pictures/sec processing
2 channels video stream face recognition, only support analog camera
Stranger Mode
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management
Up
to 10 face databases with 10,000 face images in total. Name, gender,
birthday, address, certificate type, cerificate No., countries®ions and
state can be added to each face picture.
Database Application
Each database can be applied to video channels independently .
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance
8 channels
AI Search
Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input
8 channels, BNC
HDCVI Camera Input
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input
PAL/NTSC
IP Camera Input
8+4 channels, each channel up to 6MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
AI Coding/H.265+/H.265/H.264+/H.264
Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate
32 Kbps–6144 Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled:1/4/8/9
When IP extension mode enabled:1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100 MB)
Network Function
HTTP,
HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play,
Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File,
Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 10TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB Ports (USB 2.0)
RS485
1 Port, for PTZ Control
RS232
N/A
Electrical
Power Supply
DC 12V/2A
Power Consumption
(Without HDD)
<7W
Construction
Dimensions
Compact 1U, 260 mm × 238 mm × 48 mm
(10.24'' × 9.34'' × 1.87'')
Net Weight
(without HDD)
1.1 kg (2.5 lb)
Gross Weight
1.5 kg (3.3 lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions
-20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support
Dahua,
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor,
Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

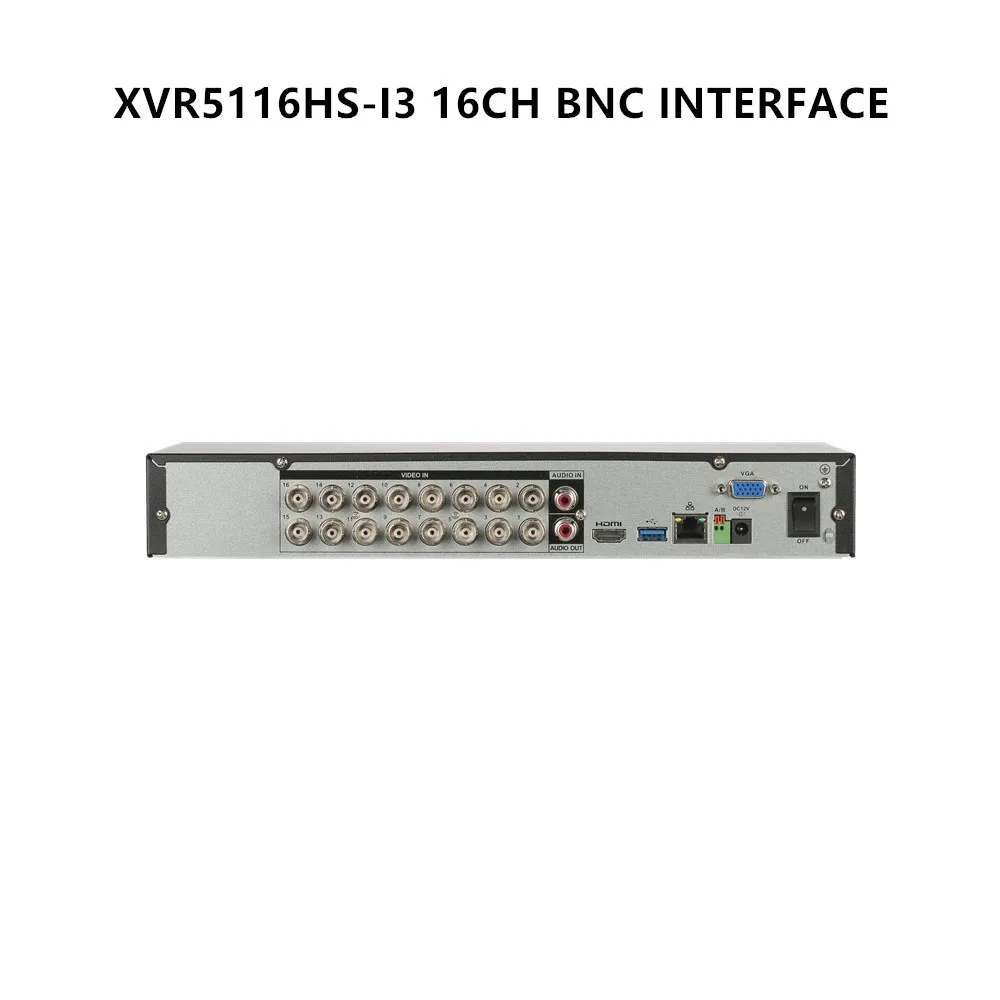

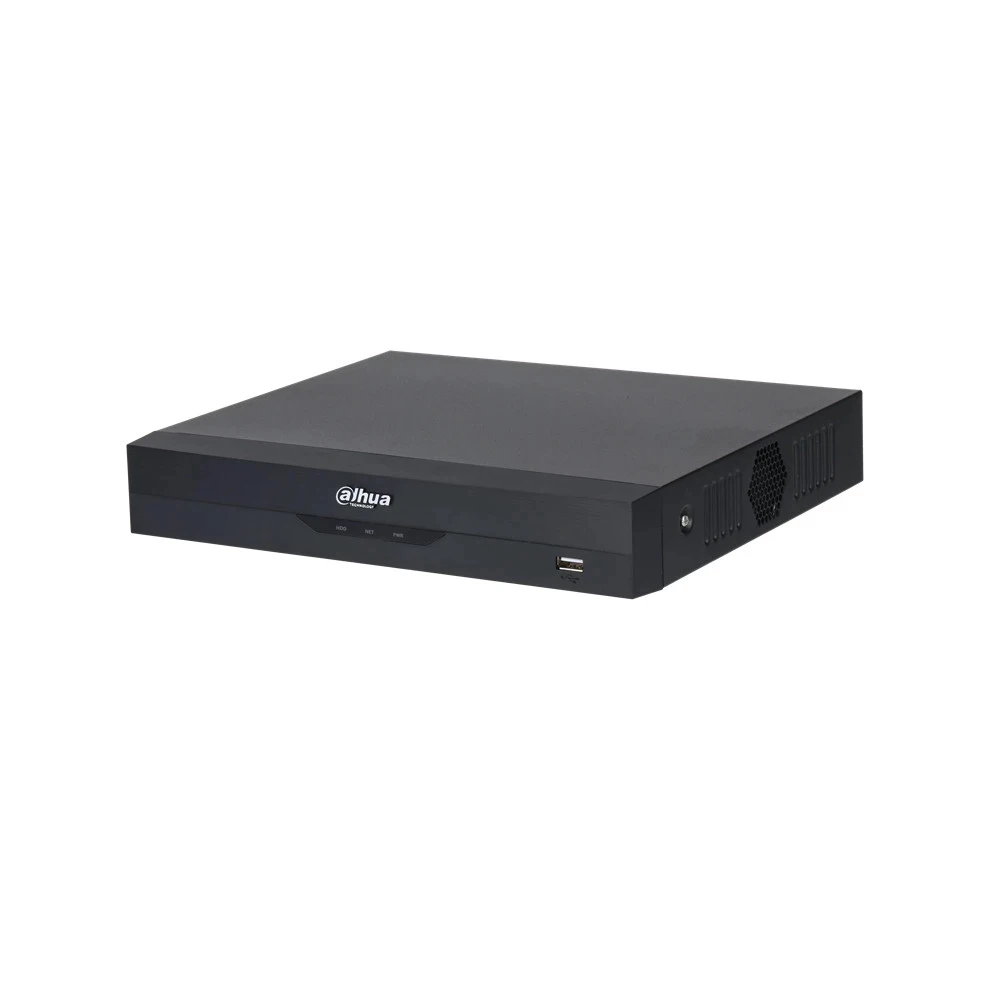

16 Channel Penta-brid 5M-N/1080P Compact 1U WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
> Up to 2 channels video stream ( analog channel ) Perimeter Protection
> Up to 16 channels video stream ( analog channel ) SMD Plus
> Up to 2 channels video stream (analog channel ) human face recognition
> IoT & POS functionalities
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Perimeter Protection
Performance
2 channels, 10 IVS for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and intrusion
AI Search
Search by target classification (Human, Vehicle)
Face Recognition
Performance
Max 12 face pictures/sec processing
2 channels video stream face recognition, only support analog camera
Stranger Mode
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management
Up
to 10 face databases with 10,000 face images in total. Name, gender,
birthday, address, certificate type, cerificate No., countries®ions and
state can be added to each face picture.
Database Application
Each database can be applied to video channels independently .
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance
16 channels
AI Search
Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input
16 channels, BNC
HDCVI Camera Input
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input
5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input
PAL/NTSC
IP Camera Input
16+8 channels, each channel up to 6MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
AI Coding/H.265+/H.265/H.264+/H.264
Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate
32 Kbps–6144 Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display
When IP extension mode not enabled:1/4/8/9/16
When IP extension mode enabled:1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (1000 MB)
Network Function
HTTP,
HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play,
Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File,
Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 10TB capacity
eSATA
N/A

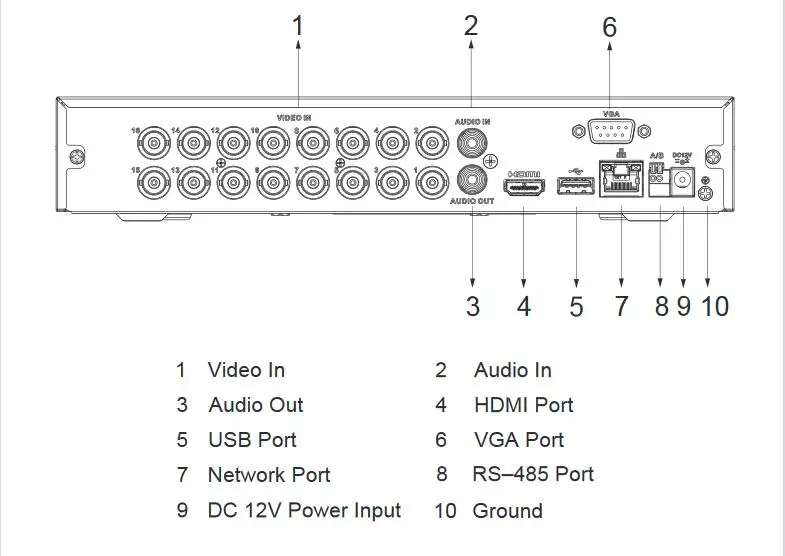

Auxiliary Interface
USB
2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485
1 Port, for PTZ Control
RS232
N/A
Electrical
Power Supply
DC 12V/2A
Power Consumption
(Without HDD)
<12W
Construction
Dimensions
Compact 1U, 260 mm × 238 mm × 48 mm
(10.24'' × 9.34'' × 1.87'')
Net Weight
(without HDD)
1.0 kg (2.2 lb)
Gross Weight
1.4 kg (3.1 lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions
-20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support
Dahua,
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor,
Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Трекер стоимости
Отзывы покупателей
Новые отзывы о товарах
Настя 18 Декабря 2021, 15:15 #
Выглядит эта одежда довольно-таки сексуально и эротично. Я решила себе прикупить такой комплект - и осталась в полном восторге! Одежда... Читать отзыв полностью...
Ирен 19 Декабря 2021, 12:44 #
Несколько недель назад узнала об этом сайте от моей подруги. Она заказывала джинсы с принтом и решила сэкономить и как-то... Читать отзыв полностью...
Даша 18 Декабря 2021, 11:30 #
Я купила себе недавно эти часики, и вообще нарадоваться не могу) Они довольно-таки красивые. этого не отнять! Да и к... Читать отзыв полностью...
Яро Славна 20 Декабря 2021, 11:18 #
Джинсовые курточки - моя давняя любовь, но именно эта превзошла все ожидания. Привлекла необычным дизайном, свободный крой и шнуровка на... Читать отзыв полностью...
Макс 20 Декабря 2021, 09:42 #
В моей Митсубиси сломался старый подлокотник, так что искал новый. И эта модель мне подошла прям идеально! Заказал - всё... Читать отзыв полностью...
Макс 19 Декабря 2021, 12:38 #
Клёвая футболка, для фанатов Теории Большого Взрыва вообще подойдёт идеально) Да и качество у неё хорошее, ничего не рвётся, не... Читать отзыв полностью...
Очень крутые джинсы, отлично сидят на фигурке, лично мне импонирует защитный окрас, ткань не тонкая, достаточно плотная, но при этом... Читать отзыв полностью...
