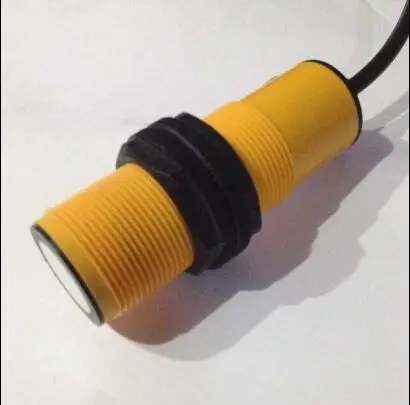

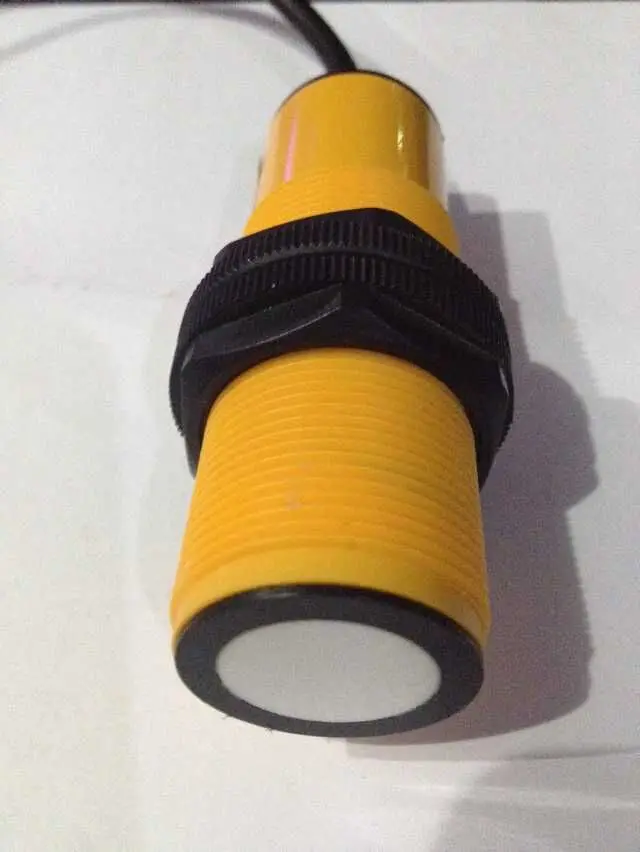

Приемопередатчик 180 кГц встроенный высокочастотный и Высокоточный

Приемопередатчик 180 кГц встроенный высокочастотный и Высокоточный

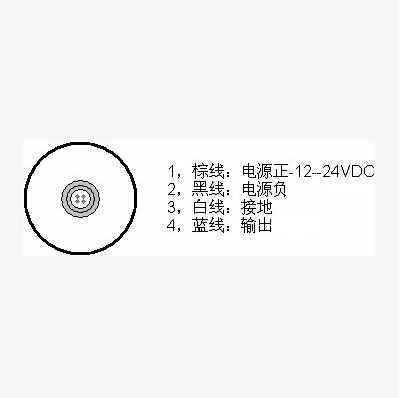

2、Connection mode：

Brown line：Power supply positive--12or24V

Black line：Power supply negative

White line：earth

      blue line：signal output

3、Scope of application .Material level measurement .Adjacent area measurement .Anthropometry .Robot ranging sensor .automatic pilot .Multi sensor navigation .Distance measurement .Industrial Sensors

4、output signal：0-5V.0-10V，NPN,PNP

5、Product features：

   Direct detection mode；The distance signal is obtained by the time difference between transmitting ultrasonic signal and feedback signal，It is processed by high-speed chip and converted to the required signal or voltage。

6、technical parameter：

 Product model

LM-180-015-DAC(NPN,PNP)

measuring range

100~1500mm

blind area

100mm

Standard test board

30x30cm

Sensor frequency

180KHz

working voltage

12or24V DC

Output mode

0-5V，0-10V，NPN、PNP

working temperature

-20°C~+60°C

Storage temperature

-40°C~+80°C

Lead length

2rice（In case of lengthening，Additional wire charges are required）

Shell material

ABSengineering plastic

measurement accuracy

Millimeter scale

Note：Beam angle10degree，Up and down5degree，The measurement range can be adjusted according to customer's requirements0.1-2Custom made in Rice，such as0.1 -1.0rice，01-2.0Rice, etc。
