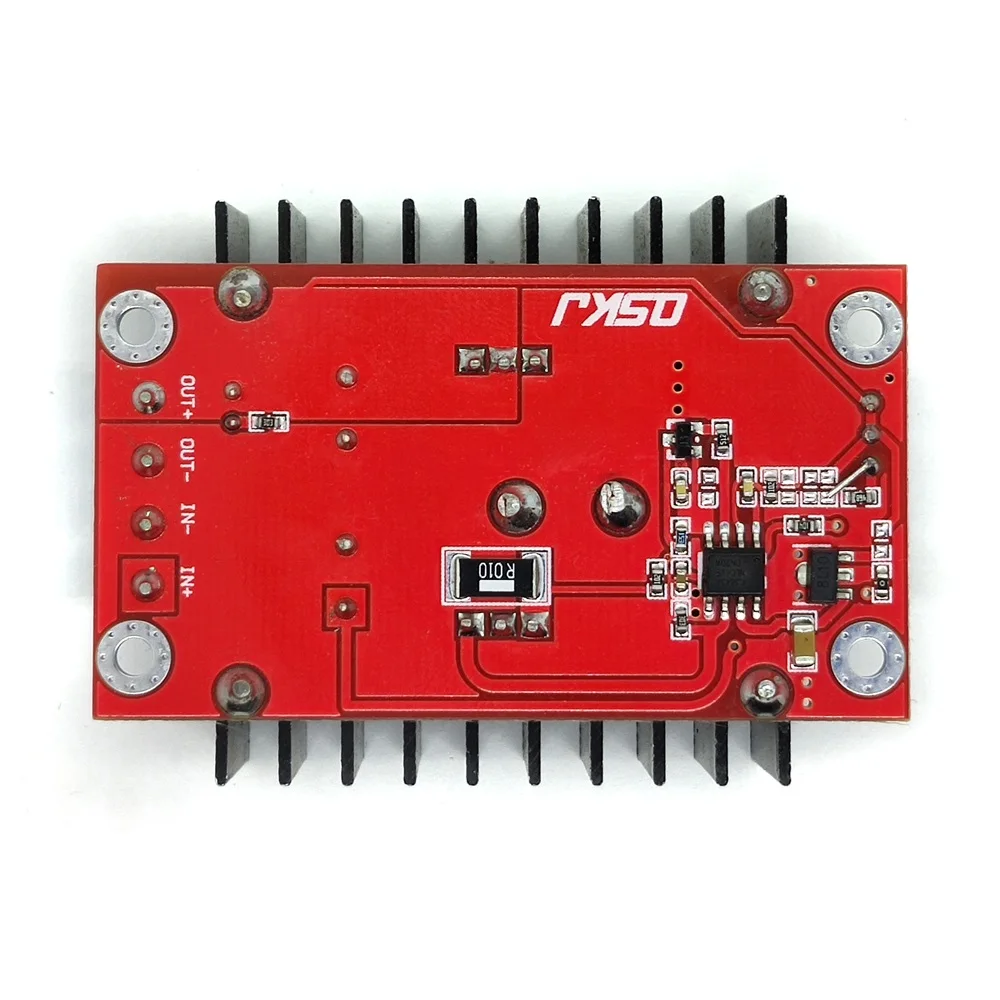

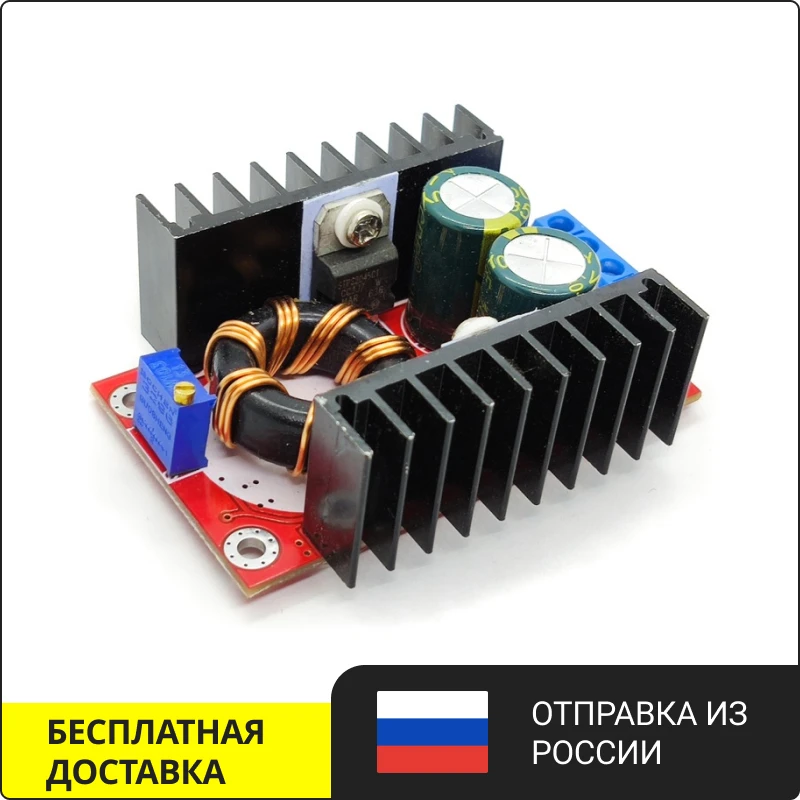

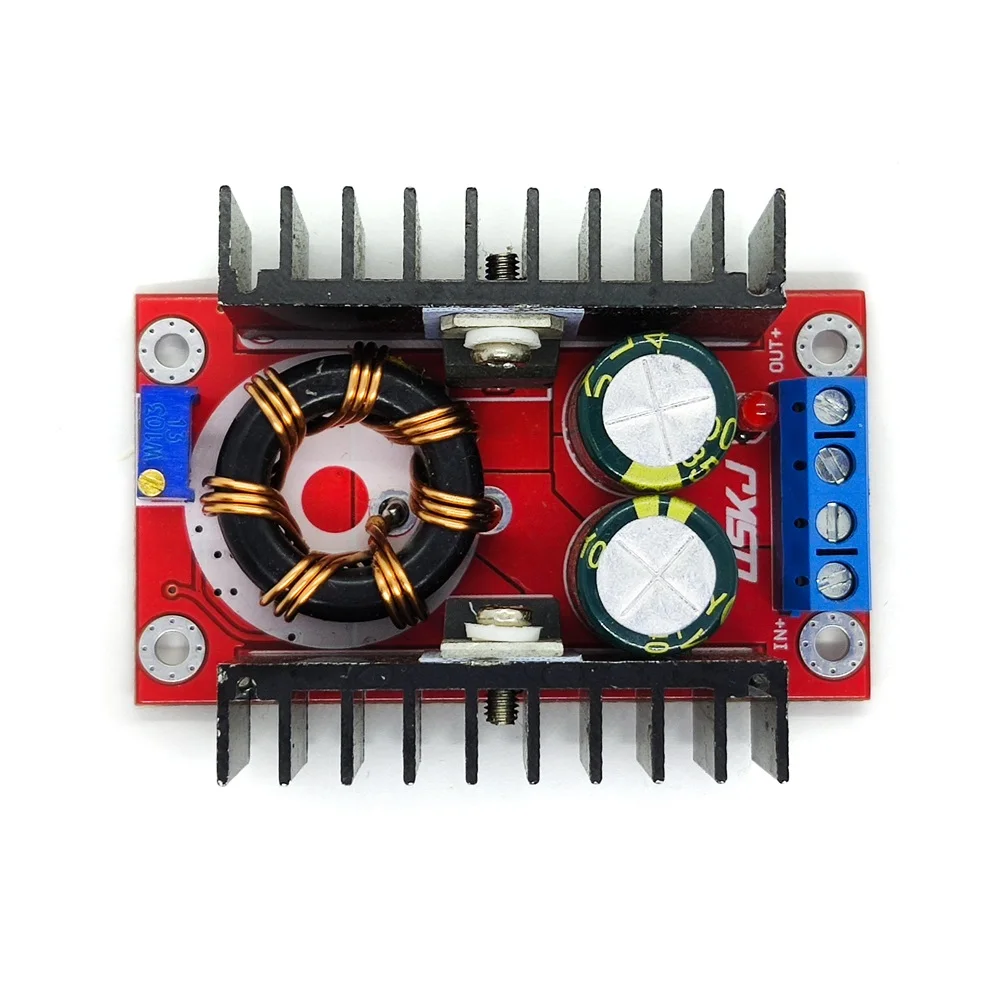

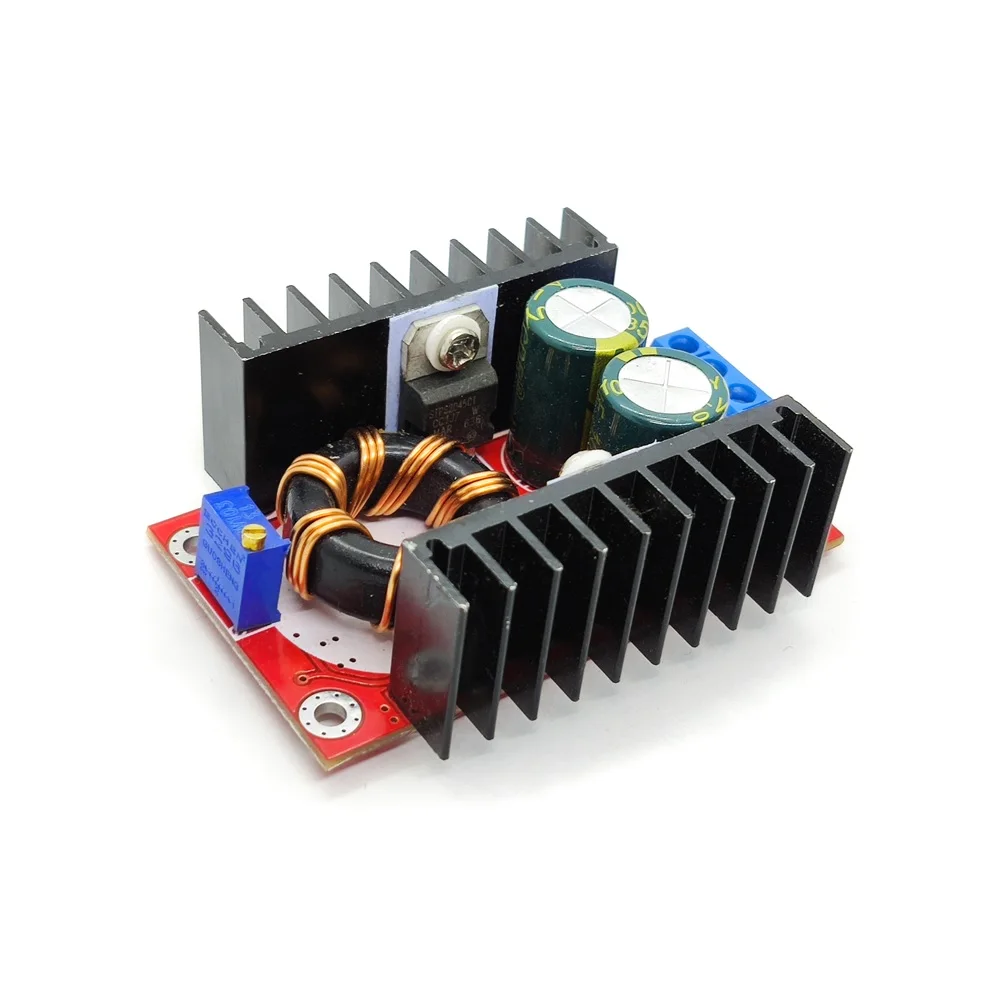

Boost DC-DC 150 W converter (10-32v to 12-35v)

The boost DC-DC converter allows you to convert the constant input voltage from 10 -32 V to 12 - 35 V at the output. The converter has high efficiency.

Specifications:

Input voltage: 10-32 V

Output voltage: 12-35 V (adjustable)

Output Current: 6A

Input current: 10A, up to 16A with improved cooling

Output power: 100 W, up to 150 W with improved cooling

EFFICIENCY: 94%

Size: 65 х56. 5 х23mm

Short-circuit protection at output: No (need to install fuse against output circuit, 6A current).

Connection:

The input voltage of the power supply is fed to the + in and-in conclusions, either through the terminal terminal mounted on the converter board or through contact sites with holes. When connecting the power, be careful, the stabilizer does not have reverse polarity voltage protection at the input.

The output voltage of the power supply is removed from the + out and-out pins, either through the terminal terminal mounted on the converter board or through the contact sites with the holes. When connecting the load, be careful, the stabilizer has no protection against short circuit output.

When adjusting the potentiometer, use the multimeter to control the voltage.

Clockwise rotation increases, counterclockwise rotation-lowers.

If the output voltage of the module can not be adjusted (the output voltage is always equal to the input voltage), adjust the potentiometer counterclockwise at 20 rpm or more until the output voltage is is

Application:

The module can be used to increase voltage for car amplifiers, for charging 12-34v batteries, in solar energy and for other purposes.

Package Contents:

Boost DC-DC converter 150 W (10-32v to 12-35v), 1 PCs
