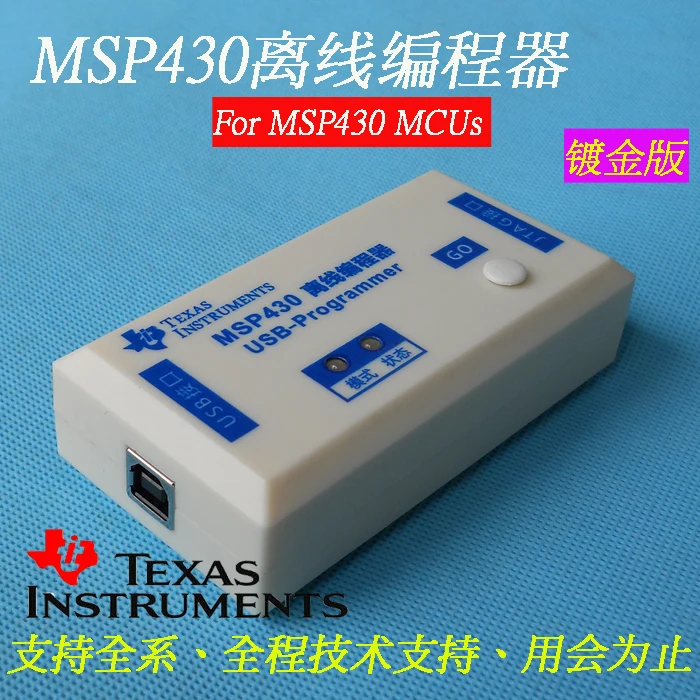

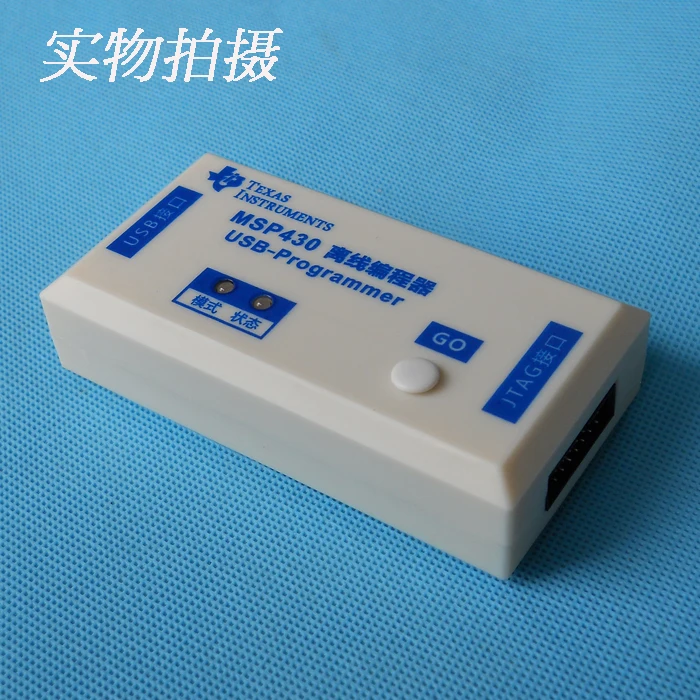

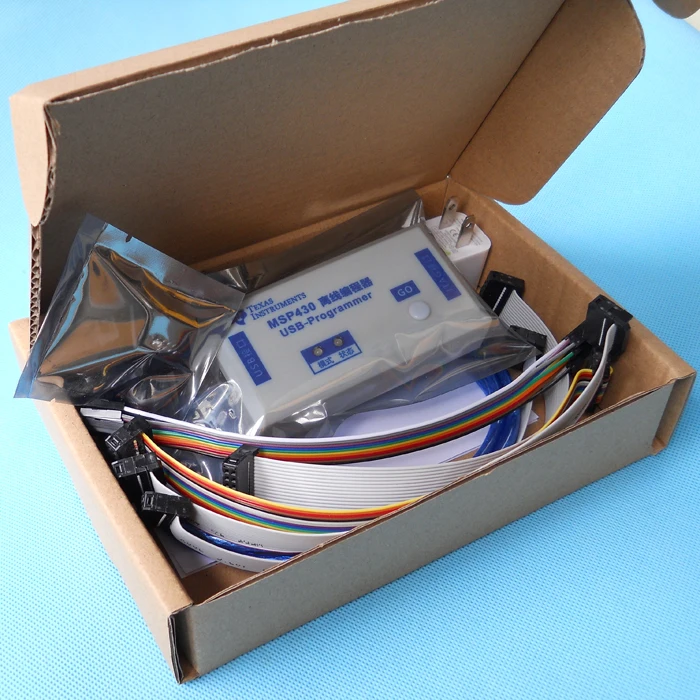

MSP430 offline batch programmer. It is suitable for mass production and writing of MSP430 MCU.

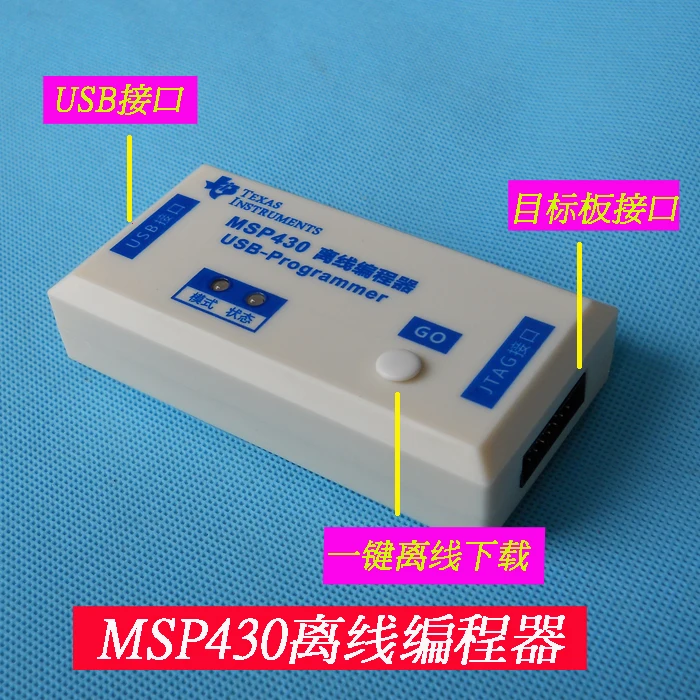

Easy-to-use USB interface, 300,000 high-quality copper keys, one-click download of programs.

Multi-function programming download, multi-interface support:

Three kinds of interfaces are available, support MSP430 target board and chip with BSL/JTAG/SBW interface.

such as:

The F1 series has only four-wire JTAG and BSL, no SBW;

F5, F6 and other series have three kinds of interfaces, but all interfaces with chips support programming download.

However, if the chip is encrypted, the chip cannot be accessed through JTAG, and the chip program can only be read through the BSL method or when the password is known. Of course, if the chip only has a JTAG port without a BSL port and the fuse is blown, then it cannot be programmed again, only to replace the new chip.



98*52*28MM

MSP430 programmer downloads programming for all MSP series chips (including but not limited to):

CC430X5XX, CC430X6XX, MSP430F1XX, MSP430F2XX, MSP430F3XX, MSP430F4XX, MSP430F5XX, MSP430F6XX, MSP430FR2XX, MSP430FR4XX, MSP430FR5XX, MSP430FR6XX, MSP430FW4XX,XXXX, MSP430MSFW4XX, XX, MSP430P430FW4XX, MSP430P430FW4XX, XXG, etc. all available!

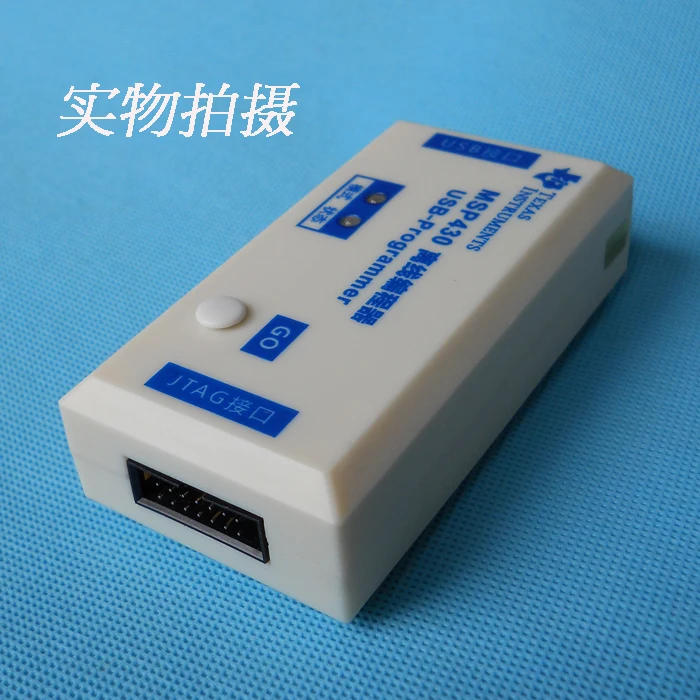

The MSP430 programmer can program and download programs online or offline for the full range of MSP430 FLASH MCU chips through the target board or user board. Easy-to-use USB interface design, fully compatible with TI's official standard 14-pin JTAG interface. It has the characteristics of supporting multiple chips, fast batch programming, supporting fuse encryption, and convenient carrying.

1. Support MSP430 series CC430 series FR, G series and many other 430 chip series models.

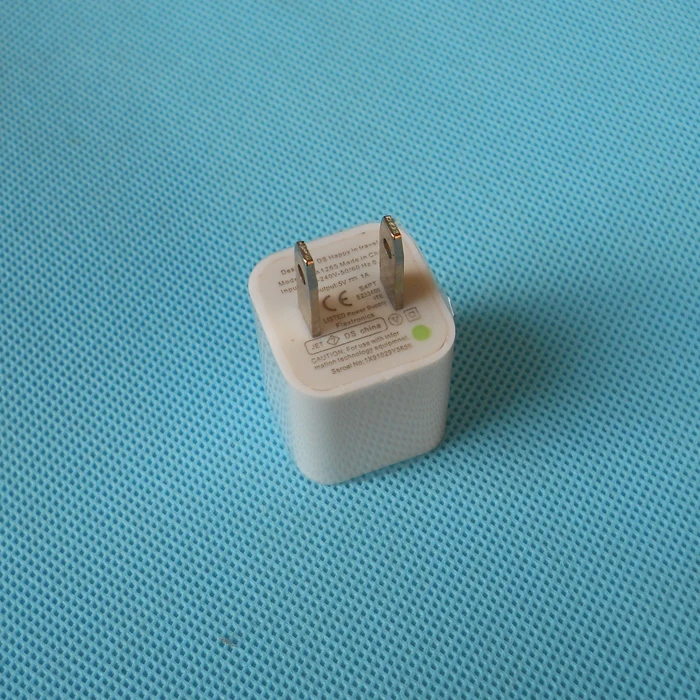

2. Support online burning, offline burning (offline only needs 5v power supply, no need to use a computer).

3. Support fuse blowing encryption function. (Support SBW method and JTAG method to burn fuse at the same time).

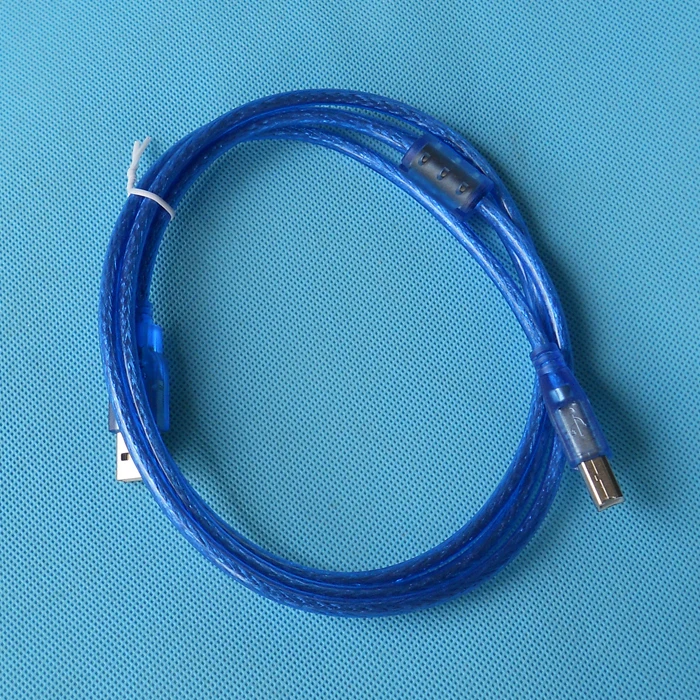

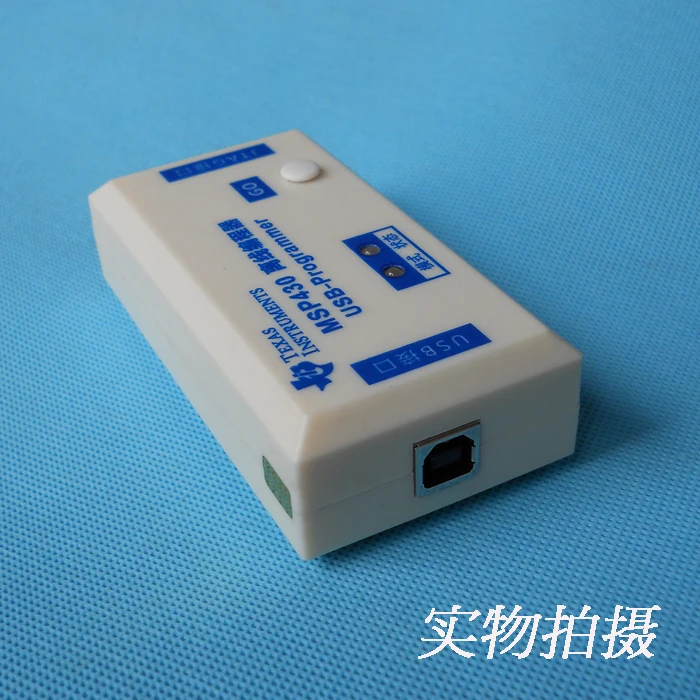

4. Plug-in USB communication and power supply. Convenient and easy to use, good versatility.

5. Simultaneous support for voice prompts and LED status prompts, visually indicating the download progress.

6. Support firmware upgrade, and later develop a new version to provide free version upgrade service.

7. Support SBW/JTAG/BSL programming download in three ways at the same time.

8. Small size and easy to carry, adopt good substrate and component design.

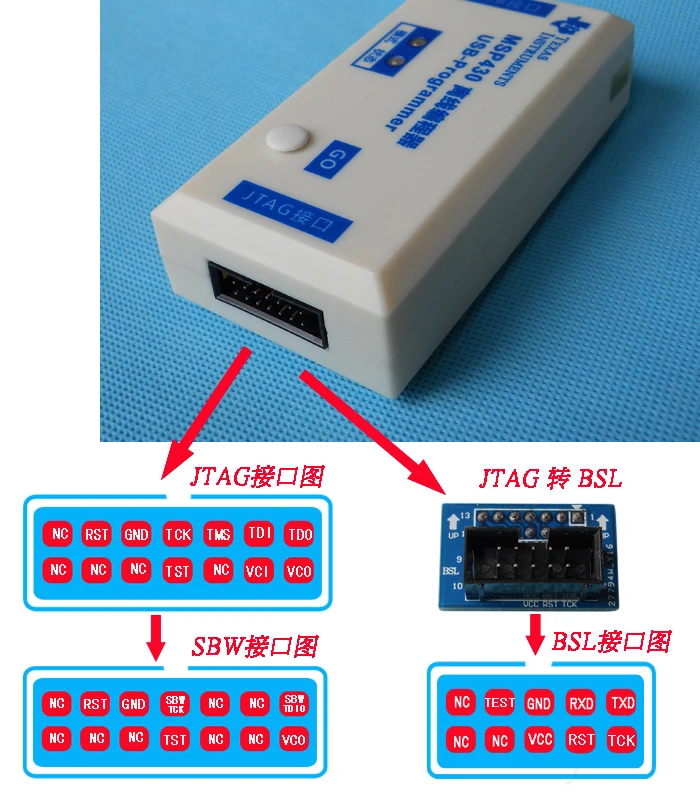

Programming device four-wire mode download wiring method:

Programming device two-wire SBW mode download wiring method:

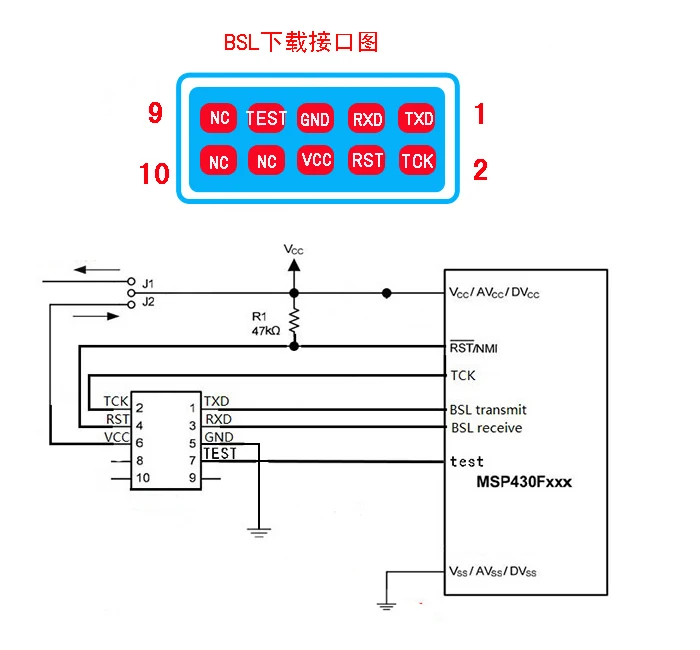

Programming device BSL mode download wiring method:

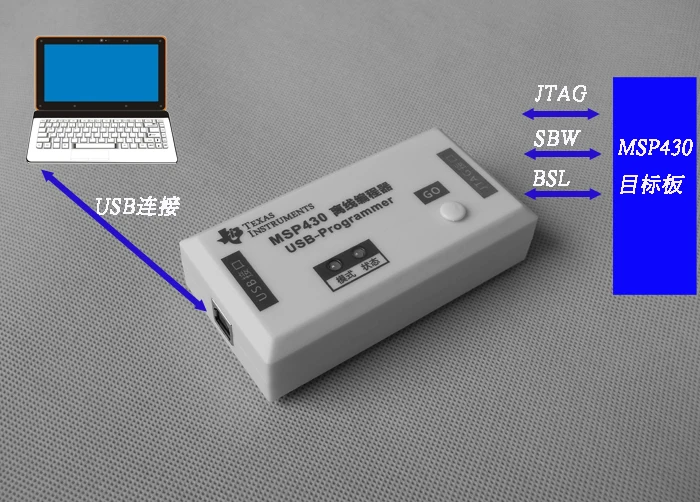

Electrical connection relationship between devices:
