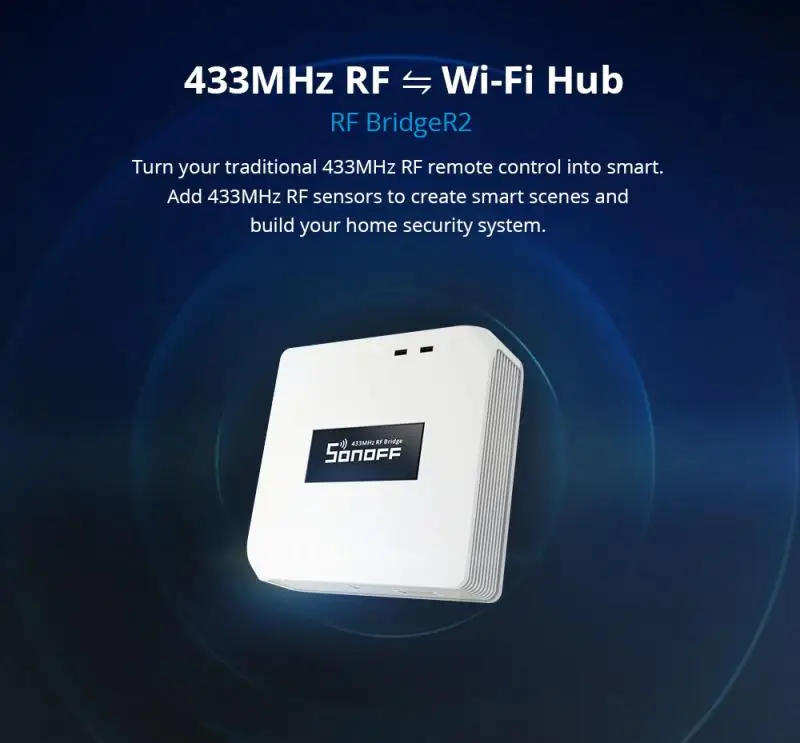

RF BridgeR2 433 Smart Hub Description:

This RF BridgeR2 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, You can add up to 16 RM433 RF or alarms, also add them together (max. 16 items). One 4 button remote controller can learn 4 devices, which means 64 devices supporting 433 MHz frequency can be added on the app through WiFi/2/3/4G network.

It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.

Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner's account, those users being shared can't view the alarm push.

The RF BridgeR2 can work with SONOFF DW2-RF wireless door/window sensor that allows users to set the smart scene for the sensor and the device to be controlled, then when you open/close the door, the device will be triggered on or off.

Specifications:

【RF433MHz And Wi-Fi Protocol Supporting】Help 433MHz RF devices to communicate with WiFi devices, extend the smart home ecosystem.

【Strong Connectivity, Limitless Possibility 】The bridge supports adding RF 433MHz devices up to 64 that SONOFF has released, like PIR3-RF PIR Motion Sensor and DW2-RF Wireless Door/Window Sensor, making your home smarter.

【Compatible With 433MHz Remote Controller & Easy Management】Having dozens of RF433MHz devices and troubled in control them in a mess, this RF BridgeR2 will help you get rid of it. Just migrate them to your phone. With Compatible with 433MHz remote controller for easier control. You can add up to 16 devices and up to 64 buttons.

【RF Alarm & Trigger Smart Scenes】Can add alarms to trigger the device by setting a smart scene. For example, once the door is opened (Matched with DW2 door/window sensor), you will receive a notification with your lights on automatically.

Package Included:

1*RF BridgeR2 433 Smart Hub

Notes:

Note 1:

The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.

The product doesn't support to learn rolling code and dynamic code

You can't see device status changes in the App.

Note 2:

What's new on Android & iOS 2.5.0 and higher versions?

Scheduled/countdown timers are supported.

iOS App supports to add this product.

433MHz RF curtain switch and RF alarm are supported.

T2EU-RF 86 Type Sticky switch 433Mhz Description:

Does the 433MHz wireless stick-on smart switch is the extended new collection of SONOFF best-selling TX series Wifi Wall Smart Switch? None. It remains the comparable look with TX series to your home style modern and artistic, and is actually a 433MHz remote control.

Does your house have hard-to-reach light switches? Or is the light switch at the end of a dark corridor conveniently reached for operation of controls at night? If that's true, you're competing a removable remote for your lighting.

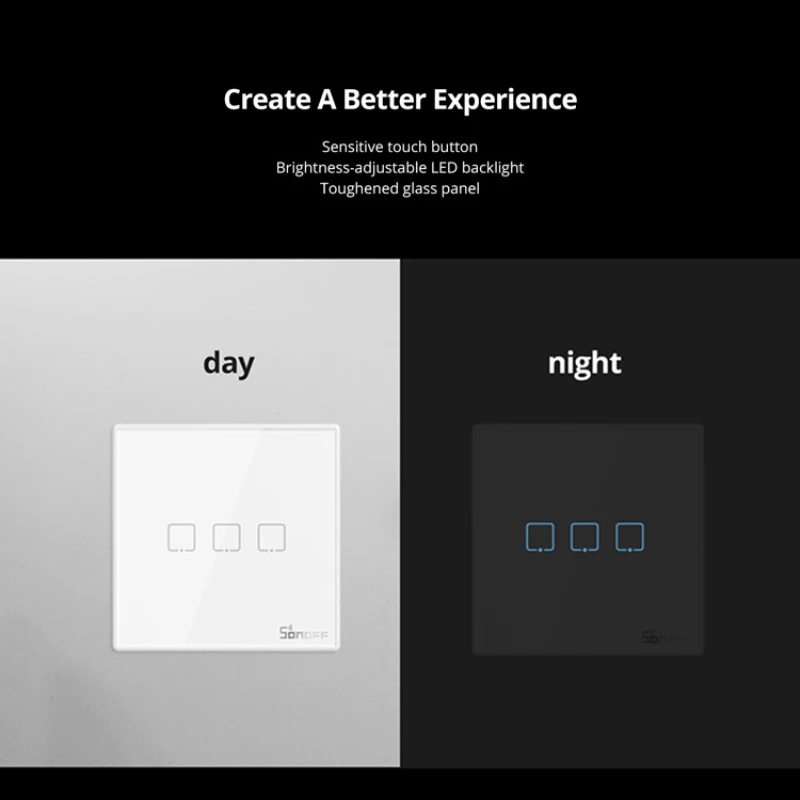

The 1/2/3-mode remote control works like other regular light switches but add the possibility to control the connection lights from a distance, and no need to use wire, just stick on it. The multiple modes you can realize two remote control solutions, a SONOFF remote control for control multiple lights controlled and several SONOFF remote controllers for a light controlled. Plus, the remote control can be used to connect to SONOFF T1/T2/T3 wall switch to two controls. It is also used for RFR2, RFR3, 4CHPROR3 and SlampherR2 which provides you with a more control mode than for APP remote control and voice control. The background lighting is designed on the touch button to give you a clear location around the lights at night. The absorbent energy from light determines the brightness of backlight, the more energy absorbs, the higher the brightness. Three use methods can be chosen from stick-on, screw-on and desk top.

Give you a more option on the light control. As a 433MHz RF switch, it can match the SONOFF TX wall switches that can light you from two different positions without needing wiring.

Check more lights from one position. Just like a universal remote control, the RF switch with multiple channels you can light one or more lights, which each channel can be used for a light.

If the 433MHz RF protocol is compatible with patial SONOFF smart devices, the RF switch can be used to remotely control them as a common remote control.

Specifications:

Model: T2EU1C-RF; T2EU2C-RF; T2EU3C-RF;

Gang: 1 Gang, 2 Gang, 3 Gang;

RF: 433MHZ;

Colour: White;

Feeding: 6v(3v button * 2);

Distance distance: >50m(open space);

Package Included:

1*T2EU-RF 86 Type Sticky switch 433Mhz

433MHZ RF PIR motion sensor Description:

The difference with SONOFF PIR2 RF motion sensor is that PIR3-RF has a small and compact size, easy to be used in almost any position to detect the movement.

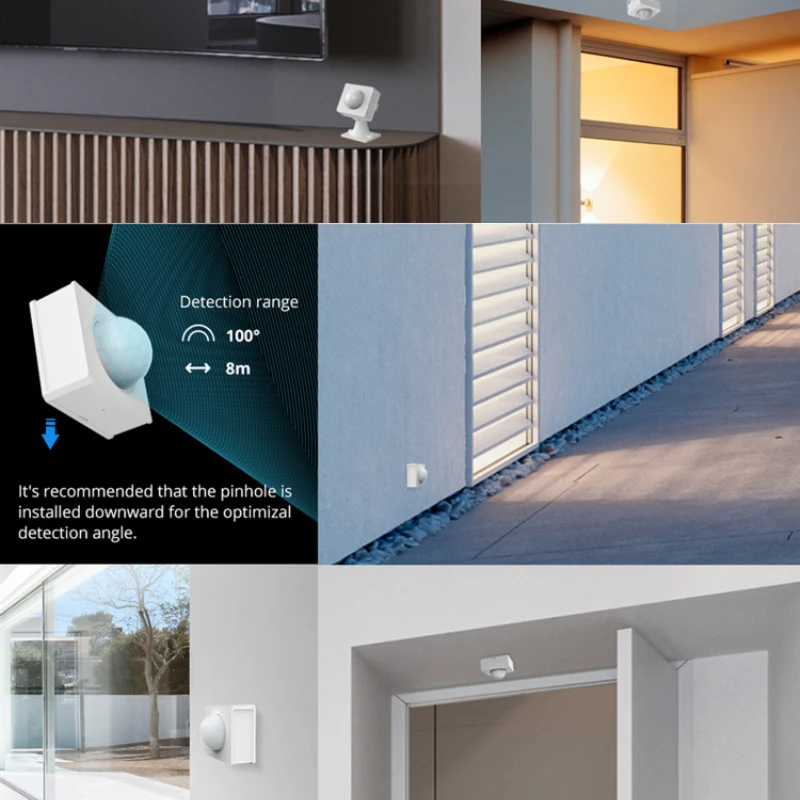

SONOFF PIR3-RF motion sensor can detect and report motion. When used for your home security system, it can detect the movement within 8M and help identify whether a human or pet is moving around inside your house, and your mobile phone will receive an alert notification. Connect SONOFF camera and you can view who is the intruder. When incorporated into your smart lifestyle, the sensor triggers your light on or off after connecting with SONOFF RF Bridge. You can set a scene that the hallway light is turned on when you enter the door.

With the universal joint, the sensor can be flexible to rotate a full 360°horizontal angle and 90°vertical angle which allows you to adjust the sensor into an optimal angle to view everything in your home (The sensor doesn’t move on its own based on your motion). Another convenience for your home is that you can use the sensor for a position where the movement is not easy to be detected via mounting it in the universal joint, and just rotate the universal joint head to get a wonderful detecting angle. Plus, you can directly stick the sensor on the surface of objects to detect the movement. Just choose one as you like.

PIR3-RF has 2 working modes that alert and normal mode. In the alert mode, the sensor is triggered per 5s when someone enters the detection range. In the normal mode, the next alert trigger is activated if there is no motion detected within 1min after the previous detection.

Specifications:

【Motion Sensor & Camera Binding】Alarm notification, by binding a camera, monitor your home on the double insurance.

【Alert Mode/Normal Mode】Two built-in modes which are two different trigger time mechanisms to meet your needs in different scenes.

【Smart Scenes】Set the smart scenes based on your needs, trigger more devices/scenes.

【Easy Installation】3M adhesive or screw mounting (universal joint).

【Note】Batteries are not included in the package.

Package Included:

1*433MHZ RF PIR motion sensor

Notes:

1. The PIR3-RF sensor requires SONOFF 433MHz RF Bridge to work.

2. The universal joint is not included, please purchase it separately.

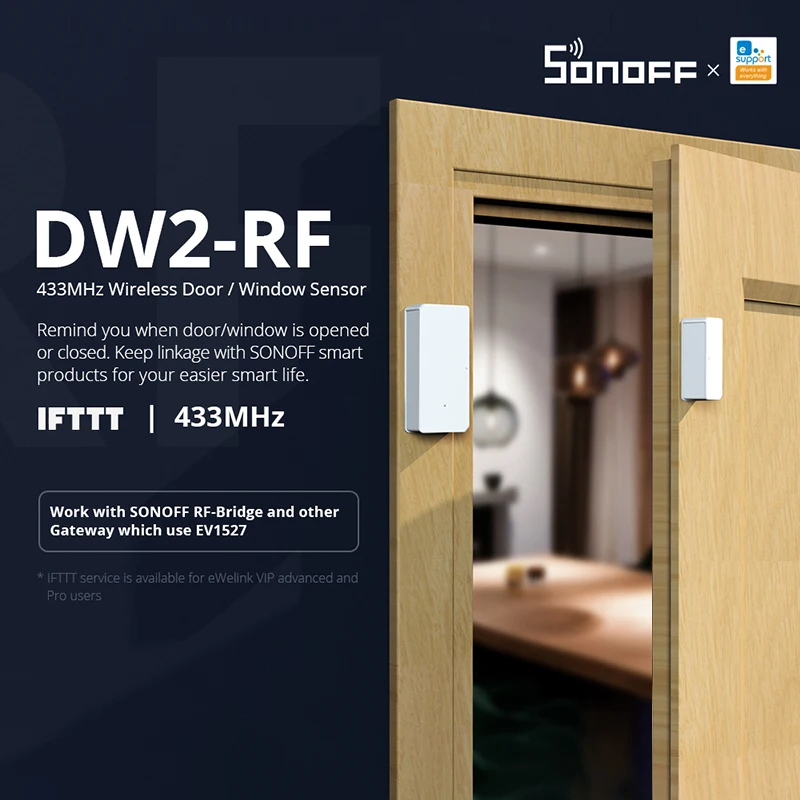

DW2-RF - 433MHZ RF Wireless Door Description:

Description:

Doors and windows as the entrances and exits are the weakest points of your home. An unsecured door or window is like an obvious “WELCOME” sign, to a burglar, so door/window sensors are also known as “entry sensor”. As one of the most popular home security devices, DW2-RF wireless door/window sensor is enough smart to get you to know whether your door or window is open, and it can not only send you alert notifications, but also make you know when the entrance point is opened, making sure your home is safe.

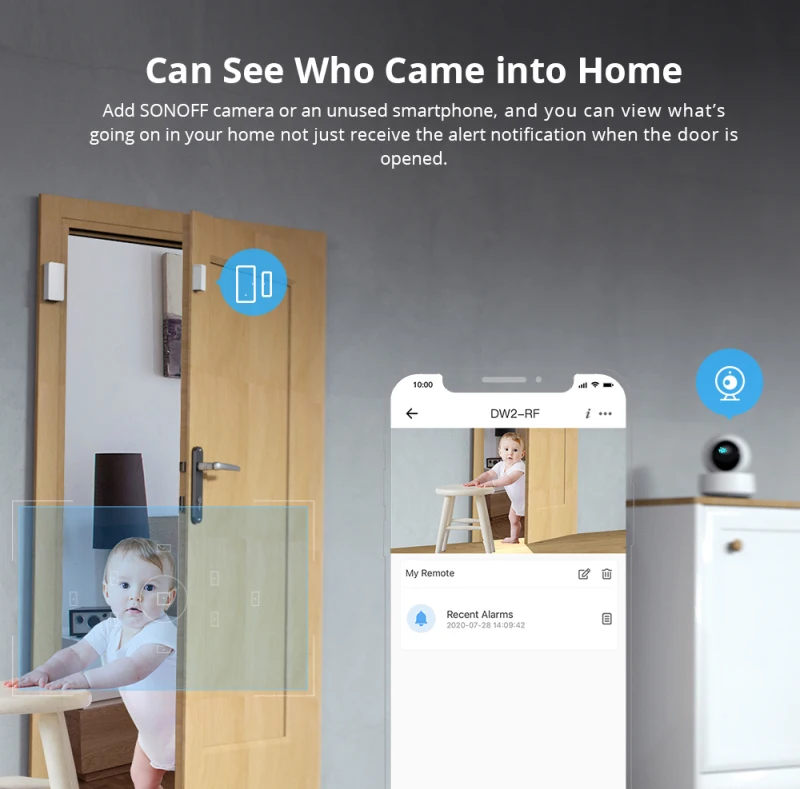

More importantly, the sensor allows you to add  or old smartphone to view who is entering your home, providing you with more details and notes about the uninvited guest. Can sync the opening and closing status of door/window to app which gives you a peace of mind when you’re not at home. History records check can be traced back to the last 3 months and this can help you look back and check the condition of your home at that time. Lights are triggered in the action. You can set the linkage in the smart scene of the eWeLink app to connect the sensor and your light so that you can open or close the door to trigger the hallway light on and off. The  is required for making this linkage possible. Combines with IFTTT service, the sensor can be used to trigger more devices or routines. This “device sharing” feature is for letting more of your family know your home is secure. After sharing the sensor, all of the shared users will receive the alert about the condition when someone opens the door. The sensor is 3M adhesive installed, easy to move and remove. It can work just fine upside down and sideways, as long as the magnet is less than 5mm from the sensor, which makes no difference how the sensor is located. It’s battery operated and has a low power consumption that ensures the battery life can last up 2 years.

Send the alert to your smartphone when the door/window is opened

Open and close the door to trigger lights on/off

Sync the opening and closing status of window/door to app

Compatible with IFTTT service to set more routines

Share the sensor to make more users know the status of home

Can check history records last 3 months

Low power consumption technology maximize the battery life - up to 2 years

Easy to install and remove

Overview

Specifications:

Working Voltage: DC12V (Model: 27A 12V);

RF: 433MHZ;

Emission current: ≤ 20 mA;

Quiescent current: ≤ 1.5 uA;

Wireless Transmission distance: Max. 50m;

Material: PC V0;

Package Included:

1*SONOFF DW2-RF - 433MHZ RF Wireless Doo

Notes:

Note: SONOFF DW2-RF doesn’t come with batteries into package.
