HW-573 NodeMCU-32S Lua WiFi IoT Development Board Serial Module for ESP32(2Pcs) | Игрушки и хобби

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 1. "NodeMCU-32S" is based on the ESP-32S module. This platform uses many open source projects, such as lua-cjson, spiffs. "NodeMCU-32S" contains firmware that can run on the ESP32 Wi-Fi SoC chip, and hardware based on the ESP-32S module
2. "NodeMCU-32S" is a core development board designed based on the ESP-32S module. The development board continues the classic design of NodeMCU 1.0, leading most of the I/O to the headers on both sides, and developers can connect peripherals according to their needs. When using the breadboard for development and debugging, the standard headers on both sides can make the operation easier and more convenient.
3. The module is safe, reliable and expandable to various applications.

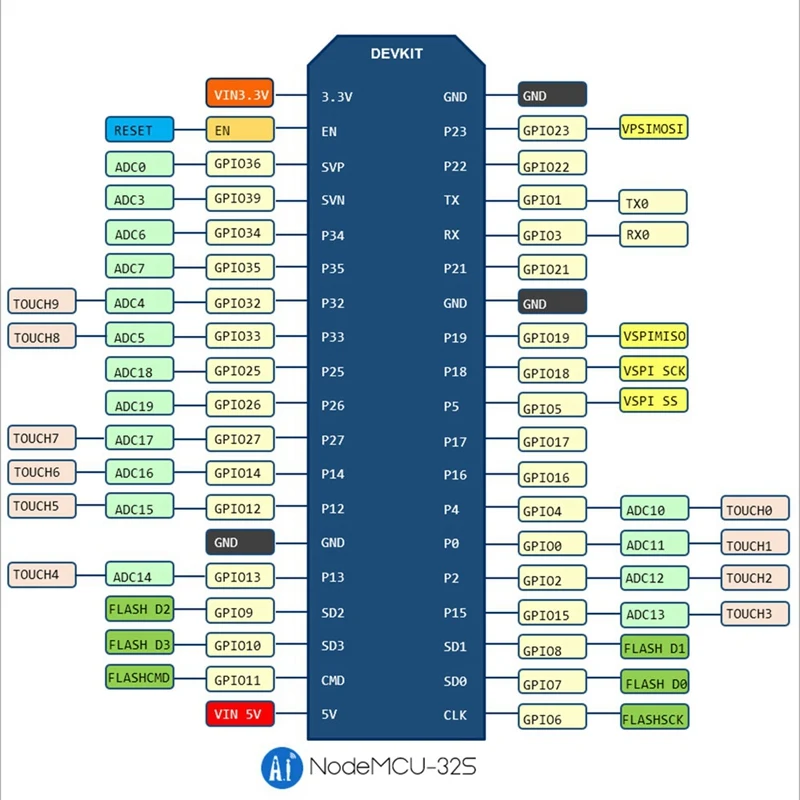

4. The module has 38 pins, which has more functions than the 30-pin module. And it is smaller in size and more convenient to use.
5. Support Lua program, easy to develop. Support three modes: AP, STA and AP + STA.

Weight: about 49g
Colour: black
Material: PCB+metal
Size: 26 x 13 x 9.8mm

Package Contents:

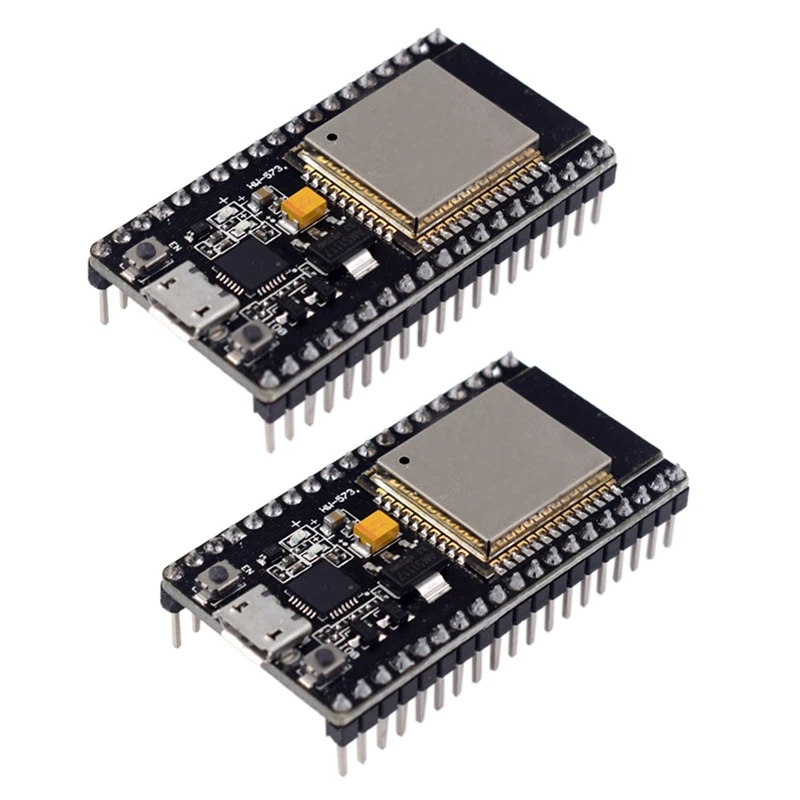

2 x ESP32 development boards

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
