#Attention!!!

★★Dear buyers：

Once the payment confirmation order will be irrevocable.Please understand!

Features:

1.The rectangular PVC case 18650 lithium battery of electric bike has large capacity, compatible with 250-2000W motor.

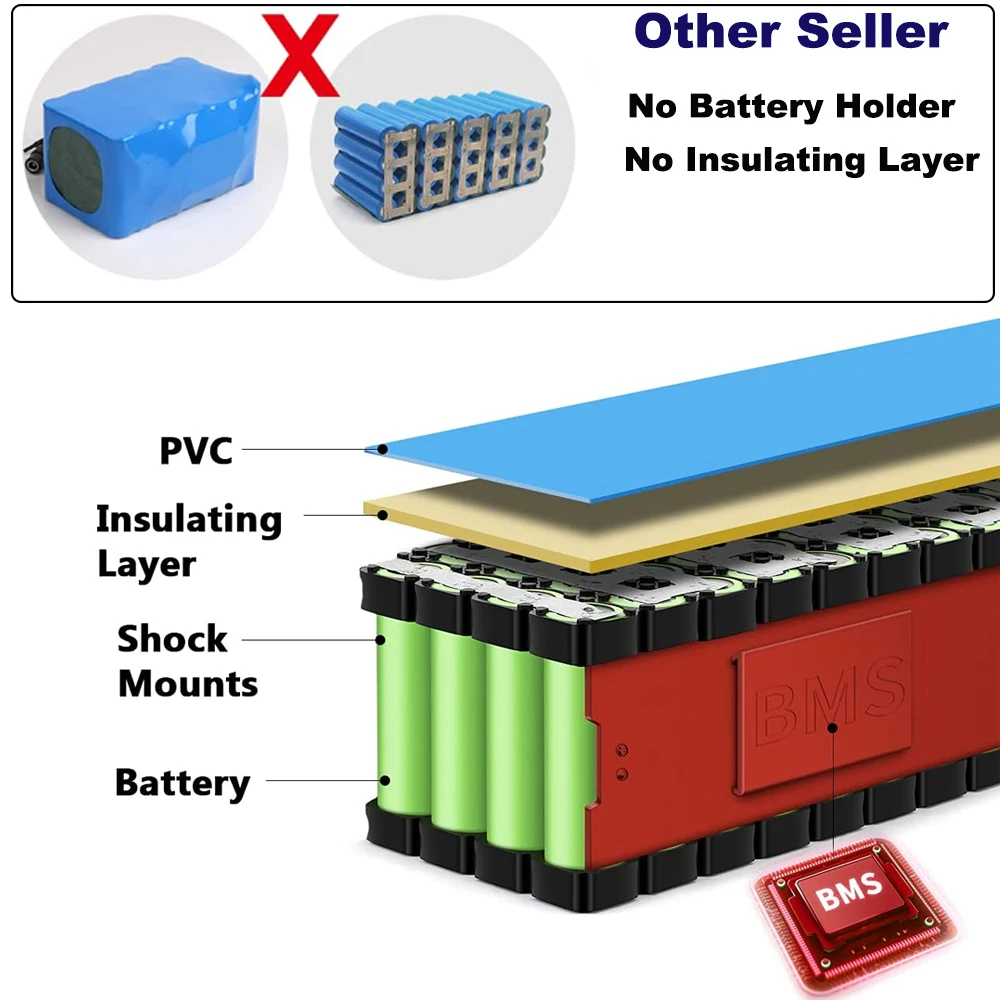

2.The outer layer of the battery pack is made of waterproof PVC material, insulation, anti-corrosion and wear resistance . The inner layer has the advantages of low melting point, waterproof seal and high adhesion.For the battery life, please put it in a bag or a case when using.

3.Widely used for electric mountain bike, city ebike, hybrid bicycle, e trike, fat tire bike, electric scooter, Electric motorcycle,etc...

【NOTE!!!】Do not fix the battery on bike directly, it is easy to suffer from collision or extrusion, will shorten battery life. We suggest to put it in a bag or case.

Packing List:

☆If you are not sure whether the battery is suitable for your bike, please contact customer service. Thank you!

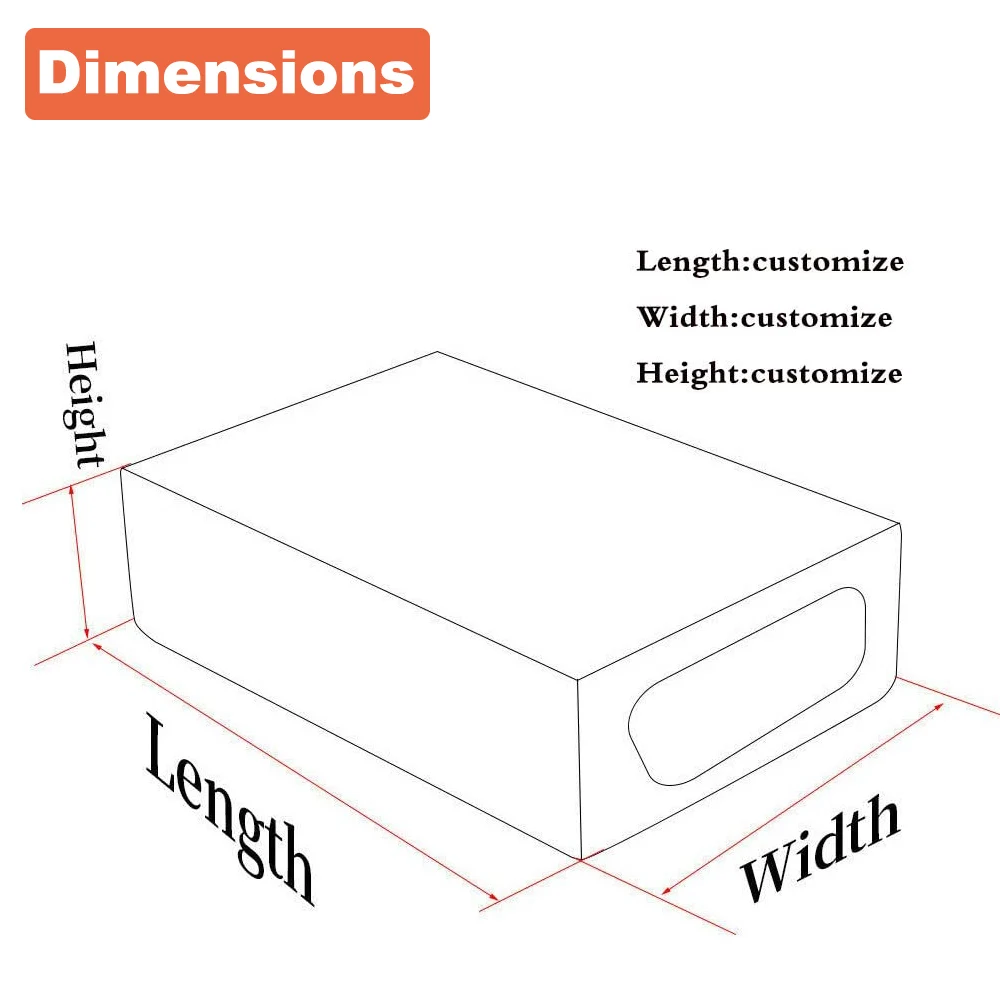

Battery Size(Not final size，upon request)：

36V 15Ah(10S6P Brand 2500mAh cells)===========L195*W125*H70mm or Customized

36V 20Ah(10S8P Brand 2500mAh cells)===========L195*W165*H70mm or Customized

36V 25Ah(10S10P Brand 2500mAh cells)==========L195*W200*H70mm or Customized

36V 30Ah(10S12P Brand 2500mAh cells)==========L240*W195*H70mm or Customized

48V 15Ah(13S6P Brand 2500mAh cells)===========L260*W130*H75mm or Customized

48V 20Ah(13S8P Brand 2500mAh cells)===========L260*W150*H75mm or Customized

48V 25Ah(13S10P Brand 2500mAh cells)==========L260*W110mm*H150mm or Customized

48V 30Ah(13S12P Brand 2500mAh cells)==========L260*W130*H150mm or Customized

Tips:

Battery parameters：

BMS rated current:25A/30A/40A/50A or Customized
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: Upon request( default XT60 with adaptor）
Package: heat shrinkable PVC

36V Discharge cut-off voltage: 28V
48V Discharge cut-off voltage: 36.4V
36V Charge cut-off voltage: 42V

48V Charge cut-off voltage: 54.6V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)

Suitable bafang motor, Tongsheng motor, Golden motor etc.

*Our battery can fit all motor kit , but exclude these four :Bosch, SHIMANO, Yamaha, Panasonic. If you can't confirm your motor , please contact us , we will offer help .

WANT A CUSTOMIZED BATTERY?
Please just message us these parameters: voltage, capacity, rated motor power of your ebike, a satisfied solution will be given.

1.Small Anderson connector (for bafang BBSHD and some popular bikes)

2.Green bullet connector (for some hub motors)

3.Big white bullet connector (for bafang BBS01/BBS02)

4.Blue bullet connector (for some Tongsheng motors)

5.XT60, XT90 and Deans connector (for some other motor brands)

【About Shipment:】

Caution:

Do not put the battery in water and keep the battery in a cool dry surrounding.

Do not use or leave the battery near a heat temperature (in fire or a heater)

Do not reverse the position and the negative terminals.

Do not open the battery if you are an amateur, it is very dangerous.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, collars, etc.

Do not directly solder the battery and drill the battery with a nail or other sharp objects.

You must use a qualified charger for the battery, also when charging the battery, you must have an adult nearby.

To be safe, children can not use this battery.
