Attention:

***Please kindly note that our zigbee devices(Zigbee/Plus/Pro version Products) require zigbee gateways with standard protocol.(Such as SmartThings, Tuya, Conbee ect.)

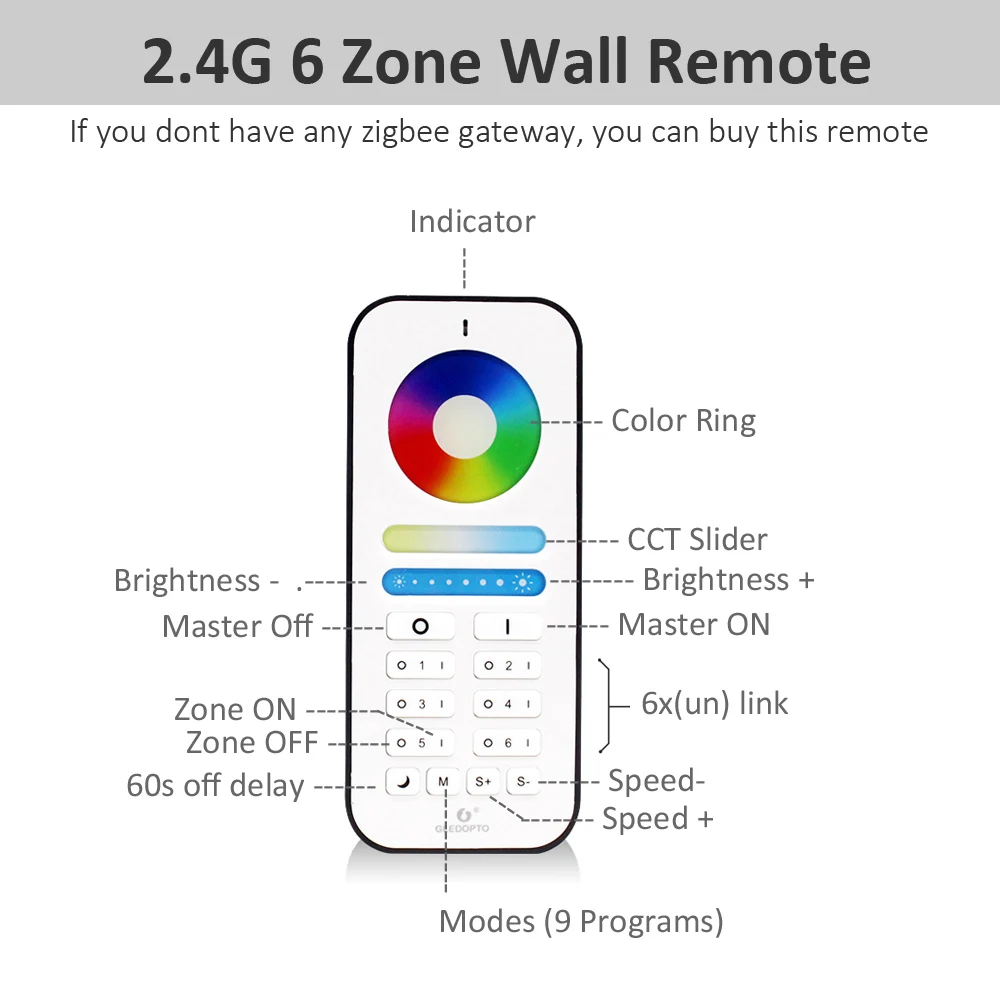

*** If you don't have any gateway, please buy one 2.4G RF remote control or wall switch to work with Pro Version Products.

***2.4G RF Remote Control and Wall Switch only work with Pro Version Products.(Not ZigBee)

Advantages:

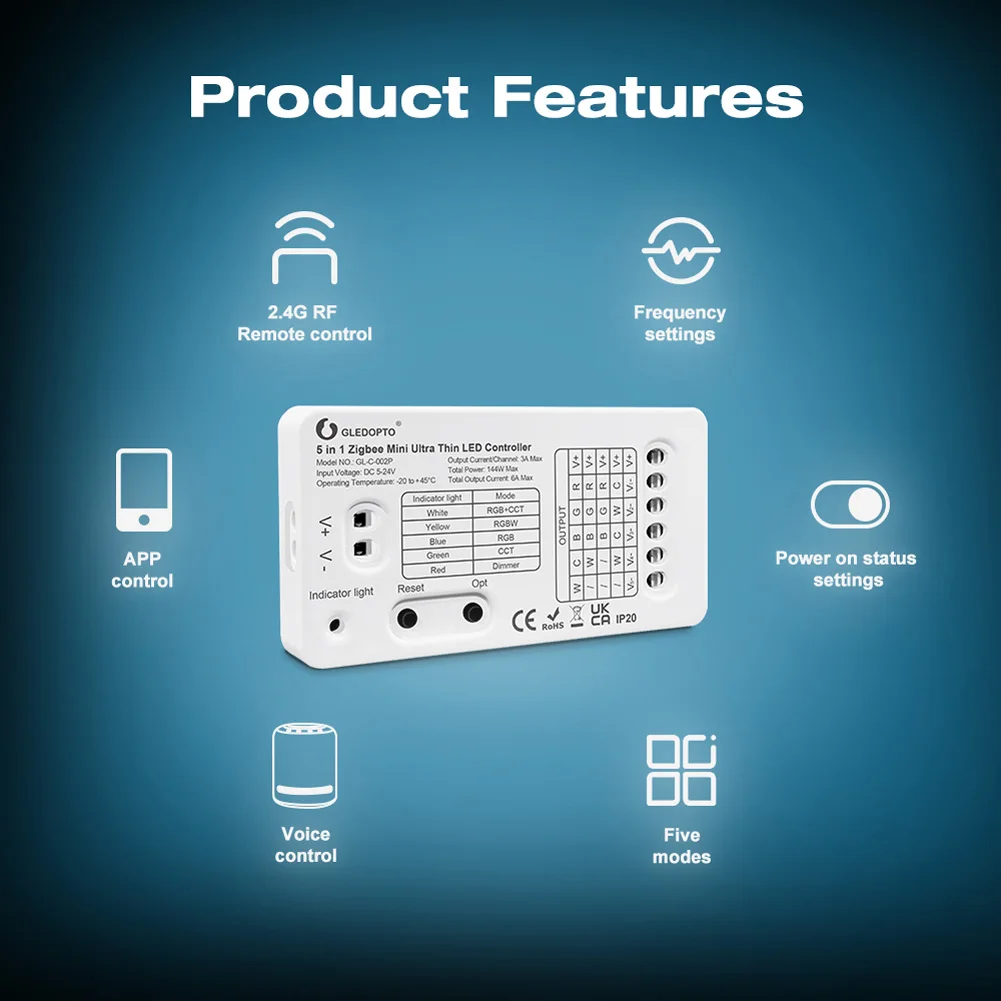

***Mini 5 in 1 LED Controller:

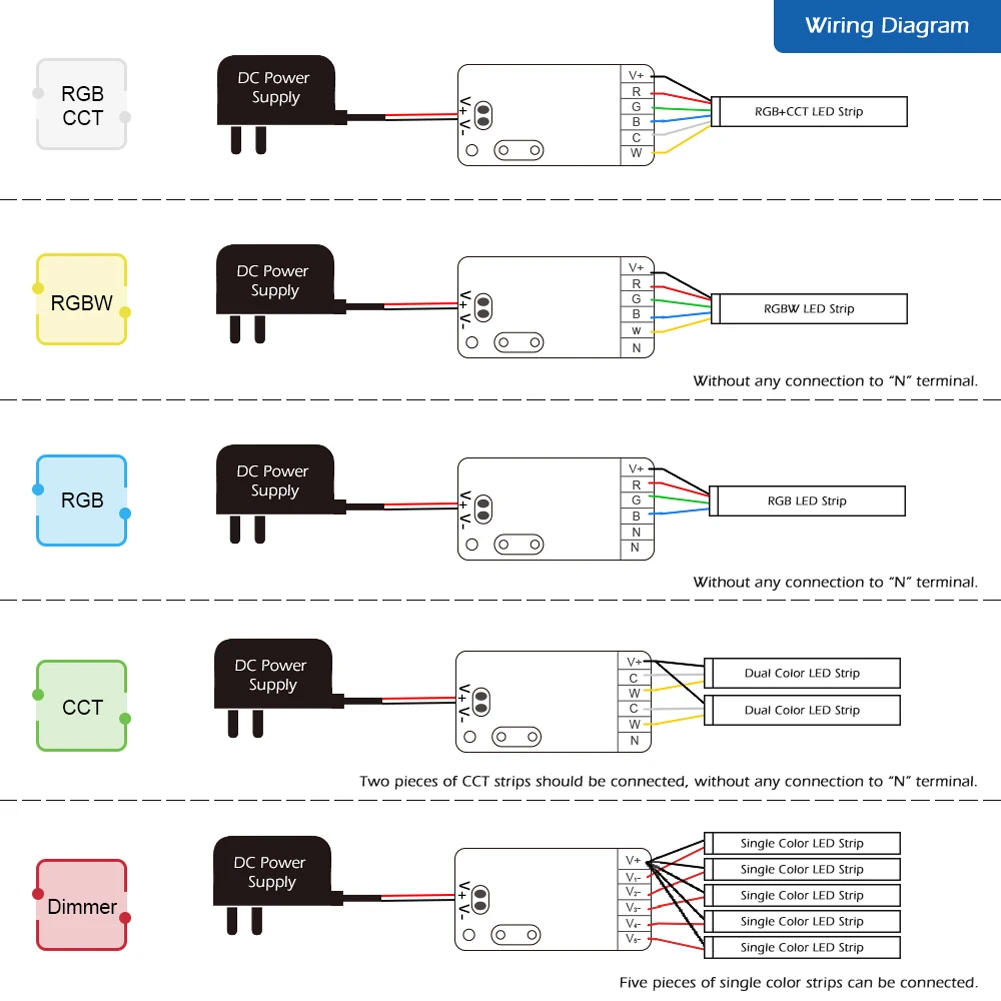

There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions.

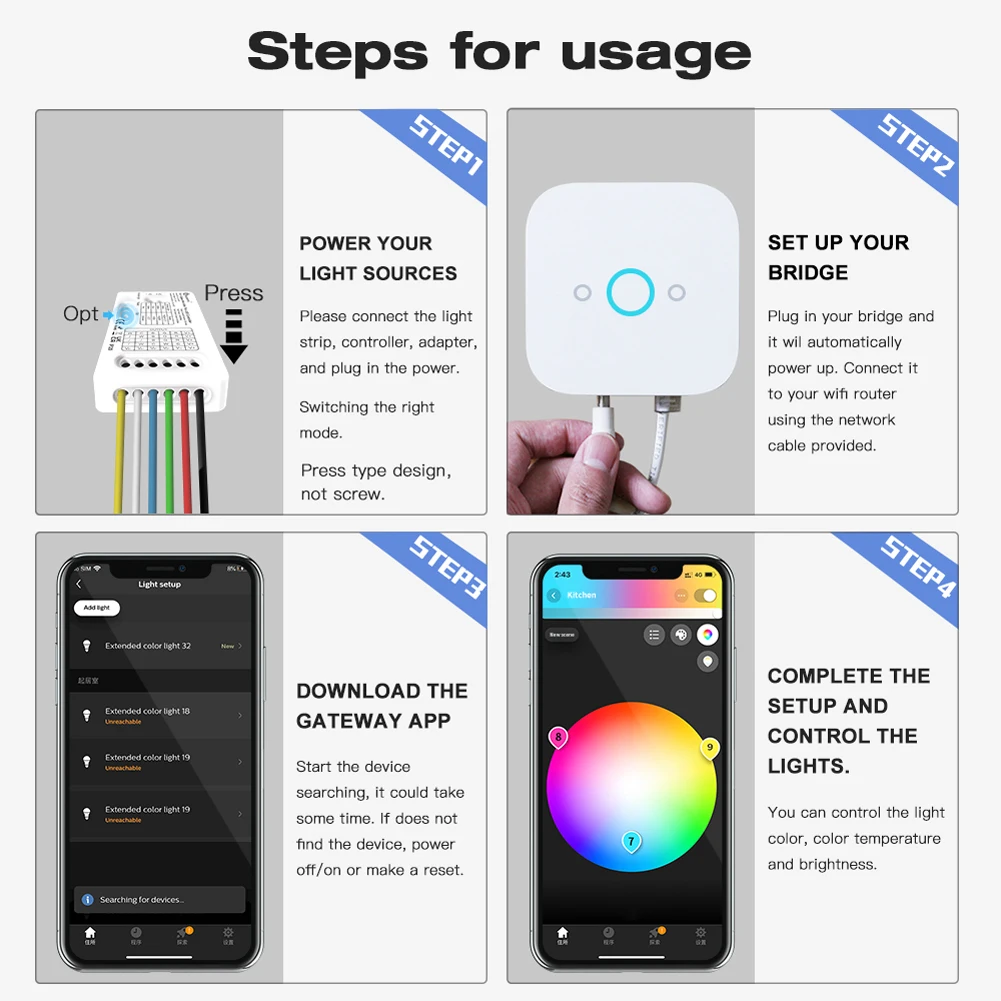

You can click the "opt" button, short press once to switch one of functions that you want according to the different indicator color, then you can connect between the different port of controller and corresponding wires of your led strip.

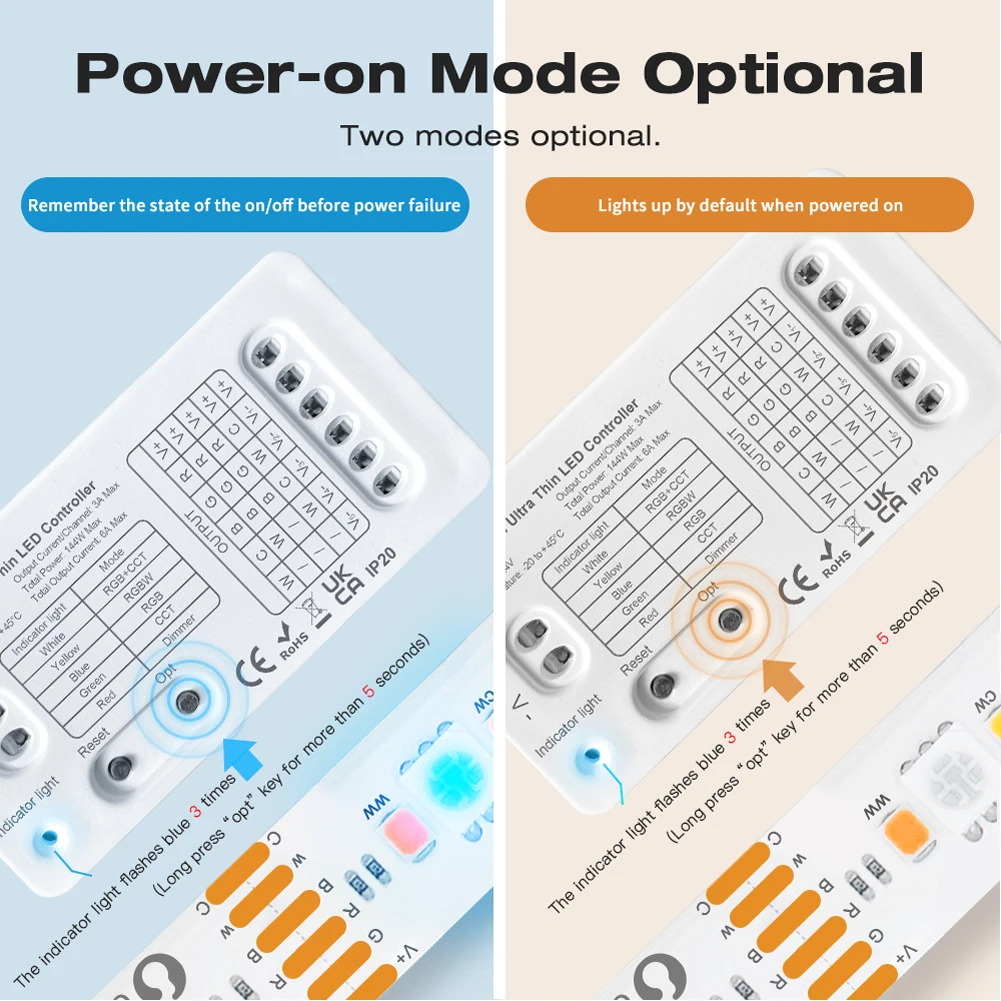

***Power On Status Settings:
Long press the "opt" key for 5 seconds, the indicator of device will flash in blue color for 3 times, it will go into the "power on/off status“ mode, and the device will save the previous status before power off.

It will has two options state under:
① if the device is powering on, after the electricity drop and power on again, the device will keep on;
② if the device is powering off, after the electricity drop and power on again, the device will keep off.
Repeat the operation again to cancel this function, the device will be on by default status when powered on.

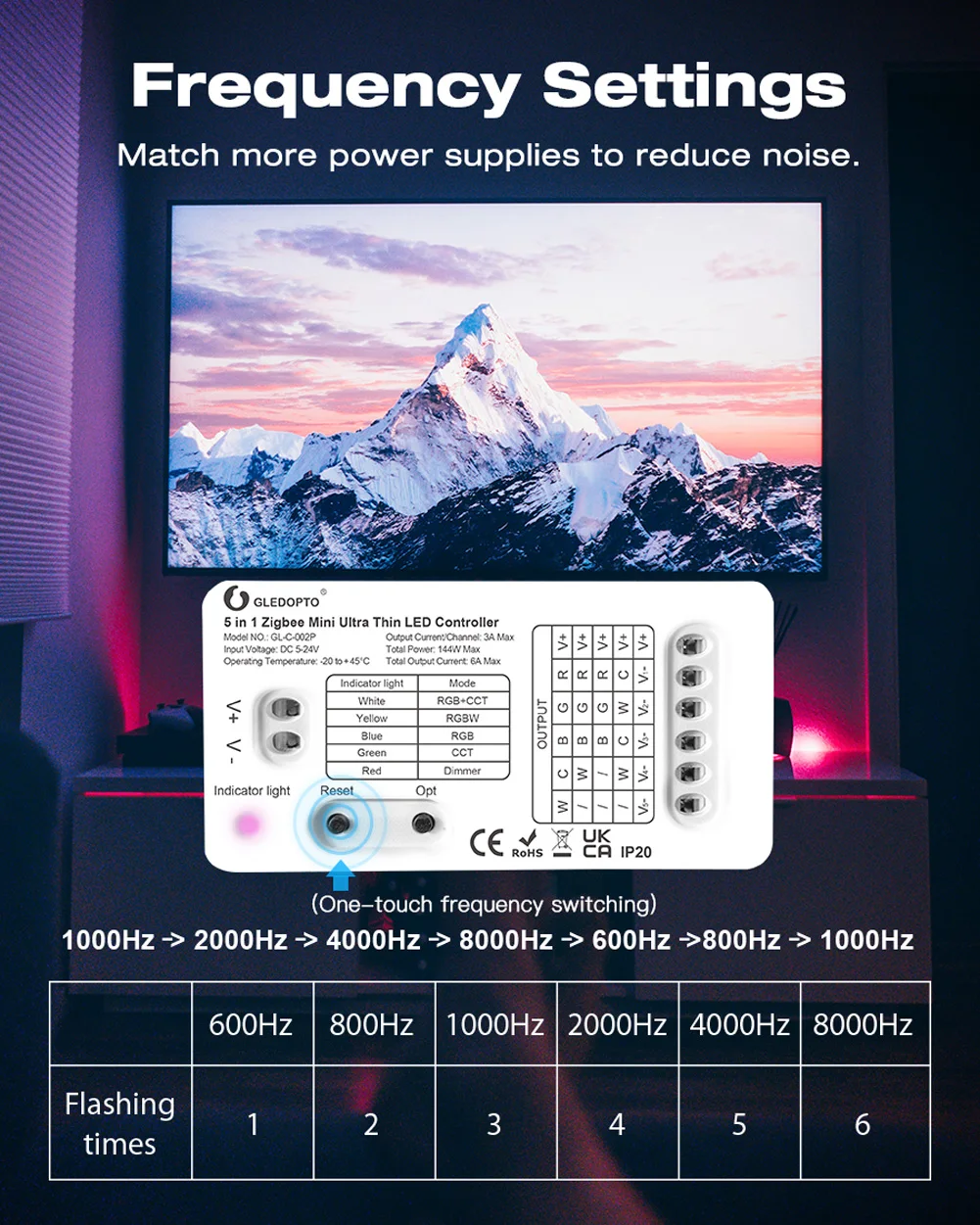

***Frequency Settings:
In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz and 8000Hz, and default frequency 1000Hz.
Once short press "reset" key, the frequency will switch into the next one. The indicator will flash in pink color and resume to previous color after "off" for 2 seconds. The indicator flashing times corresponding to different frequency.

(There has specifications in user manual.)

Features:

***16 million colors for your choice and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.

*** When adjusting the color temperature, the color lamp beads will automatically turn off to get a more accurate color temperure that you want,which can experience the more delicate atmosphere lighting effect;

***When adjusting the brightness from 1% to 100% that you want, making a vibrant atmosphere anytime.

*** Control ways:
① APP Control: Requires to zigbee gateway such as SmartThings, Tuya ect., support APP control in Android/IOS Phone;
② Voice Control: support Amazon Alexa/Google Home/Homekit via zigbee hub;

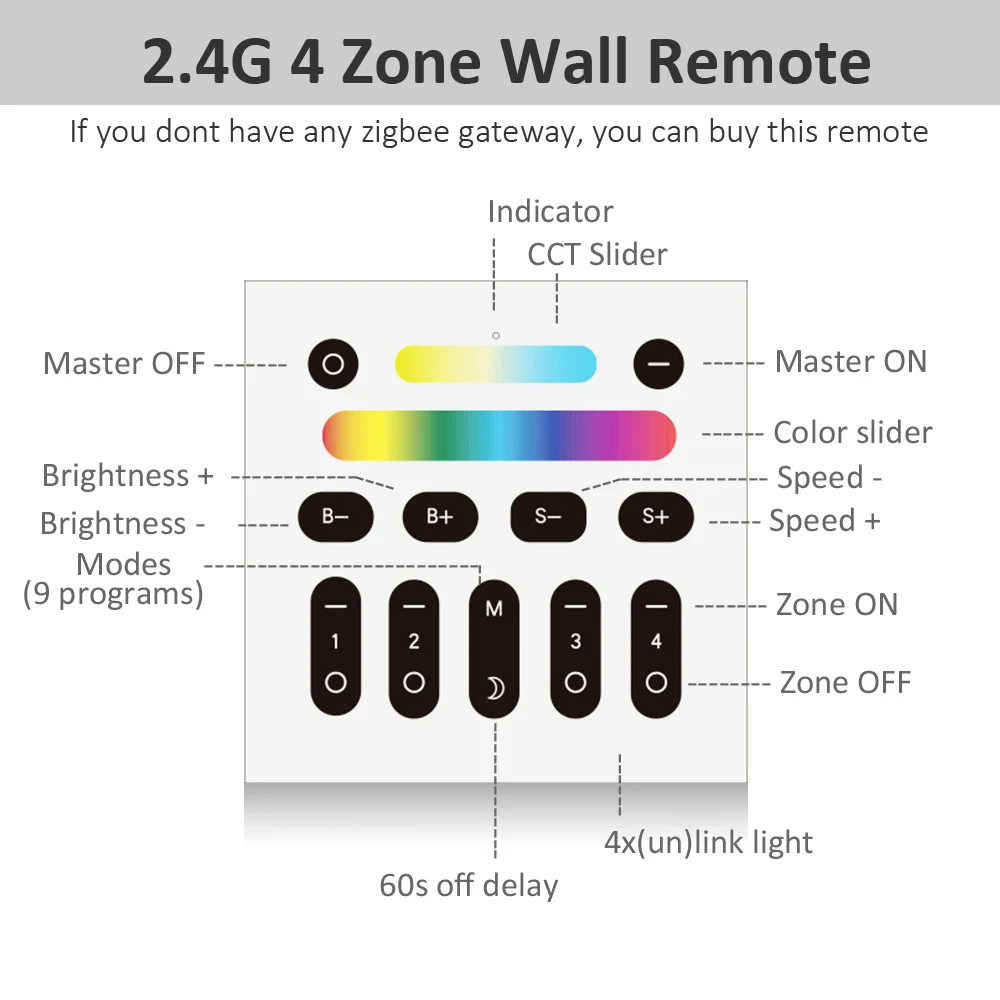

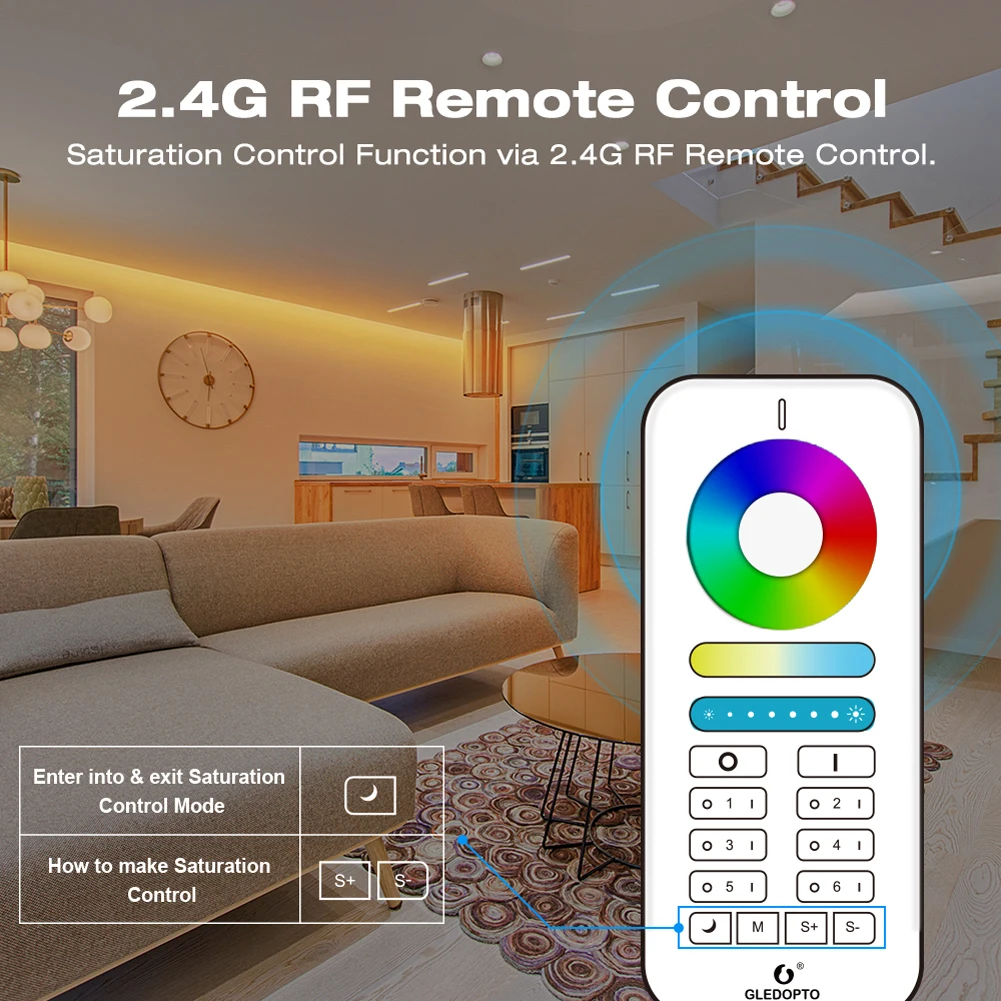

③ Remote Control: support 2.4G RF remote control/wall switch directly, without zigbee hub;

*** Group: Create rooms, divide your strip lights into one room( to control lights together) or several rooms(to control lights in different room separately).

***Set the Scene that can adjust the different lights atmosphere in your room according to your needs.

***Compatible With Zigbee Gateway: it's using with zigbee light link(ZLL) standard protocol, zigbee transmission technology, mesh, multi signal at the same to to transmit, receive, anti interference ability.

Q&A or more info, please contact us on line, and we will answer you in time.

Parameters:

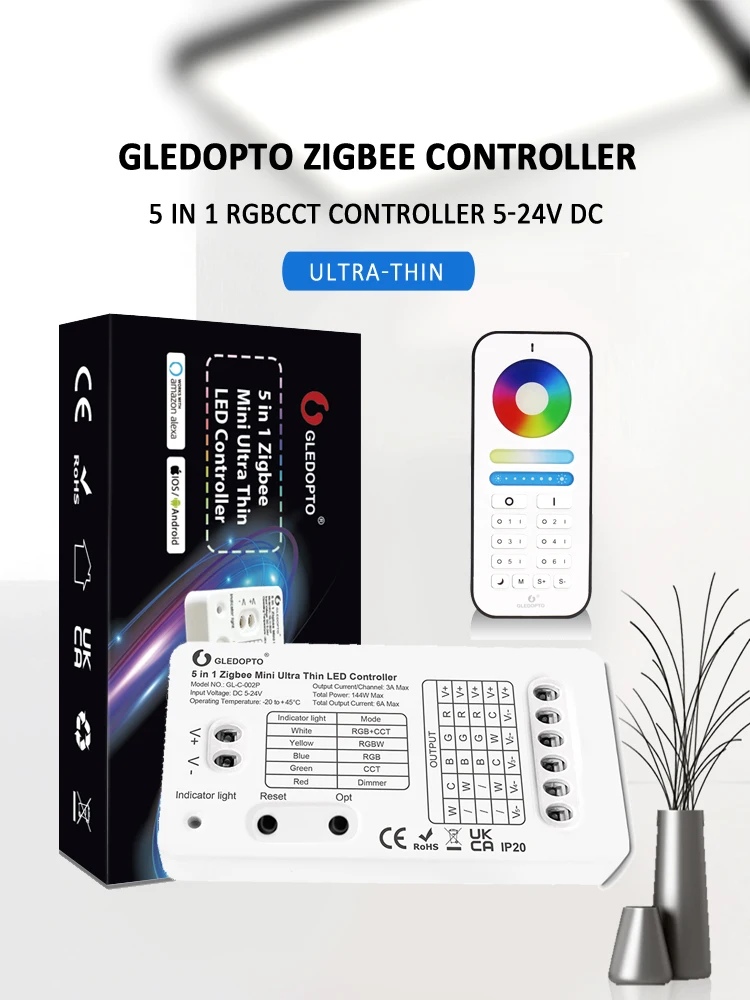

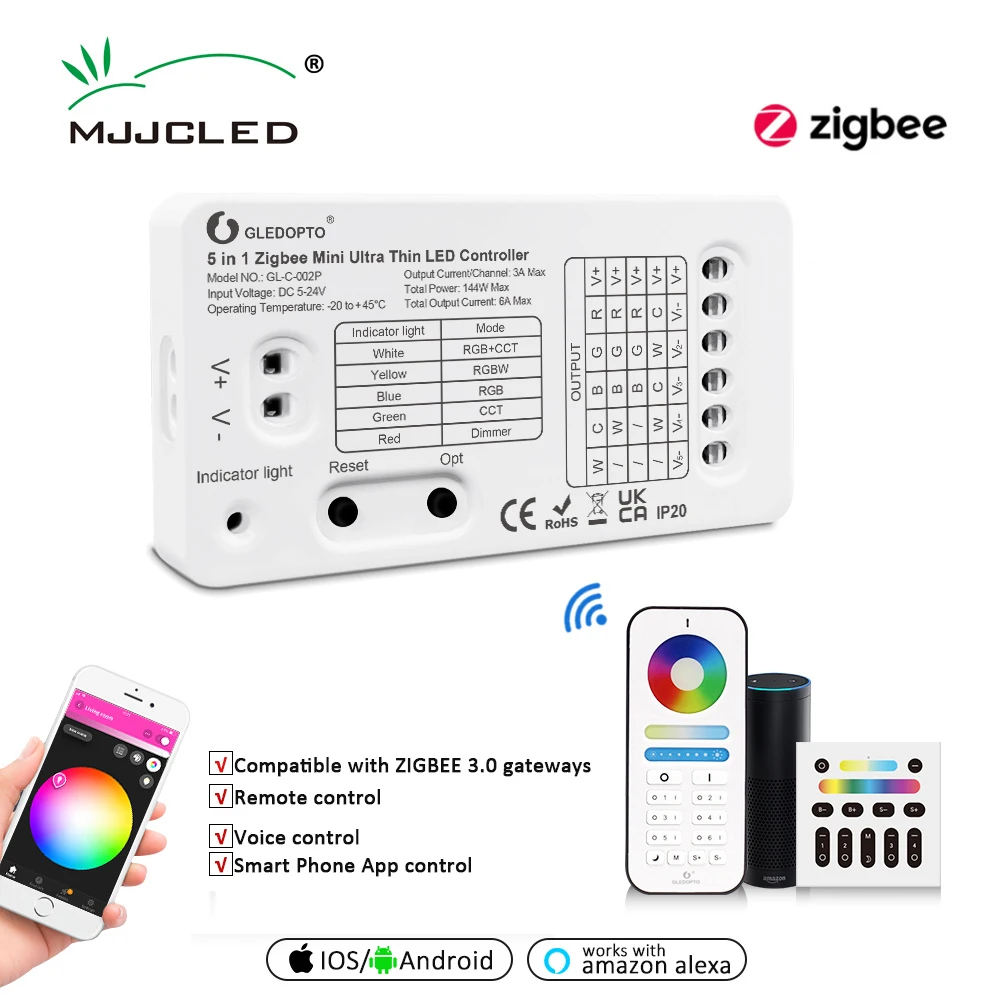

Product Name: Zigbee Utral Thin Mini 5 in 1 LED Controller Pro
Model No.: GL-C-002P
Product Size: 70*36*10mm
Input Voltage: DC5-24V
Protection Rate: IP20
Total Power: 144W Max
Output Current/Channel: 3A Max
Total Output Current: 6A Max
Applications: Suitable For DC5-24V LED Light Strip

Features:

New products with high quality and high brightness.
Easy to install, IP20 and IP65 have 3M adhensive in the backside(IP67 do not have 3M adhensive)
Energy-saving and environmentally friendly, green products
Low heat consumption, no UV or IR light radiation
safe and stable, reliable
Applications: Home lighting, Festival decorations, activities, venue set, exhibition decoration, hall decoration, Hotels and other entertainment decorated KTV

Technical Parameters:

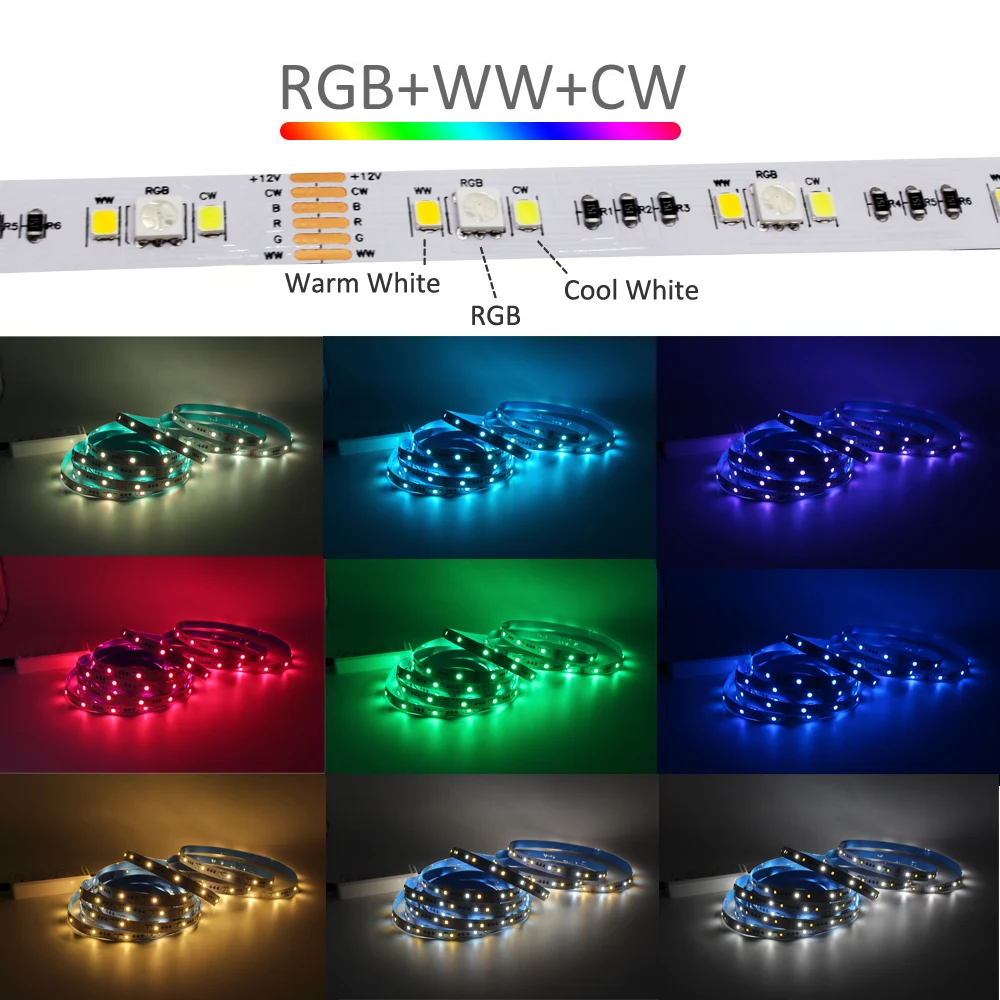

LED Type: SMD 5050 + SMD2835 LED
Quantity: 90LEDs/M(30pcs 5050 RGB + 30pcs 2835 Warm White + 30pcs 2835 Cool White)
LED Color: RGBCCT ( RGB+WW+CW)
View angle: 120 °
Working Voltage: DC12V
Working Temperature: -20 ° ~ 60 °
Power: <60W
Long life:> 50,000 hours
Waterproof level: IP65 Silicon Waterproof , IP20 Not waterproof, IP67 Silicon Tube Waterproof
PCB Width: 12mm
Package: 5M/Roll

Package Including:

1pcs* ZIGBEE Mini 5 in 1 LED Strip Controller
or 1pcs* 5m LED Strip IP20
or 1pcs* IP20 LED Strip with L Connector
or 1pcs* 5m LED Strip IP65
or 1pcs* 5m LED Strip IP67
or 1pcs* 6-Zone Remote
or 1pcs* 4-Zone Remote
