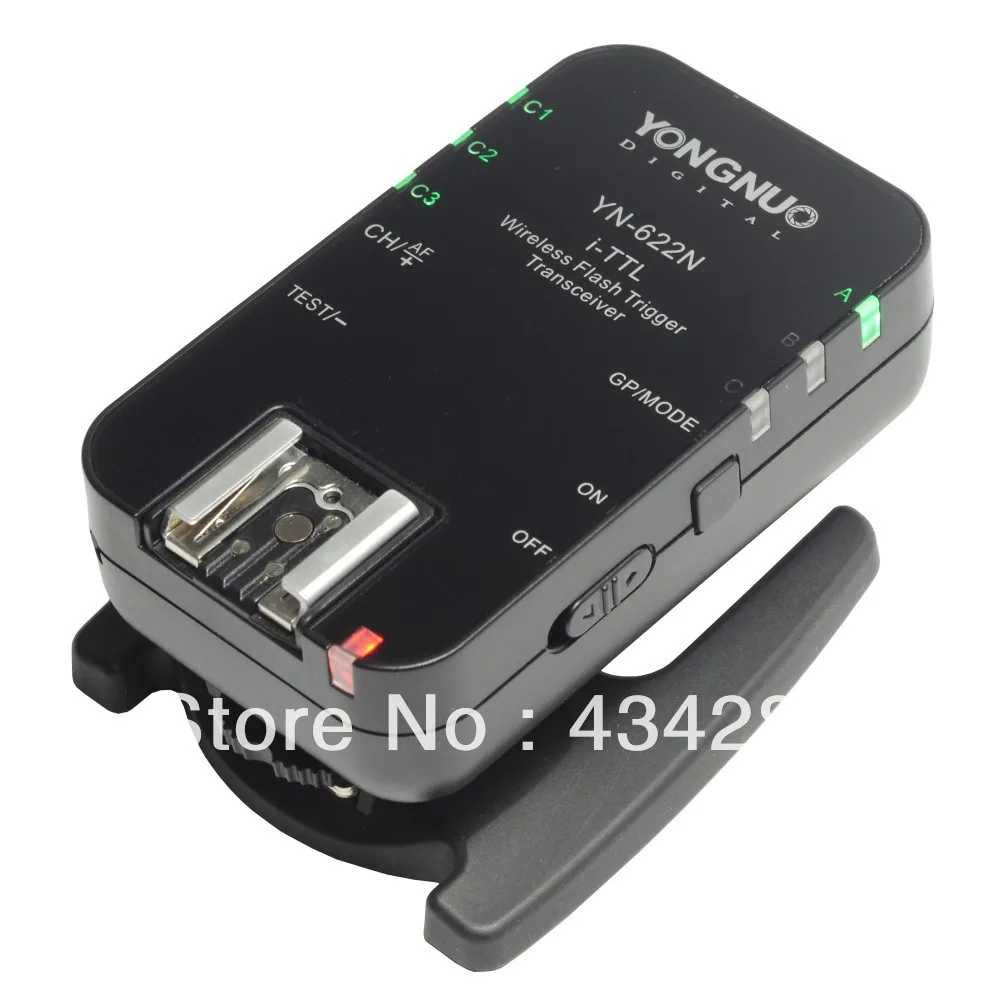

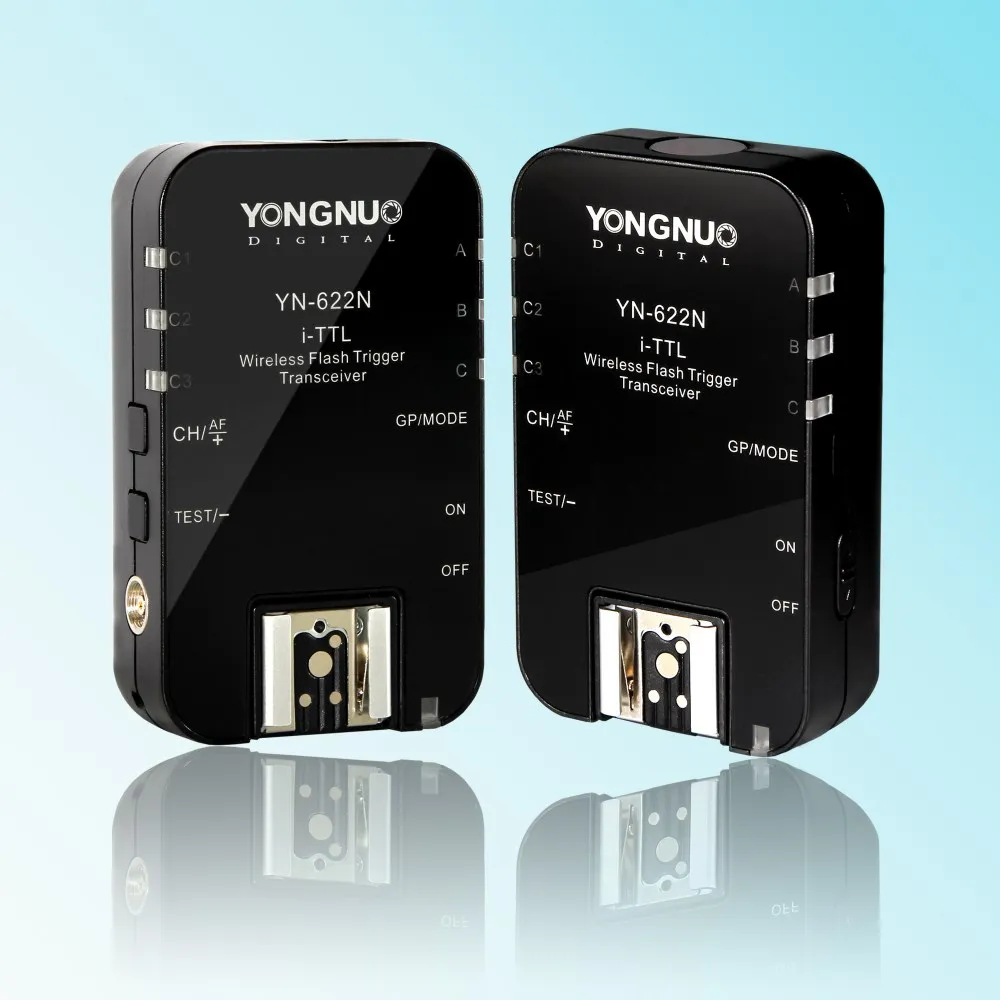

Yongnuo YN-622N Wireless i-TTL Flash Transeiver / Flash Trigger Supports High-speed Sync HSS for Nikon Flash Speedlite to 1/8000s

Featrues

Recommended  use with YN568ex HSS flash speedlite for Nikon

This AD contains 1 YN622 single transceiver.

Specification:

Yongnuo First Wireless i-TTL Flash Trigger YN-622N is Released now, it's designed for Nikon Camera.

Using Digital FSK 2.4GHz frequency band with 7 channels, it has three mode, i-TTL, Manual and RPT, and it can fire flashes at 360 degree direction, the operating range is 100 metres.

It supports FEC, FVL, High-speed Sync, Front Curtain, Rear Curtain, Modeling flash, i-TTL, Manual/RPT, Manual mode, Auto Zooming, AF Lamp.

Main function:

a),Support Full I-TTL Pass-through function when on camera

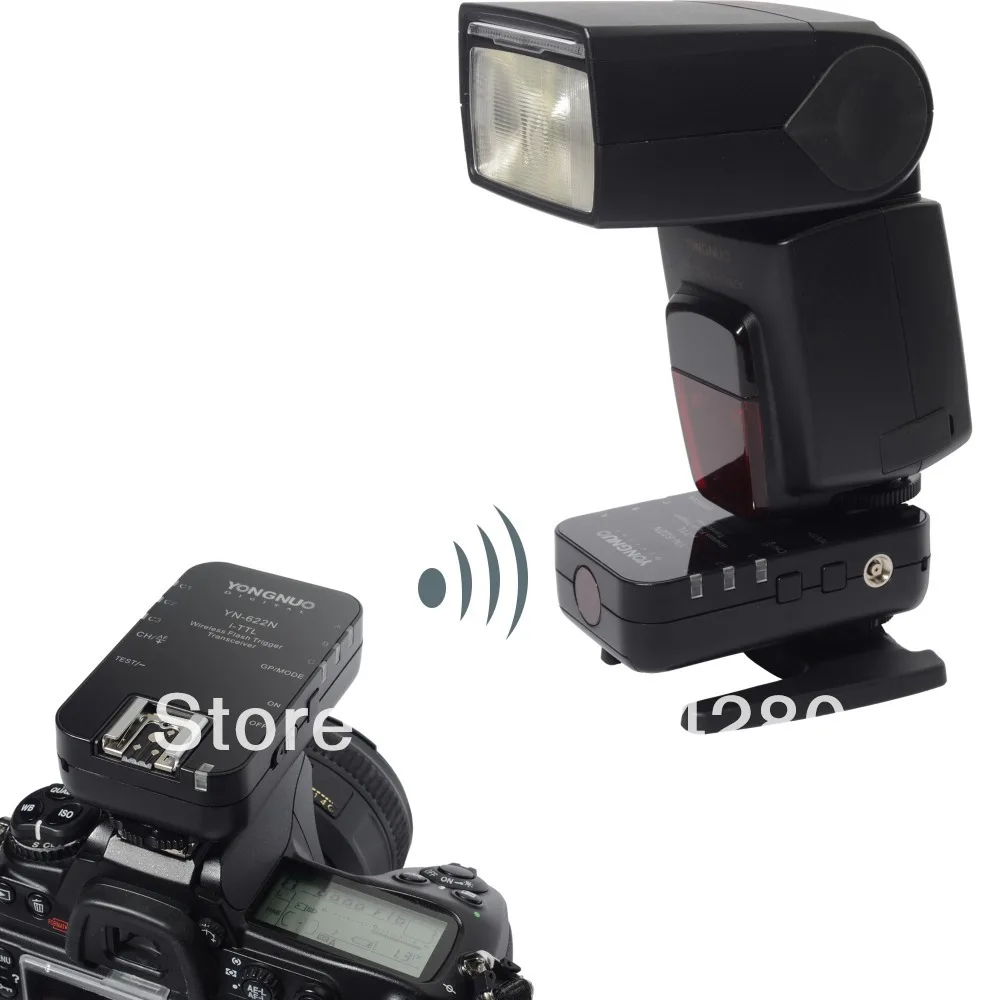

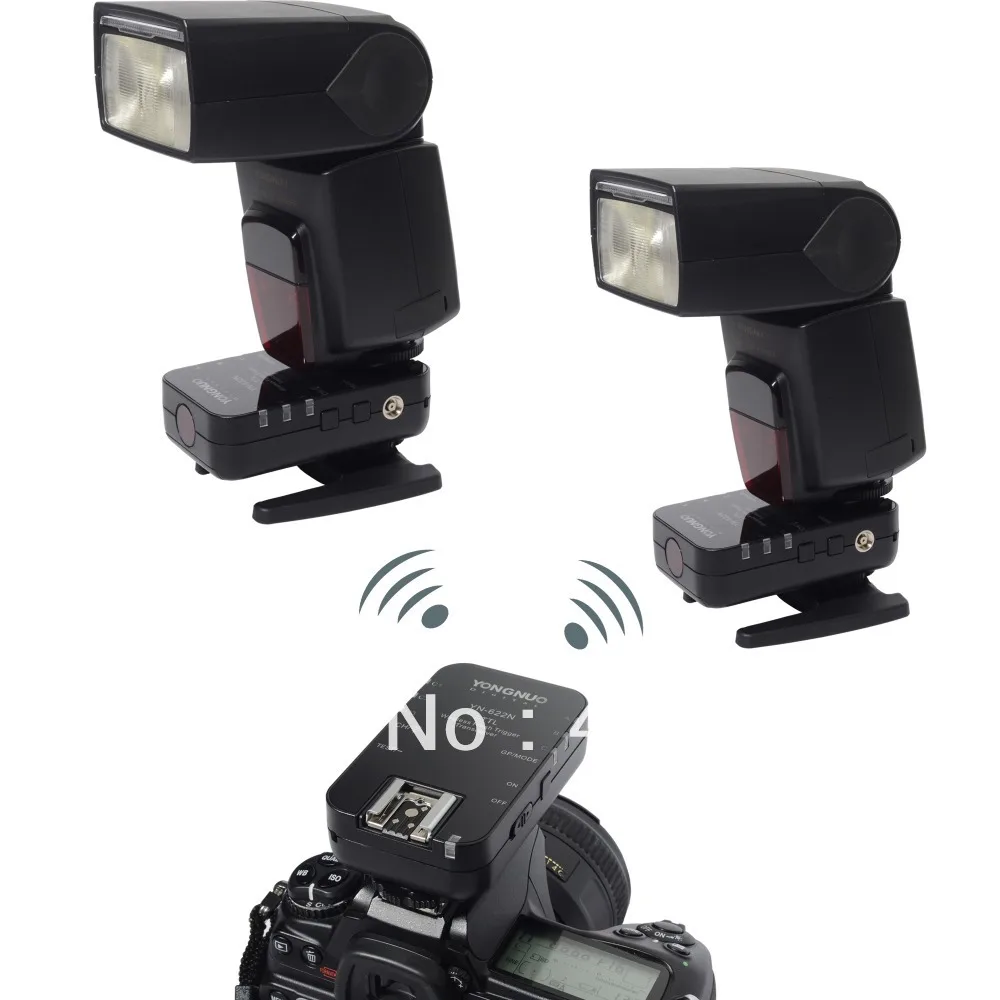

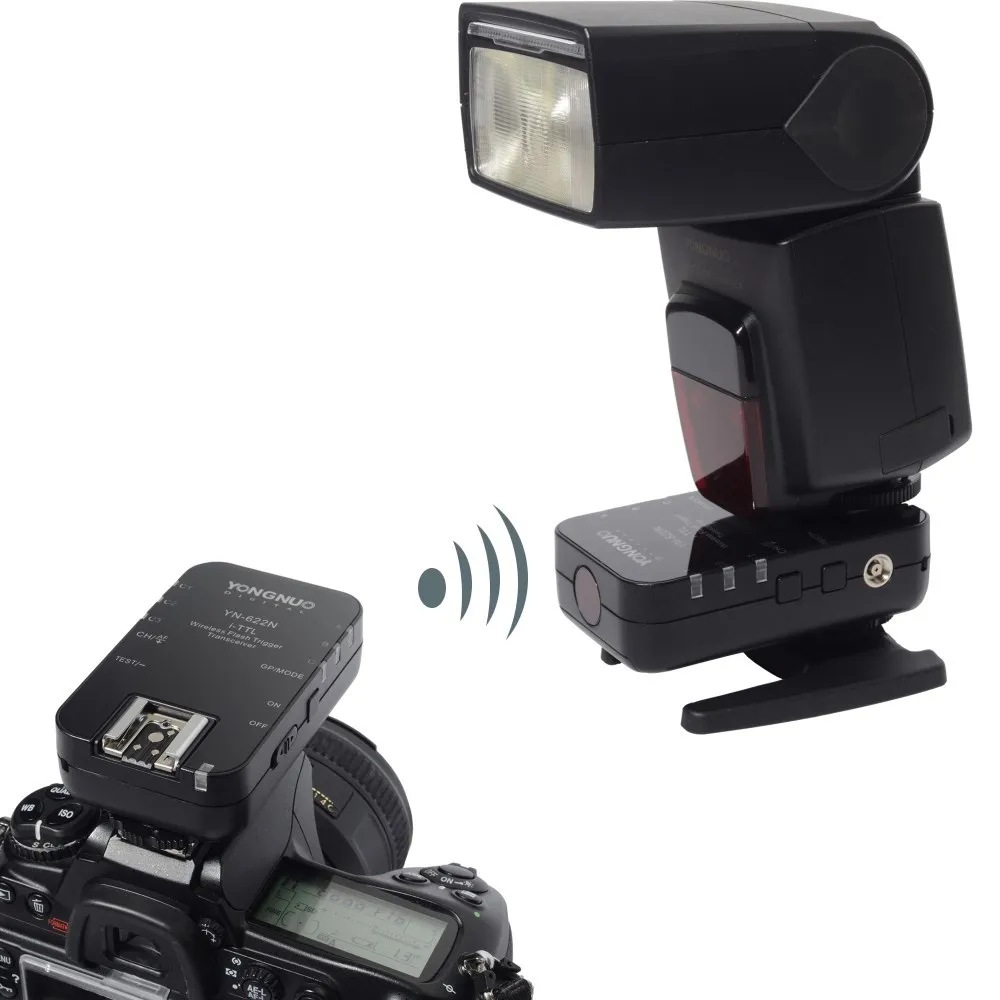

1), Mount one YN-622N transceiver into the hot shoe of camera, and mount other transceiver into the hot shoe of flash, you can trigger the flash at any direction in TTL, Manual or RPT mode.

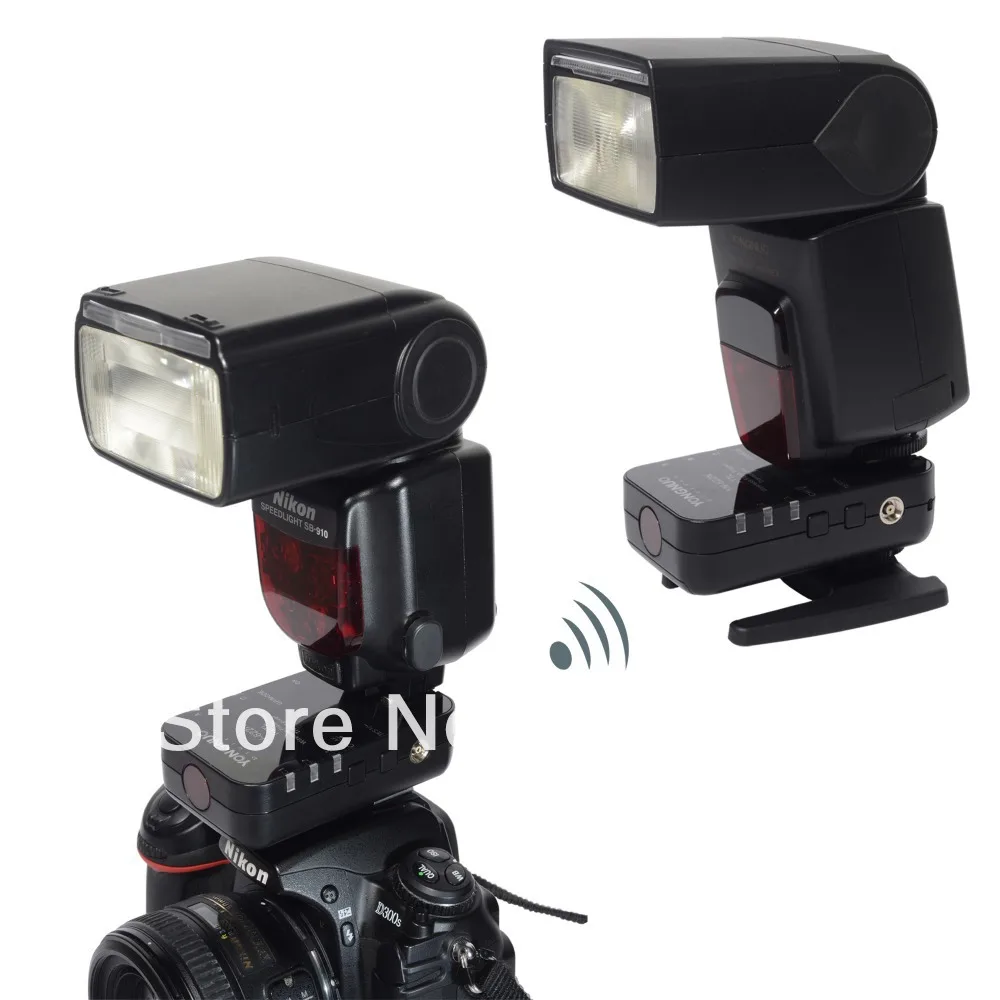

2), Mount flash on hot shoe of YN-622N transceiver on camera, mount the second flash on other transceiver, both of flashes can be trigger at any direction in TTL, Manual or RPT mode.

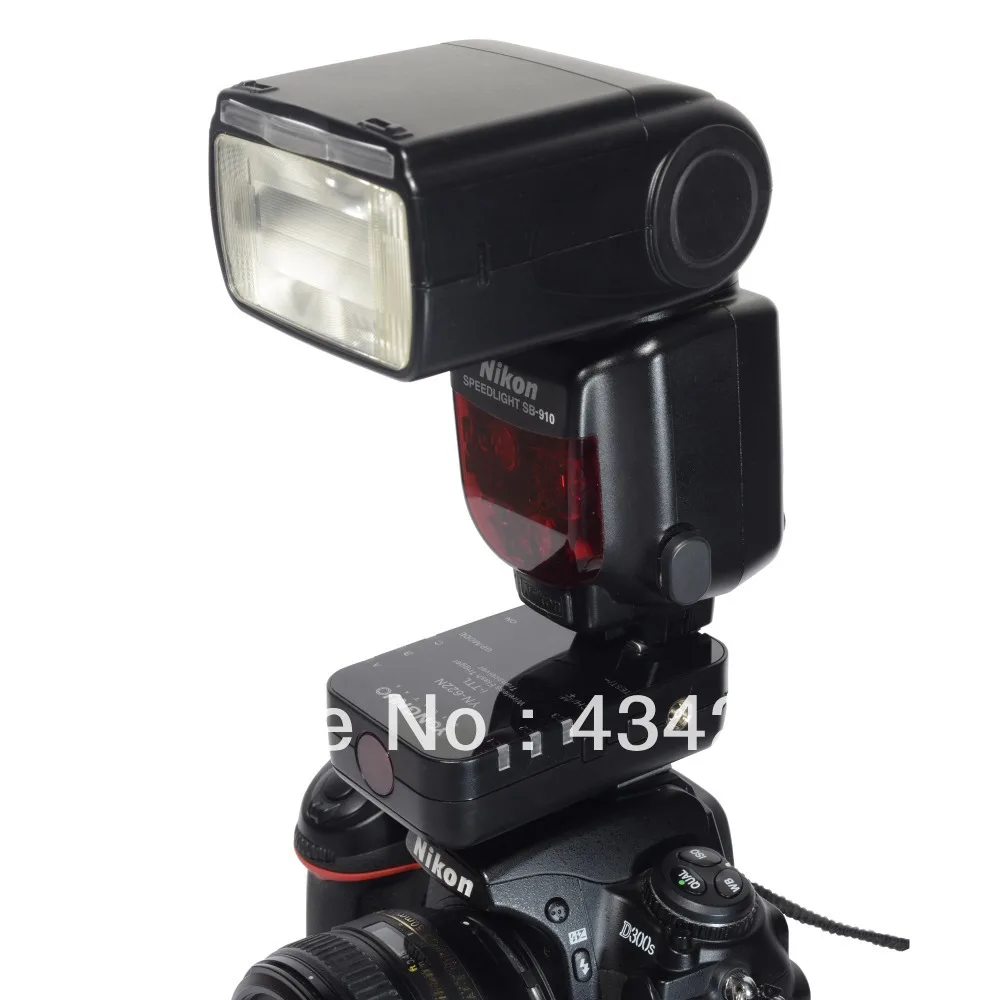

Note: Speedlites on hot-shoe of transmitter support i-TTL/ Manual / RPT

b), Shutter Sync

1), High-speed Synchronous
The max. sync speed is 1/8000s, but some camera is just 1/4000s, and for those cameras and flashes who don't suport HSS, the sync. speed is just 1/250s or less, different cameras have different Sync speed.

2), Front Curtain Sync

3), Rear Curtain Sync.

c), Remote Control Function

The parameter of flashes on hot shoe of receivers can be set up remotely through the camera manu directly.

d), Supporting mixed mode.

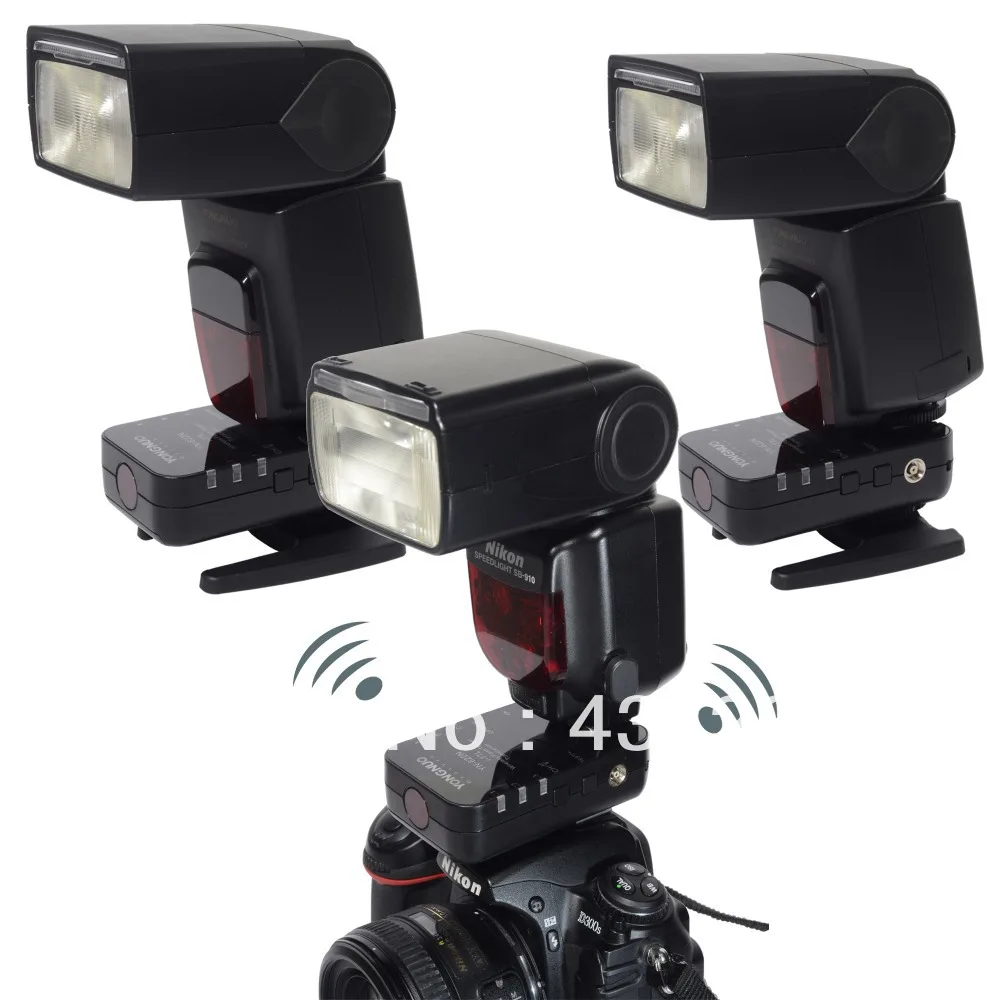

With this function, you can trigger remote speedlites in different modes, set up one YN-622N transceiver on hot shoe of flash in TTL mode, set up the second YN-622N transceiver on hot shoe of flash in manual mode, and the third YN-622N transceiver on hot shoe of flash in multi mode, all three flashes can be fired via the transceiver on hot shoe of camera, this mode is especially useful for those camera bodies without a built-in flash menu.

Note: Only FEC;FVLRatio and Shutter sync can be set in the camera side. Manua and Multi output need to be set on the flash speedlite.

e), Work with Strobe Studio flash light in HSS function

You can buy a PC Sync Cable RF-603 6.35mm cable to connect the transceiver with the studio flash, and then youcan use the non-high speed sync flash to realize higher syc and then you can use them together in HSS. The max. trigger voltage is less than 300 Voltage.
Note: The PC port is for output using only.


f), Awaking function

When half-pressing the shutter button of the camera, the hot shoe flash on the receiver will be awakened. ( for those flash has wake up function )

g), Zoom Function

Zoom Automatic: length will be changed depanding on the changes of lens.

h), Support Single-contact of camera and flash triggering ( the max. Sync. speed is 1/250s )

You can use it with Nikon camera or Nikon flash, but you just need to set up YN-622N in manual mode.

i), Flash Fire Ratio with I-TTL

You can set up different flash fire ratio and FEC for those flashs on hot shoe of receiver.

j), Support 2pcs AA batteries, ( 1.2v rechargeable battery ), Stand-by time is 60hours.

k), Dimension: 89.5 * 53 * 39MM, net weight is 78g.

Note: There is a PC Sync port for YN-622N transceiver, you can use RF-602 PC / PC Cable to connect it with flash.

Specification

Front-curtain Sync,Rear-curtain Sync,High Speed Sync(Auto FP)

Input

Output

Applicable battery:

Stand-by time

Weight

Note: There is a PC Sync port for YN-622C transceiver, you can use RF-602 PC / PC Cable to connect it with flash.

Suitable for

Camera :

Nikon D800E D800 D700 D300S D300 D200 D7100 D7000 D90 D80 D5200 D5100 D5000 D3200 D3100 D3000

Flash compatible (i-TTL):

Nikon SB400 SB600 SB700 SB800 SB900 SB910 SU800

Yongnuo YN465N YN467N(II) YN468N(II) YN560II YN560III YN565Nex YN568Nex

Package included


1*RF-622 transceiver;
1*Instruction in Chinese and English;
1*Original Yongnuo Box.

We Provide 12 months' warranty for our products,please don't worry.
