HD H.264 SDI hd encoder for Live Broadcast to Youtube Wowza Facebook Ustream | Электроника

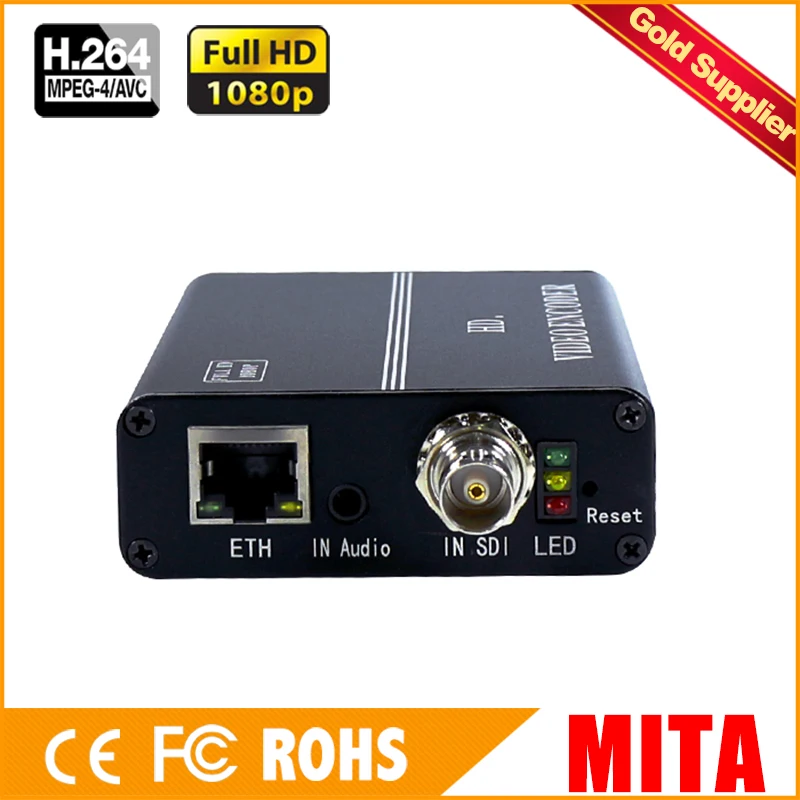

H8114 SDI HD encoder is a professional high-definition audio and video encoding product, which supports 1-channel HD or 1-channel SDI audio and video, 1 channel 3.5MM independent audio interface with capture function , with SDI input and SDI output function.

Dual-stream H.264 encoded output format, audio MP3 / AAC output format. The code rate can be adjusted, the picture quality can be controlled. Support HTTP / RTSP / RTP / RTMP / UDP /ONVIF/HLS transport protocols etc.
It is easy to install, plug-play, and there is no computer hardware compatibility issues.

Characteristics

● The embedded hardware encoding
● Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
● Support multiple devices display on a computer at the same time
● Support network directly connected, don’t need match HD collection card.
● Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
● The network interface uses a 1000M full duplex mode
● 1 channel SDI input, 1 channel 3.5MM independent audio interface input, support HDMI / VGA / CVBS convert to SDI input, support audio gain
● Support SDI input and support up to 720P, 1080P HD video input
● Support RTSP/RTP/RTMP/HTTP/UDP/HLS unicast and multicast protocol (RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
● Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
● Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)
● Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
● Video packaging: A mode: FFMPEG, B mode: VLC
● Support streaming resolution output settings custom
● Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
● Support streaming add watermark (OSD), XY axis, the font can be set;
● Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
● Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
● Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
● Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
● Support coding without video signal;
● Complete the setting effect immediately, don’t need to restart
● Support one-key recovery of the default configuration
● Support set-top box decoder
● The low power consumption design

Specifications   Product model MT4-SDI-H8114 Input 1 channel SDI input,1 channel 3.5 audio input Output 1 channel IP signal output             Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/640*480i And other conventional resolution Coding standard H.264   Coding level H.264 Baseline Profile
H.264 Main Profile
H.264 High Profile Encoded size 640*360~1920*1080（Can customize） Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S Video frame rate 30/60 OSD Character       Audio Input selection 1 channel embedded audio SDI, 1 channel 3.5MM independent audio support audio gain Audio coding AAC/MP3 Audio bit rate 64Kb/s~384Kb/s Sampling rate 32000、44100 ,48000etc IP output 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol   System Network protocol Supports HTTP, RTSP, RTMP, UDP, multicast, unicast Configuration management Support IE configuration, remote upgrade         General Power supply 12V~2A power consumption 5W Size 146mm * 122mm * 42mm(length*width*height) Operating temperature -20℃+ 60℃ Working humidity <90%，Non-condensing Weight 0.3KG Our company reserves the right to adjust the product parameters, if you have any questions please contact us.





Video signal transmission products such as high-definition HDMI, DVI, SDI, VGA that developed and produced by the company utilize cables, network and optical fiber as transmission mediums, providing long distance transmission solution of high-quality media signals for the majority of customers. Now these products have widely used in many fields such as track traffic, security monitoring, big screen(splicing screen)display, multimedia teaching, LCD and industrial control.   At the same time, HDMI, DVI, SDI, VGA high-definition video codec that lately developed by Mita has provided a stable, clear, reliable front-end acquisition device for IPTV, video conference, live telecast, recording and playing and monitoring. Today Mita electron will continue to adhere to service purpose and philosophy of “the technology centering on the needs of people” .
