OVERVIEW:

FMUSER hereby presents newly innovated FSN-600T 600W FM transmitter with touch screen to all FM broadcast fans with due respect. Exclusively from other 1KW transmitter in the market, FMUSER 600W radio FM transmitter features by its human-friendly touch screen operation interface, highly stable and reliable performance and near CD quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of FM radio stations.

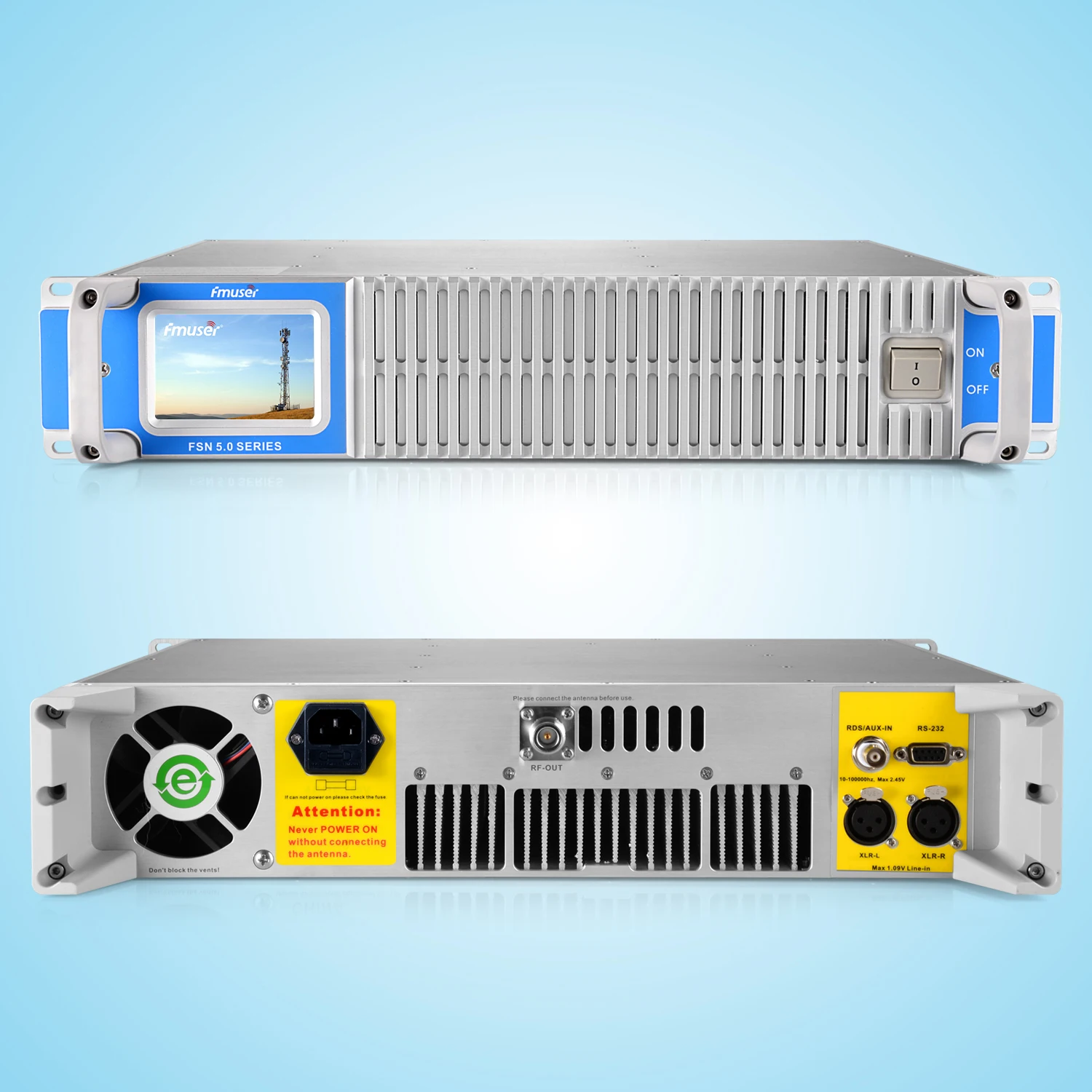

This 600W FM broadcast transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance.

The DSP(Digital Sound Processing) technology makes the FSN-600T 600W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.

As quality assurance, FMUSER Provides 5 YEAR warranty for this FMUSER FSN-600T 600W Professional FM transmitter. , you’ll have no worries to use it for the radio station.

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:

1)OVERHEAT PROTECTION:

The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.

SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.

When the fan stopped running, there will be alarming message showing on the screen like the following:

4)FREQUENCY AUTO MATCHING:
The 600w FM transmitter auto scans the best matching frequency on antenna to maximize the broadcasting efficiency at minimum SWR ratio, this ensures the best performance from both the transmitter and antenna.

When audio mixers are connected with the 600w FM transmitter through the XLR Balanced audio input interface, the transmitter will provide plenty of options for the modulation to best match with the mixer.

This FSN-600T 600w FM transmitter is designed with a precisely sensitive touch screen in replace of the control buttons on previous transmitters. With all information displayed clearly on the screen, users can control and configure all parameters very easily.

7)FLEXIBLE AUDIO OPTIONS
The pre-emphasis of 600w FM transmitter are flexible to choose among 0US / 50US/ 75US, users can choose the best match mode according to their own needs.

8)ADJUSTABLE POWER OUTPUT
The RF out of this 600w FM transmitter is continuously adjustable from 0-600 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...600w..., with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.

9)LONG COVERING RADIUS

RF Part:

RF output connector: N female

Audio input: -19dB ~ 5dB

General Features:
Power supply voltage range: 110V ~ 260V
Operating temperature range: -10 to 45 ℃
Work mode: continuous work
Cooling method: air cooling
Cooling efficiency: <95%
Work Altitude: <4500M
Power consumption: 1500VA
Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack.
Weight: 12Kg

PACKAGE DETAILS:
1 X 600W FM Transmitter with touch screen

1 X Power Cord
