8ch onvif POE NVR CCTV System with 2.8-12mm Zoom Varifocal Lens P2P 1080P HD IP Camera Indoor Outdoor Home Security Kit | Безопасность и












8ch onvif POE NVR CCTV System with 2.8-12mm Zoom Varifocal Lens P2P 1080P HD onvif IP Camera Indoor Outdoor Home Security Kit

>Max 256Mbps incoming bandwidth
>HDMI / VGA simultaneous video output
>4channel synchronous realtime preview
>ONVIF Version 2.2 conformance, compatible with other brand of cameras
>3D intelligent positioning with PTZ camera
>Support 1 SATA HDDs up to 8TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS, Mobile view PoE NVR Model -NVR7004PL/NVR7008PL Type 4*1080P/8x 1080P Chip HI3515C Digital Input  4ch 1080P    8ch 1080p Video Output  1*HDMI+1*VGA Audio In/Out NO Alarm In/Out NO Recording 1080P/720P/960H/D1/HD1/CIF/QCIF Playback 1*1080P HDD 1 X SATA (Up to 4TB) RS232 NO RS485 PTZ YES WIFI/3G NO Power Supply 48V1.5A Power Adaptor, PoE, PoE distance 100meters Unit Size 255mm* 218mm* 43mm Packing Size 345mm*275mm*95mm Weight 1.6KG Mobile software xmeye Cloud address xmeye.net System Operating system Embedded LINUX operating system   System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. Display Operation interface 16 bit real color GUI interface support mouse operation Display screen (Take all analog input as an example, others are depended on the selected channel mode) 1/4 /9 screen Video Video standard PAL(625 lines,50fps); NTSC(525lines,60fps) Image encode H.264(High Profile) Monitor quality Monitor:D1;VGA;1080P;HDMI:1080P Playback quality Max support 1080P under HVR and NVR input mode; Max support 960H under DVR input mode Video input(IP) 4*1080P/4*960P/4ch*720P Video Recording 4*1080P/4*960P/4ch*720P Motion detection Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest) Trigger recording,PTZ movement,tour,alarm,e-mail& FTP Audio Audio compression G711A Record and playback Record mode Manual>Alarm>Video Detection>Continuous Local playback 1/2/4channel playback simultaneously Video search Time/Date,Alarm,Motion Detection & exact search(accurate to second) Storage and back up Space occupation Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel Video storage Local HDD,Network Back up mode Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy) Interface BNC input N/A Video output 1ch VGA output, 1ch HDMI Audio input N/A Audio output NO Alarm input NO Alarm output NO Network port RJ45 10M/100M self-adaptive Ethernet port PTZ control 1 RS485;1 RS232 support multi kinds of PTZ Protocol USB port 2*USB2.0 port for mouse and backup HDD port 1 SATA(each max support 1* 4TB) Wireless port NO 3G,WIFI(extension via USB port) ONVIF STANDARD other Tour Yes Remote controller Optional

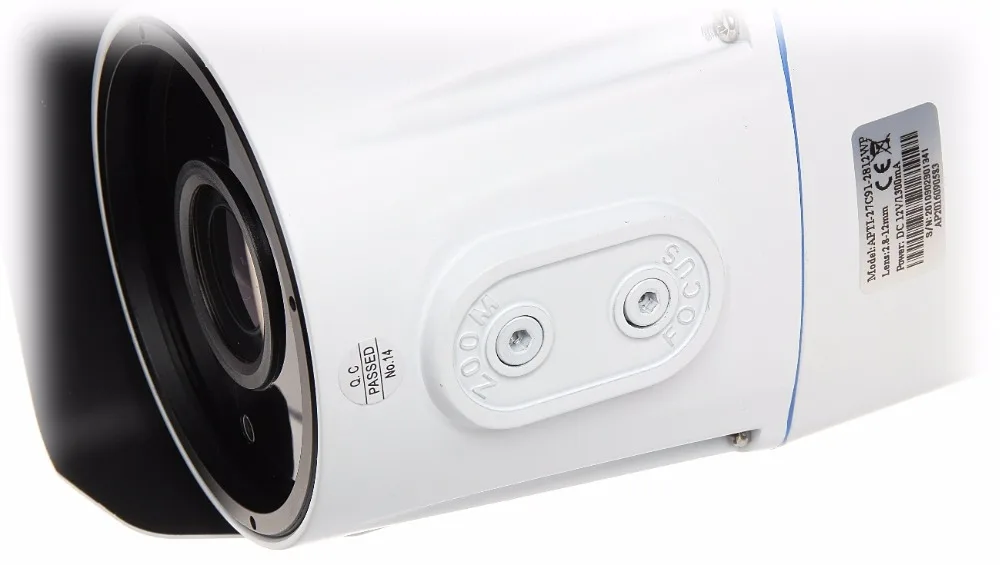

Side view:

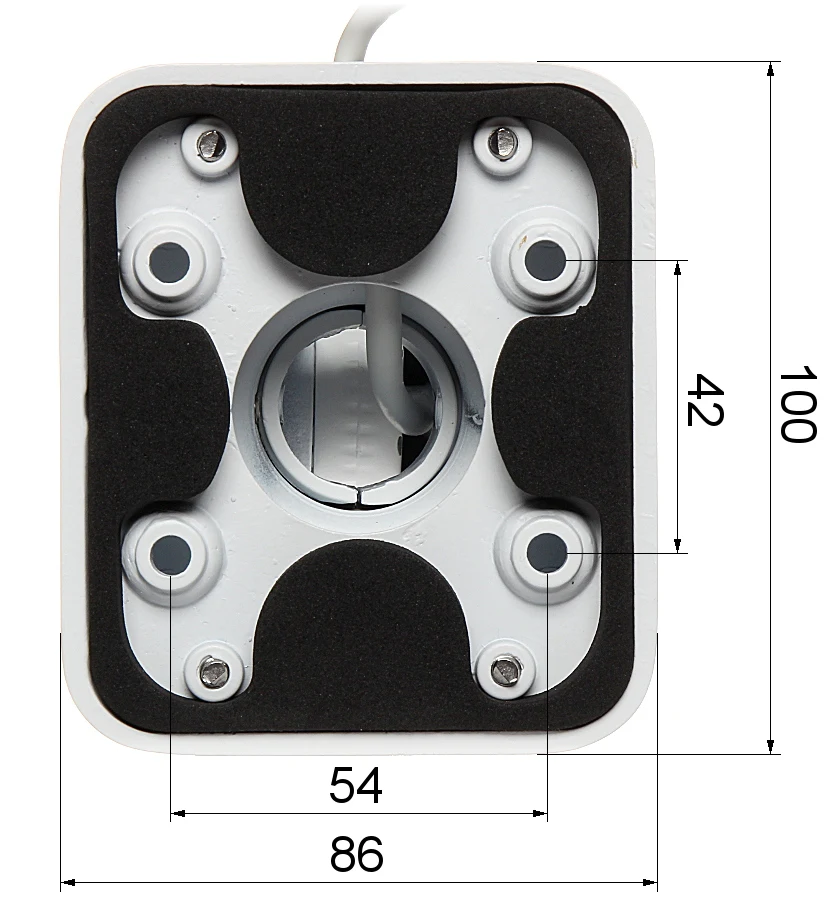

Bottom view:

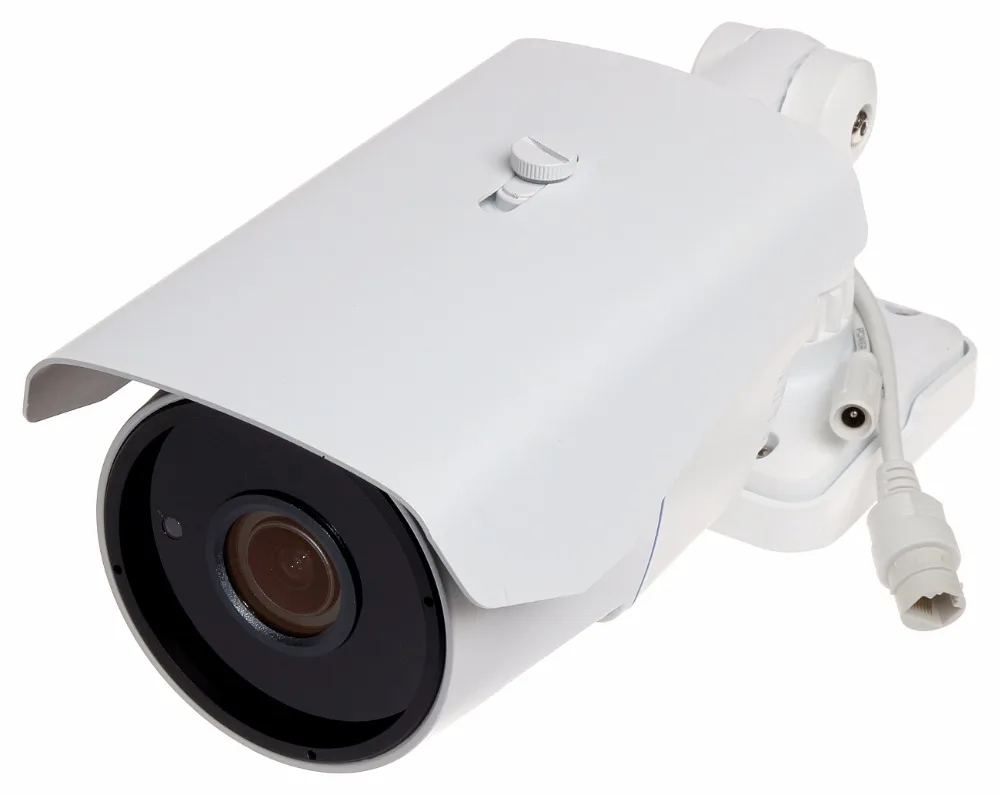

Mounting side view:

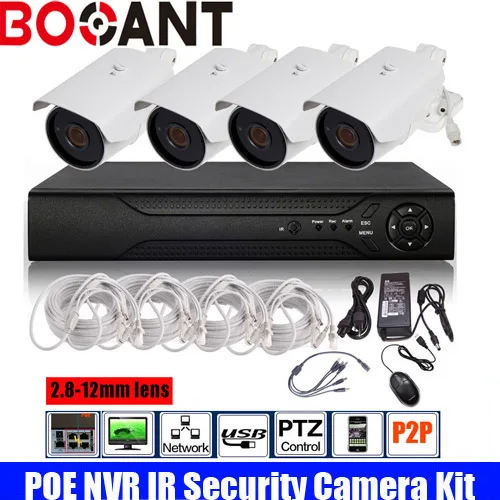

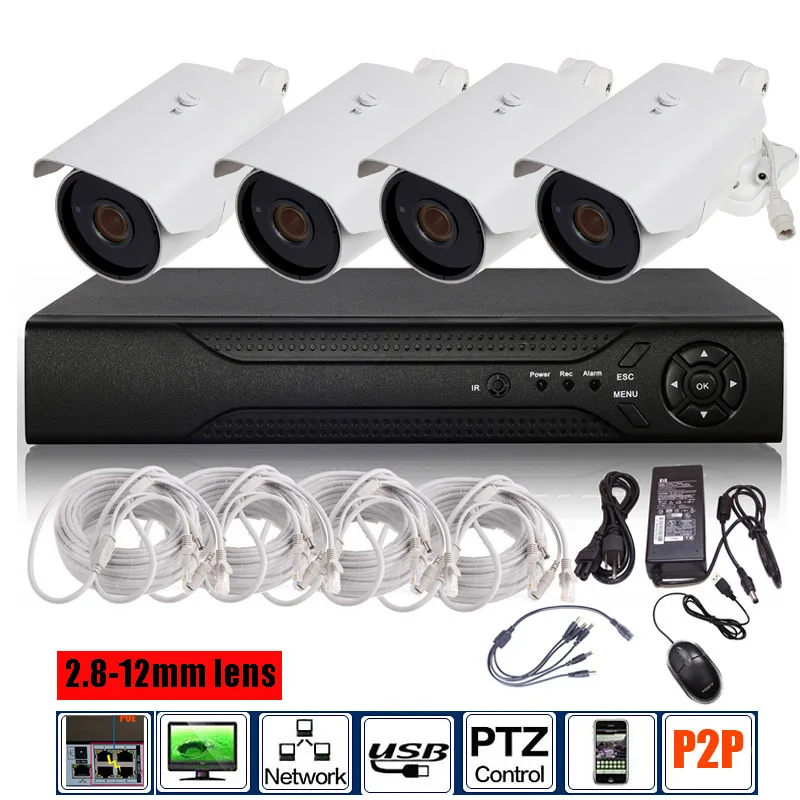

Package Includes       this is 1080P 2.0MP HD Varifocal lens Camera POE CCTV System

 1 X 1080P 4CH POE NVR

 1 X 48V Power Supply for NVR

 1 x CD software

 1 X USB Mouse

 1 X User's Manual

 4 X 1080/960P/720P 2.8-12mm varifocal lens POE Cameras ( ONLY 4 Cameras )





NO HDD or 1TB HDD you can choose





If you need HDD driver,please check here



If you need internet cable please select this style

More dahua poe nvr can select here











Operation Overview:











Credit cards are welcome through our We also accept bank account deposit/transfer,you can contact with us for this payment!





Overstep is the  best wholesell agent for Brand IP camera in China market,

after you finish the order,



please can contact with us,and we have  and

for you upgrade in wholelife!

Also if you canwith =

your will get  2 years warranty and wholelife upgrade soft free support!









1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer some unbranded products(without DAHUA brand on the product) from 2015;some style will havebot dahua logo,please understand!

2.  Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently  , please contact us before you pay.   all dahua products we can send you in 15- 25days normally if we havenot stock  ,If you cannot wait, please don't place order;

3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;

4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;

5.For payment, we also accept T/T and Western Union.

6.For shipping, we set EMS by default but other shipping methods like DHL, UPS, FEDEX etc. are also available. You can just pay for the EMS shipping. We will evaluate which express is the best for your country and then use the best one if the cost you have paid is enough or similar. Or if you like any express company, please contact with us before you pay. The shipping cost charged by the system is not correct normally when you order different items together, so please remember to ask us to check the exact cost and revise price for you before you order;

7.For product warranty, we provide 2-year warranty period(since the date you receive the order). Shipping cost of returning the defective product will be borne by the buyer after 1 years later

8.If you have any question, please leave message to us. We will reply you as soon as possible;

9.Please confirm the delivery for us after you have received the order and everything is ok;

10.If you are satisfied with our product and service, please give us a good feedback . Cutomers who LOVEs opening dispute or giving bad feedback without appropriate reason are not welcomed.

and any clients have collect our website for the following QR Code we will send special gifts and more discount!
