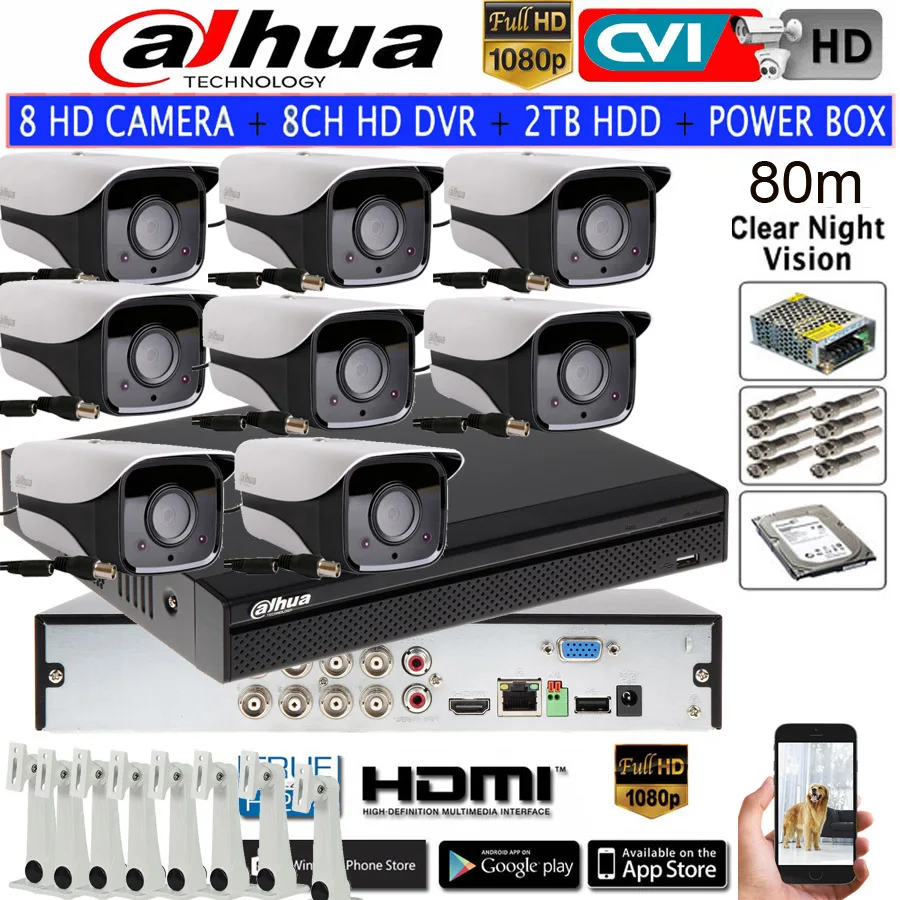

DAHUA 1080P IR80M CVI Security CCTV camera HAC-HFW2208M-I2 bullet HDCVI 8CH HCVR5108HS-S3 kit HDD with power box | Безопасность и





DAHUA 1080P IR80M CVI Security CCTV camera HAC-HFW2208M-I2 bullet HDCVI camera 8CH HCVR5108HS-S3 camera kit HDD with power box

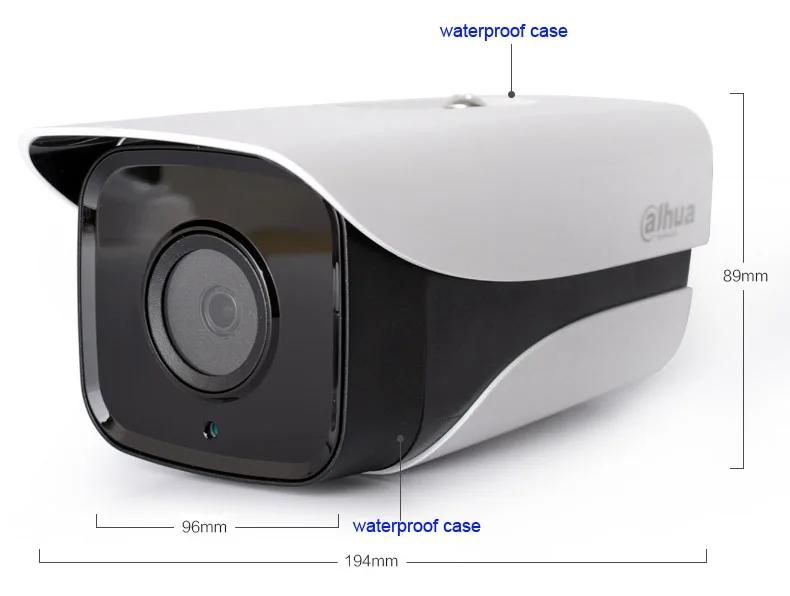

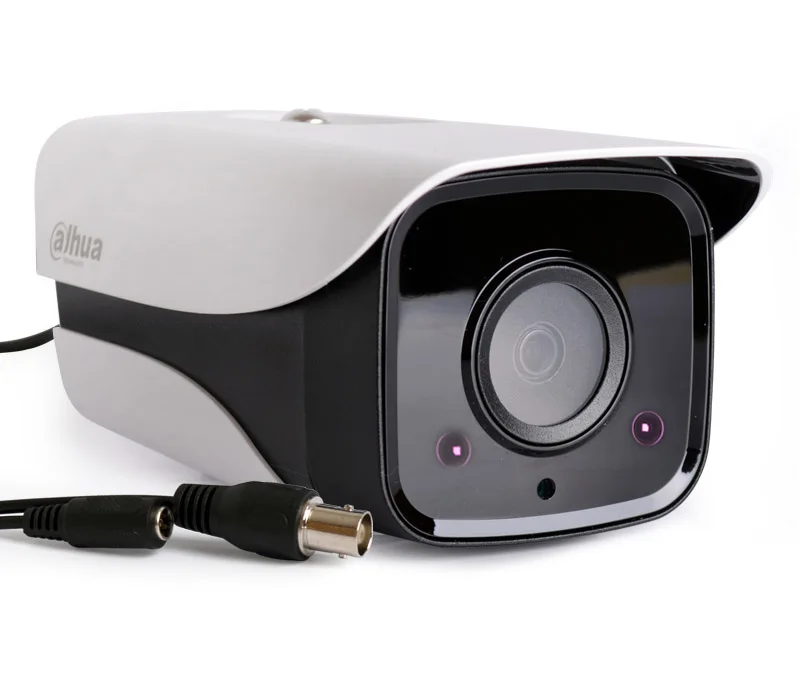

Newest HD 1080P Dahua HDCVI Camera 2MP DH-HAC-HFW2208M-I2 Network IR Bullet Security Camera CCTV IR distance 80m HAC-HFW2208M-I2







Features:

Using high-performance megapixel CMOS image sensor, supports 1080P / 720P HD output; Using independent intellectual property rights of transmission technology to support 75-3 coaxial line real-time lossless transmission distance of up to 300 meters; Support a wide dynamic range up to 120dB, suitable for backlighting environmental monitoring; Support HD SD standard two video output, the user can freely select the video source; Using high-performance 3D noise reduction algorithm, the image effect is superior; The minimum illumination of 0.001Lux, low illuminated screen bright, rich image detail, no smear; Support ICR infrared filter automatic switching, automatic color to black function, to achieve day and night monitoring; Support intelligent infrared function, effectively prevent short-range infrared over exposure; Support the maximum infrared radiation distance of 80 meters; Support automatic exposure, automatic white balance function, suitable for a variety of scene monitoring; Support OSD menu control, providing a variety of styles of custom effects; Support the dynamic domain detection function, can achieve alarm linkage; Support analog UTC coaxial control, the user can remotely control; Image color reproduction is high, the image realistic; Products -30  ~ +60  high temperature hot and cold cycle testing, easy to deal with harsh environments; Support voltage detection alarm settings, DC12V ± 25% wide voltage power supply; Protection class IP67; Product packaging after 3-dimensional vibration (3G) test to ensure transport safety; Follow the international HDCCTV 2.0AT standard, the global common; Follow the national standard GA / T 1211 HD video standards;

Specification:

Sensor Type 1 / 2.8 inch 2.1 Mega Pixels CMOS Signal system PAL / NTSC Sensor effective pixels 1945 (H) × 1097 (V) Minimum illumination color 0.001Lux @ (F1.2, AGC ON), 0 Lux with IR Electronic shutter PAL: 1.3s ~ 1 / 30,000s The maximum infrared distance is 80m Day and night conversion ICR infrared filter automatically switches Wide dynamic 120dB White balance support Backlight compensation support Strong light suppression support Noise reduction Supports 2D and 3D digital noise reduction SNR> 65dB Lens parameters Lens focal length 3.6mm / 6mm / 8mm / 12mm / 16mm optional Lens mount M12 Video parameter Video output 2 way The video standards follow the HDCVI and CVBS standards Video frame rate 50Hz: 1920 × 1080 @ 25fps, 1280 × 720 @ 25fps, 1280 × 720 @ 50fps; Functional infrared light control scheme photosensitive control program OSD menu support coaxial control Image mirroring support Anti-flicker support Anti-smear support Digital amplification support Dynamic detection support Privacy masking support General parameters Power supply DC 12V ± 25% Power consumption 5.8W Max Operating temperature -30  ~ +60  Operating humidity <95% (non-condensing) Protection class IP67 Size 194 × 96 × 89 (mm) Weight 610g Installation Support wall, ceiling installation (shield, bracket include

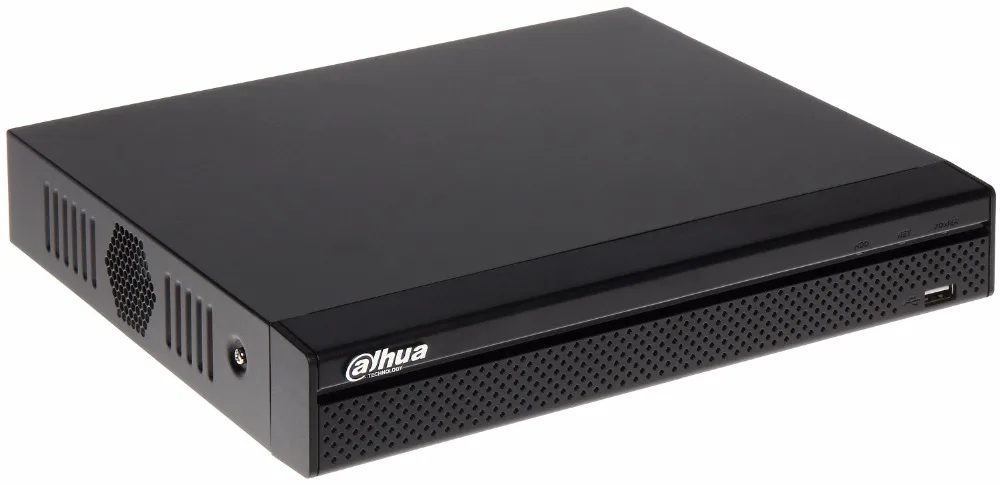

Tribrid DVR working in standards: HD-CVI - High Definition Composite Video Interface, PAL, TCP/IP.


The HD-CVI interface allows to transmission of analog, composite video signal via coaxial cable. Via single coaxial cable can be transmitted three signals: video, audio and control. It enables the transmission of HD resolution images for even 500 m distance with keeping the low costs of the installation. During transmission there are no delays and is maintained the original, high quality image.















Standard: HD-CVI, PAL, TCP/IP Maximal total frame rate: HD-CVI, PAL :
140 fps @ 1920 x 1080 px,
200 fps @ 960 x 1080 px,
200 fps @ 1280 x 720 px,
200 fps @ 960 x 576 px,
200 fps @ 704 x 576 px IP :
300 fps @ max. 2592 x 1944 px Recording speed adjustment: HD-CVI, PAL
1 ... 25 fps @ 1920 x 1080  - Applies to channels: 1, 5
1 ... 15 fps @ 1920 x 1080  - other channels
1 ... 25 fps @ 960 x 1080
1 ... 25 fps @ 1280 x 720
1 ... 25 fps @ 960 x 576
1 ... 25 fps @ 704 x 576
for each channel IP
1 ... 25 fps @ max. 2592 x 1944

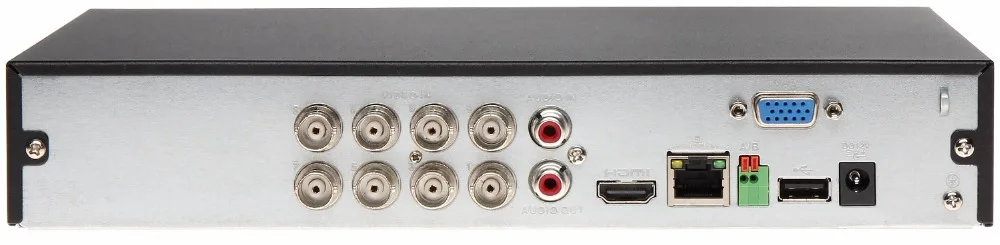

for each channel Operation modes: 8 x HD-CVI / PAL 7 x HD-CVI / PAL + 1 x IP max. 5 Mpx 6 x HD-CVI / PAL + 2 x IP max. 5 Mpx 5 x HD-CVI / PAL + 3 x IP max. 5 Mpx 4 x HD-CVI / PAL + 4 x IP max. 5 Mpx 3 x HD-CVI / PAL + 5 x IP max. 5 Mpx 2 x HD-CVI / PAL + 6 x IP max. 5 Mpx 1 x HD-CVI / PAL + 7 x IP max. 5 Mpx 8 x HD-CVI / IP / PAL + 4 x IP max. 5 Mpx Video inputs: 8 pcs BNC, HD-CVI / PAL Video outputs: 1 pcs HDMI
1 pcs VGA Audio inputs: 1 pcs CINCH Audio outputs: 1 pcs CINCH Image compression method: H.264 Number of compression levels: 4  Image records resolutions: 2592 x 1944
2048 x 1536
1920 x 1080
960 x 1080
1280 x 720
960 x 576
704 x 576
352 x 288  Recording modes: Manual, Motion Detection, Schedule Supported hard drives: 1  x 6 TB SATA External storage devices backup: Save single frames and whole records from DVR drive to the USB drive Searching and playback the records: Records searching: by time + timeline with record type. Playback: forward, fast, slow, step
Advanced searching (to the one second accuracy) Network functions: Network Client Software and IE browser: live view, playback and backup the records, partial configuration of the recorder parameters Mobile phones support: Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Lite iOS (iPhone): Free application iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus Multi-operation: Pentaplex Alarm inputs / outputs:   PTZ control: RS-485 - PELCO-D/P and others
IP Speed Dome Cameras, Control compatible with coax PTZ HD-CVI Motion Detection: Split the screen into zones 22 x 18 motion zones
Very good sensitivity after motion detection records detected channels only Image analysis: Crossing the line (tripwire), intrusion, abandoned/missing object, face detection Mouse support:   IR remote controller in the set:   Power supply: 12 V DC / 2 A (power adapter included) Weight: 0.938 kg Dimensions: 260  x 235  x 47 mm Supported languages: English, Bulgarian, Czech, Finnish, Greek, Polish, Romanian, Serbian, Slovenian, Hungarian Country of origin: China Manufacturer / Brand: DAHUA













Why Choose HDCVI (High Definition Composite Video Interface)?

1.HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).

2.HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.With no new cabling or IP hassle required, HDCVI is one option for upgrading existing systems from standard definition to high definition, offering longer transmission via coaxial cable and lower total cost.

3.Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m. Connectors and welding process also affect the transmission distance.

4.HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation.





























Credit cards are welcome through our We also accept bank account deposit/transfer,you can contact with us for this payment!





Overstep is the  best wholesell agent for Brand IP camera in China market,

after you finish the order,



please can contact with us,and we have  and

for you upgrade in wholelife!

Also if you canwith =

your will get  2 years warranty and wholelife upgrade soft free support!









1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer some unbranded products(without DAHUA brand on the product) from 2015;some style will havebot dahua logo,please understand!

2.  Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently  , please contact us before you pay.   all dahua products we can send you in 15- 25days normally if we havenot stock  ,If you cannot wait, please don't place order;

3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;

4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;

5.For payment, we also accept T/T and Western Union.

6.For shipping, we set EMS by default but other shipping methods like DHL, UPS, FEDEX etc. are also available. You can just pay for the EMS shipping. We will evaluate which express is the best for your country and then use the best one if the cost you have paid is enough or similar. Or if you like any express company, please contact with us before you pay. The shipping cost charged by the system is not correct normally when you order different items together, so please remember to ask us to check the exact cost and revise price for you before you order;

7.For product warranty, we provide 2-year warranty period(since the date you receive the order). Shipping cost of returning the defective product will be borne by the buyer after 1 years later

8.If you have any question, please leave message to us. We will reply you as soon as possible;

9.Please confirm the delivery for us after you have received the order and everything is ok;

10.If you are satisfied with our product and service, please give us a good feedback . Cutomers who LOVEs opening dispute or giving bad feedback without appropriate reason are not welcomed.

and any clients have collect our website for the following QR Code we will send special gifts and more discount!
