R: V20150908-10-27 Data sheet   User Manual

Input:ASI, IP, Tuner   Output:IP-MPTS, IP-SPTS, ASI, CVBS, YPbPr, SDI, HDMI

Outline

FUTV407X/FUTV409X HD IRD is FMUSER’s new design IRD with LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs. With the CAM/CI slot, FUTV407X/FUTV409X can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.

Features

* Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input optional

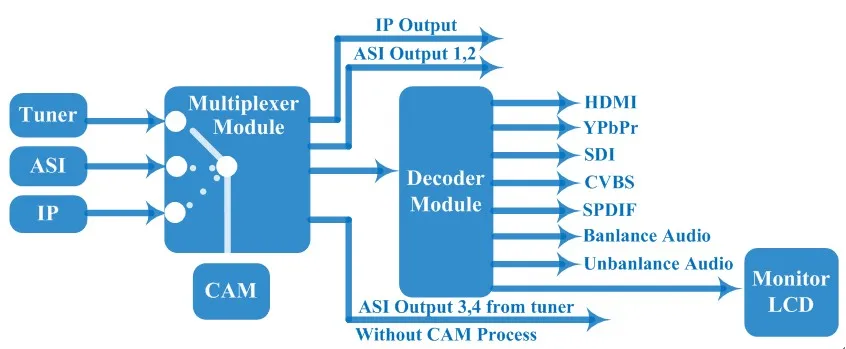

Blocks Diagram

Specificaions

Input Interface

Tuner

1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional)

ASI

1 ASI IN (support 188/204 package format)

IP

1 IP (100M, RJ45 Port) UDP, RTP/RTSP

Demodulating Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Input Frequency

30 MHz-1000 MHz

Constellation

16/32/64/128/256 QAM

DVB-T/T2

Input Frequency

30MHz -999.999 MHz

Bandwidth

6/7/8 M bandwidth

DVB-S

Input Frequency

950-2150MHz

Symbol rate

1-45Msps

Signal Strength

- 65- -25dBm

Constellation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Version 1

Input Frequency

950-2150MHz

Symbol rate

1~45 Msps

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

DVB-S2

Version 2

For 3975

Input Frequency

950-2150MHz

Symbol rate

QPSK, 8PSK:1~45 Msps

16APSK: 1~35 Msps

32APSK: 1~28 Msps

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Output

ASI Output

2 ASI output (after multiplexer)

2 ASI output (tuner input pass through)

IP output

Protocol: UDP, RTP/RTSP

1 MPTS * 8 SPTS (100M)

FUTV407x only

1 MPTS * 32 SPTS (1000M)

FUTV409x only

Video Output

1xCVBS(BNC): 576i*25fps, 480i * 29.97fps

1xYPbPr(BNC): 1080i*25, 29.97, 30fps; 720p*50, 59.94fps

1xHD/SD-SDI(BNC): 1080i*25, 29.97, 30fps; 720p*50, 59.94fps; 576i*25fps; 480i*29.97fps

1 x HDMI: 1080i*25, 29.97, 30fps; 720p*50, 59.94fps

Audio Output

Stereo unbalanced audio: BNC interface

Stereo balanced audio: XLR interface

Digital audio: SPDIF

Video Decoding

MPEG-2, MPEG-4

Audio Decoding

MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC

BISS De-scr

Mode 1, Mode E

NMS Port

Ethernet Port

10/100M

Protocols

NMS: TCP/IP

System

Management: front panel (LCD + Keyboard);

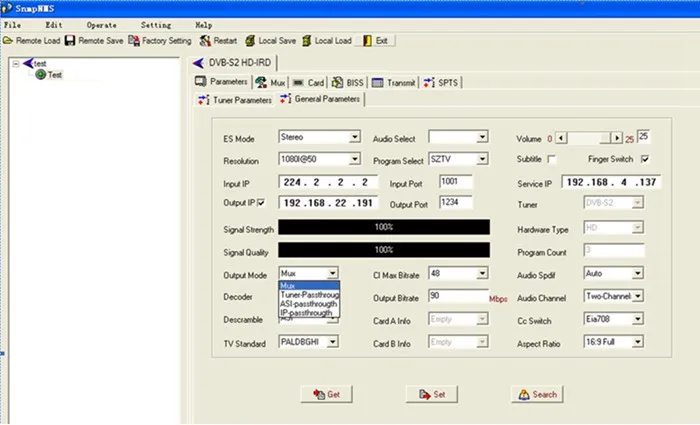

Network (NMS/SNMP)

Web-based NMS Management

English and Chinese interface conversion

Ethernet port for CPU/FPGA upgrade

USB port for decoder upgrade

LCD Monitor for decoding video

Miscellaneous

Dimensions

482mm*455mm*44.5mm

( L*W*H)

Approx weight

3.2kg

Power

<20W(Max)

Temperature

0-45C(Operating), -20-80C(Storage)

Order Information

FUTV4091/ FUTV4071 DVB-C HD IRD

FUTV4078/ FUTV4098 DVB-T2 HD IRD
