Characteristic     Use32positionARMProcessor design   SupportRS-232/RS-485/RS-422Three types of serial port   Support10/100M（Ethernet interface form)   Support300bps-115.2KbpsLine speed non blocking communication   SupportTCP、UDP、ARP、ICMP、HTTP、DNSandDHCPAgreement   Gateway support，Cross route communication   Support standardTCP/IP SOCKET Application access   SupportWindowsSerial driver mode   Support the virtual serial port drive access mode and the function of automatically recovering the connection after network interruption   Easy to use、Available for mass installationWindowsConfiguration tool   SupportWEBAnd serial port   Low power design   SupportDIN-RailGuide rail installation and panel installation   working temperature-25～70℃     brief introduction

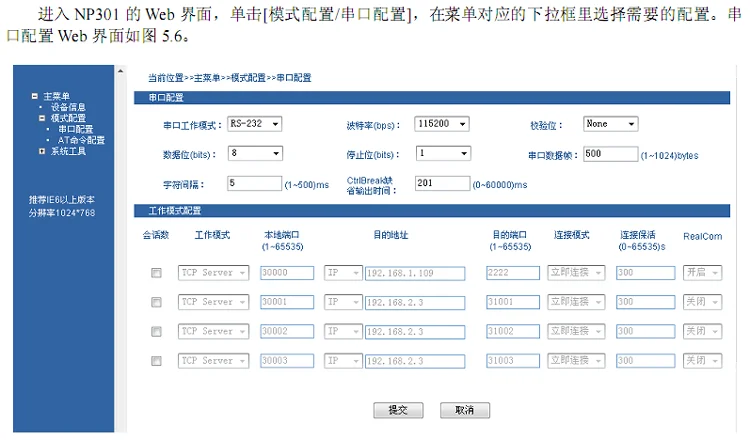

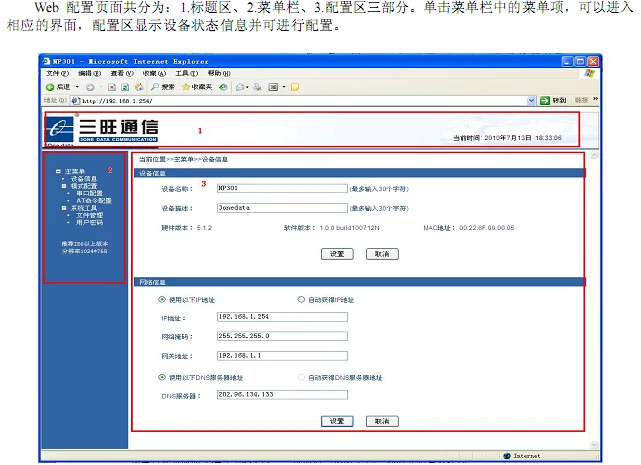

    NP301It is a serial networking server that enables the serial devices to have the networking ability immediately，Distributed serial devices、Centralized management of hosts through the network，Simple and easy、convenient。SupportTCP、UDP、ARP、ICMP、HTTP、DNSandDHCPAgreement，SupportWindows Native COM?TuenThe rein is far removed.Finger stampYongδA kind of?        in addition，Powerful based onWindowsManagement configuration tools andWEBManagement interface，Be able to guide users step by step to manage and configure devices，All devices can be realized through network or serial port，Gateway support、Cross route communication，User friendly settingsIPaddress、ServerandClientPattern、Packet size and so on。With simple settings, the serial devices can be connected to the Internet immediately。       Its appearance design supportDIN-Rail Rail mounting and panel mounting，Convenient for engineering use。



LAN   standard：10Base-T/100Base-T(X) Agreement：TCP、UDP、ARP、ICMP、HTTP、DNSandDHCPAgreement rate：10M/100M Operation mode：Full or half duplex Working mode：TCP Server、TCP Client、UDPandReal COM driverEtc Interface cache：Maximum support16KByte cache transmission distance：100rice Interface protection：1KVIsolated protection Interface form：RJ45   Serial port

standard：RS-232/RS-485/RS-422 check：None,Even,Odd.Space,Mark Data bits：5bit,6bit,7bit,8bit Stop bit：1bit,2bit Baud rate：300bps~115200bps flow control：SupportRTS/CTSFlow control or no flow control Direction control：RS-485Using data flow automatic control technology Load capacity：RS-485/422End support32Point polling environment（Customizable128spot） transmission distance：RS-485/422end1200rice，RS-232mouth15rice Interface protection：1500WSurge protection，15KVElectrostatic protection Interface form：RS-232End useDB9Male head，RS-485/422End use5Bit terminal block

  Power Supply    Power input：9~36V DC Power consumption：less than1W   work environment    working temperature：-25~70℃ Storage temperature：-40~85℃ Working humidity：5%~95%（No condensation）   Mechanical structure

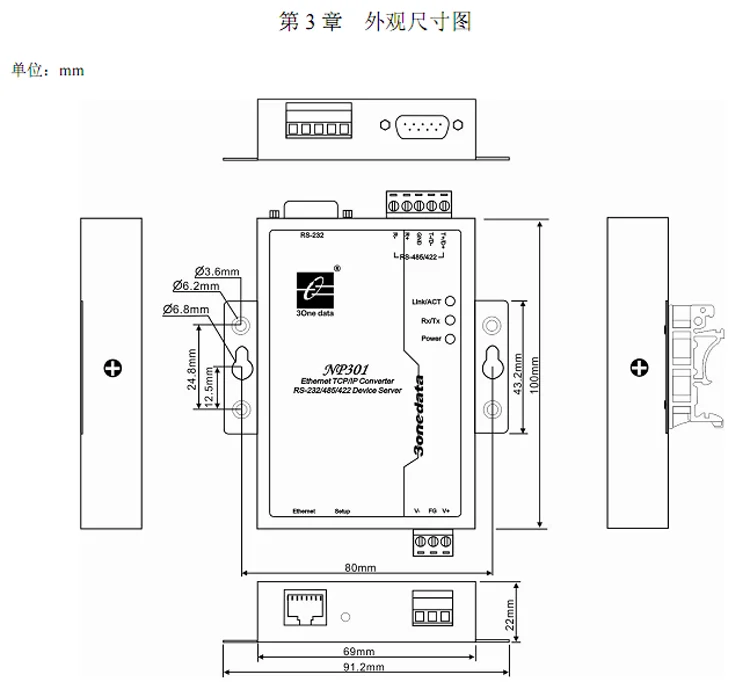

size（long×wide×high）：100mm×69mm×22mm colour：Bluish white Material Science：Iron（Shell） weight：230g
