Керамические двойные шарикоподшипники для турбокомпрессоров GT25R GT28R GT30R GT35R |

Керамические двойные шарикоподшипники для турбокомпрессоров GT25R GT28R GT30R GT35R |

Подставка для мебели

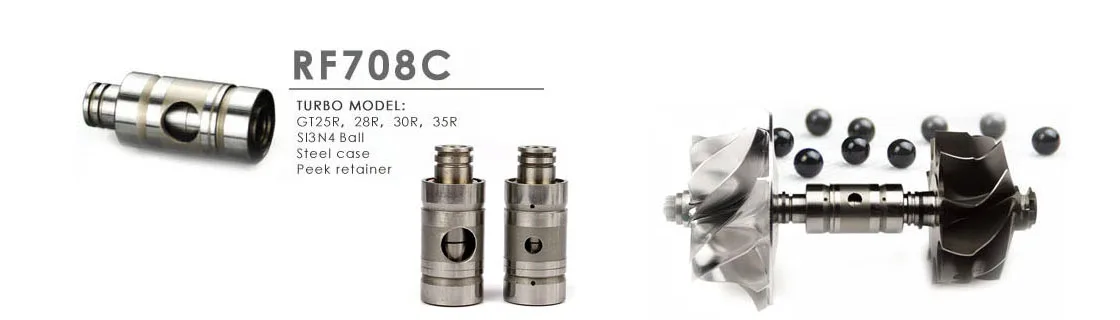

Model No.: RF708C Ceramic Ball: Si3N4 Ring Material: Heat resistance steel Retainer: Peek Bore Size: 22mm Outside Diameter: 41.65mm Precision Rating: P2 Seals Type: ZZ 2RS OPEN High Speed: Up to 150,000 r.p.m. Temperature Range: 40 to 350°C

APPLICATIONS

GT25R: GT2554R, GT2560R GT28R: GT285R, GT2859R, GT2860R, GT2860RS, GTX2860R, GTX2863R, GTX2867R, GT2871R, GT2876R GT30R: GTX3076R, GT3071R, GTX3071R, GT3076R, GT3076BB, GTX3076R GT35R: GTX3576R, GT3582R, GTX3582R

FEATURES

1. Heat-resistant steel for bearing rings, Superior heat resistance in high temperatures. 2. Ceramic balls with peek cages. Lighter and less heat generated for superior high-speed performance. 3. Superior seizure toughness and wear toughness, Long life even in debris-contaminated conditions

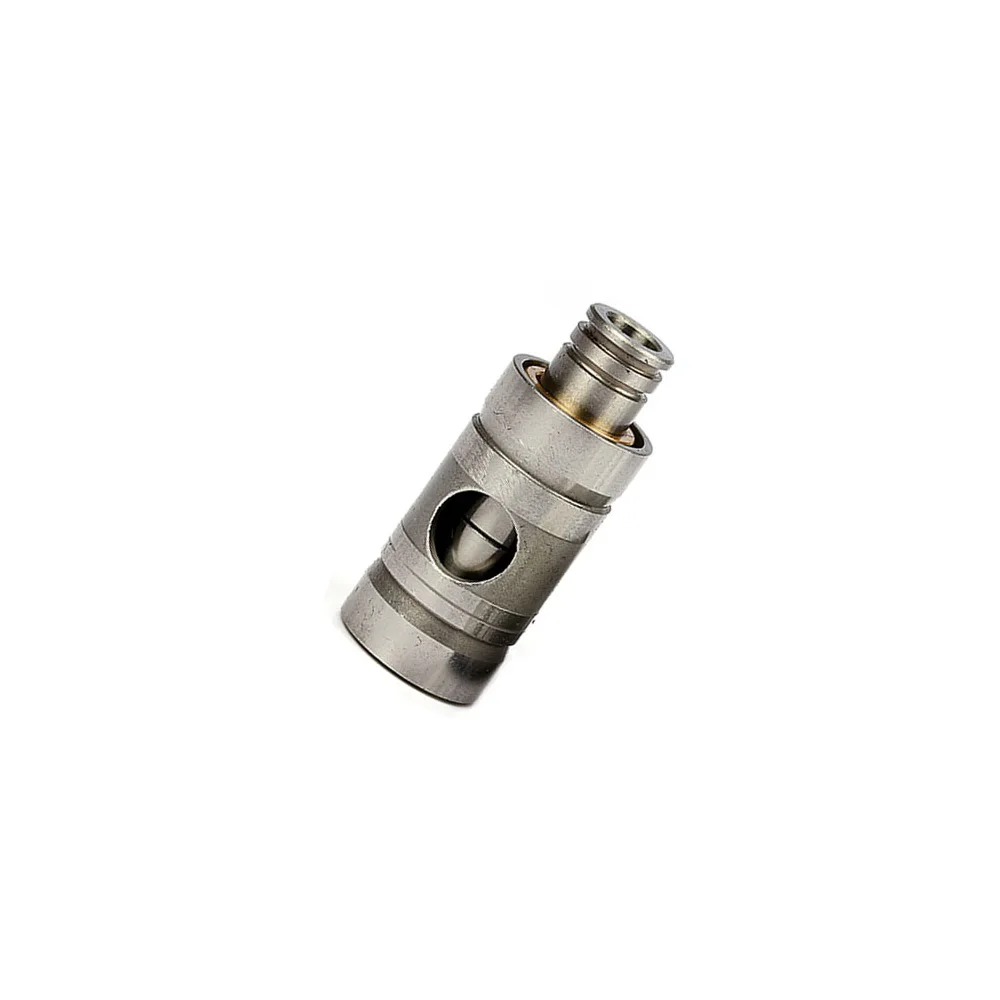

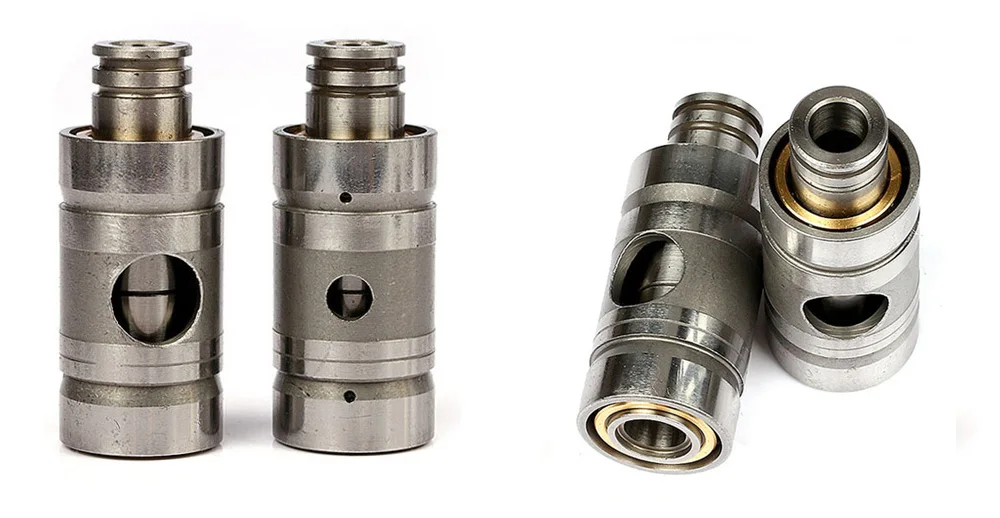

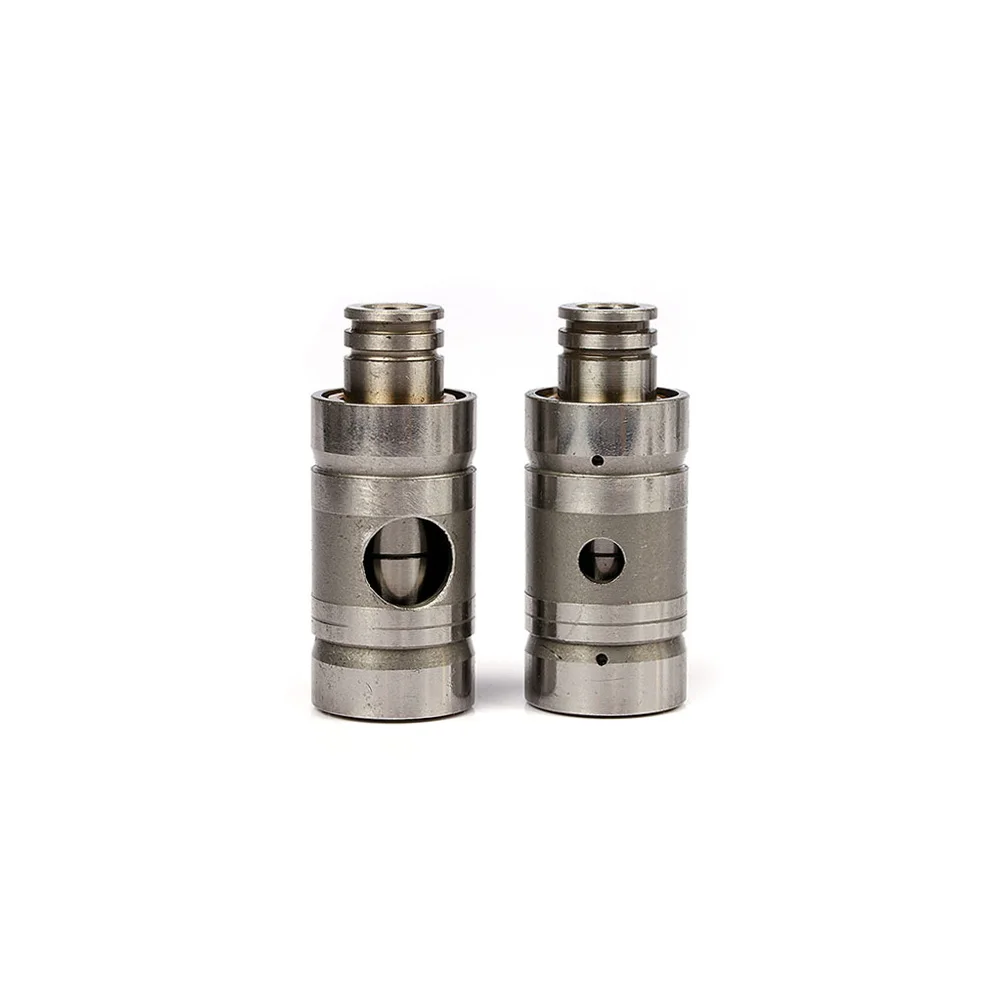

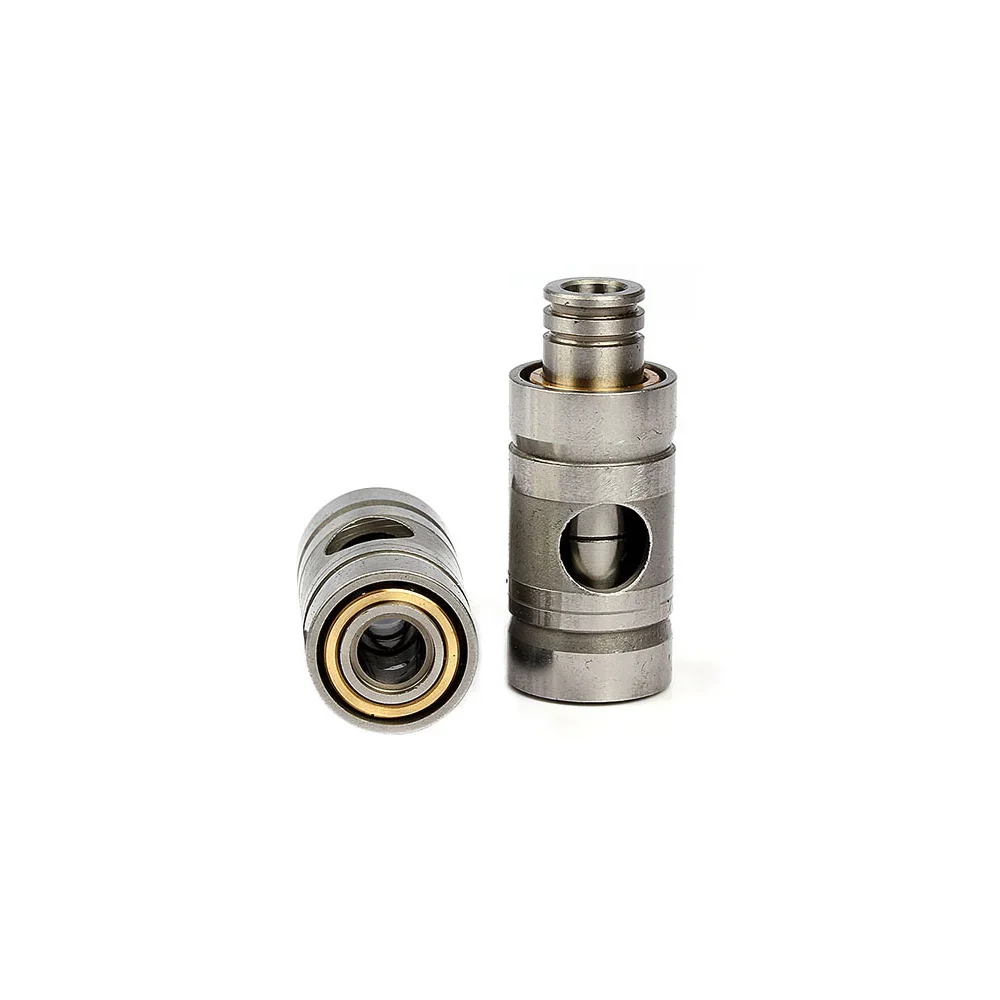

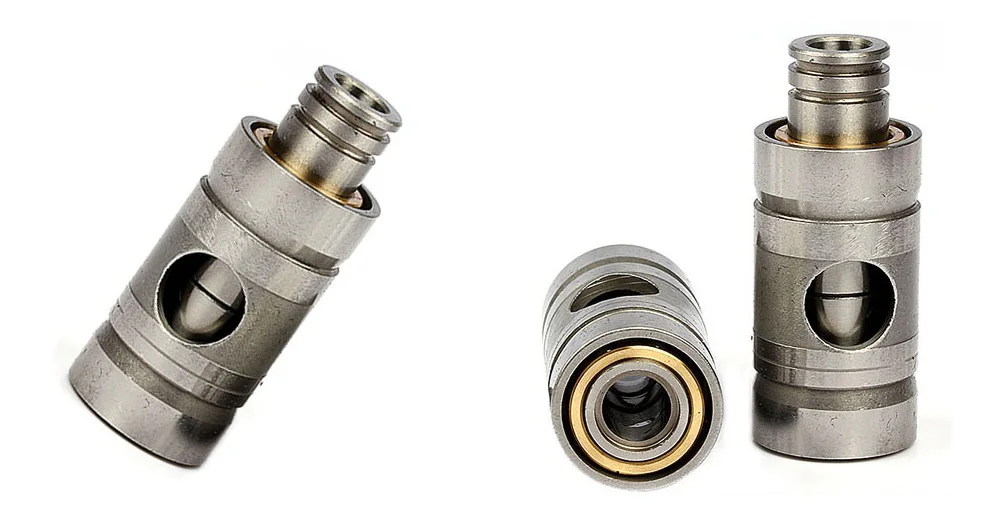

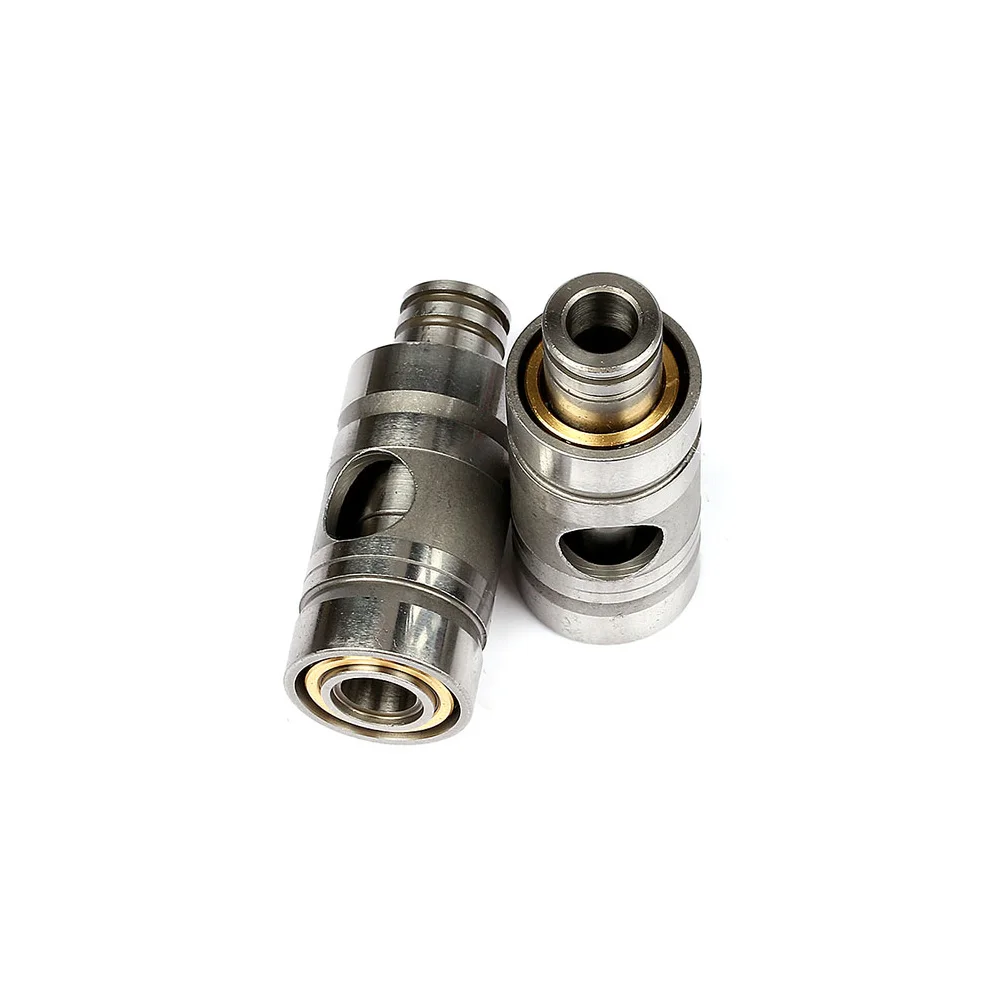

Ceramic Dual Ball Bearings

The biggest improvement compared with single ball bearing is it uses ball bearing for both sides, that is why called “dual”, The ball bearing cartridge gives better damping and control over the single ball bearing system, allowing enhanced reliability for both everyday and extreme driving conditions, In addition, the opposed angular contact bearing cartridge eliminates the need for the thrust bearing, commonly a weak link in the turbo bearing system.

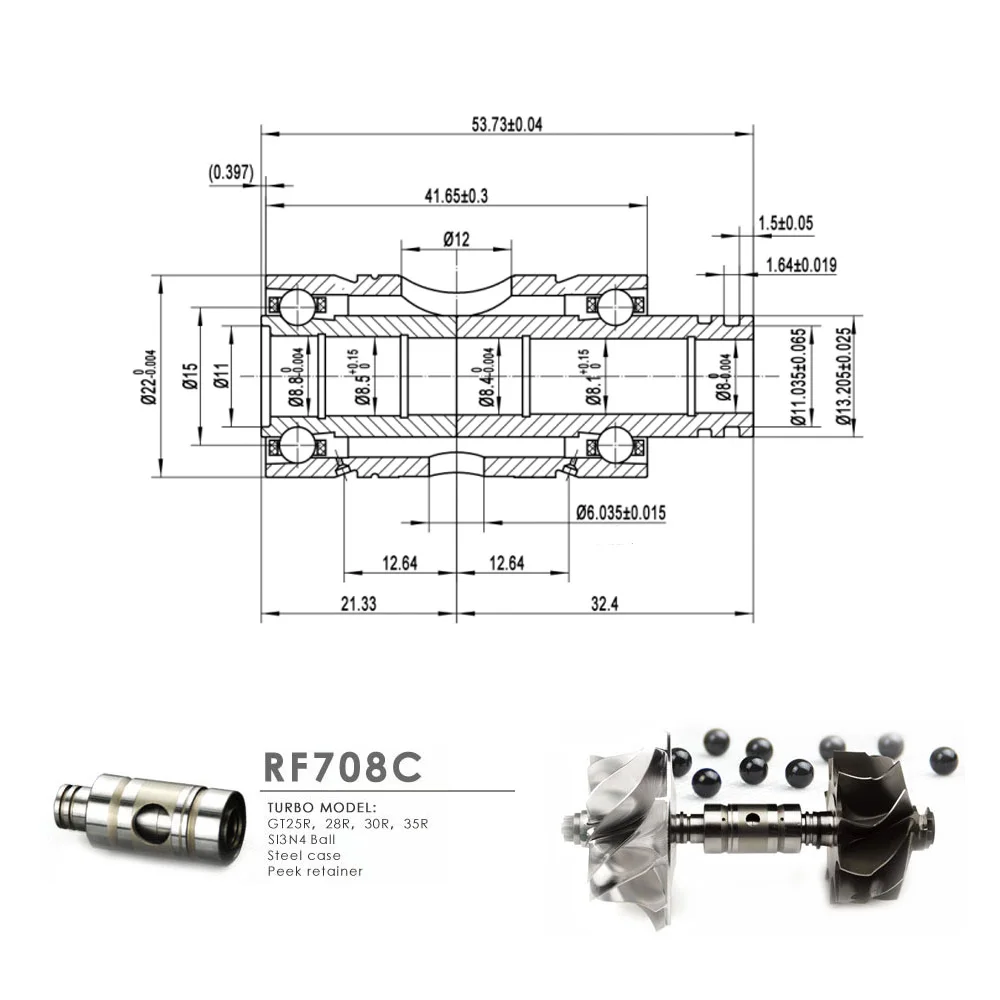

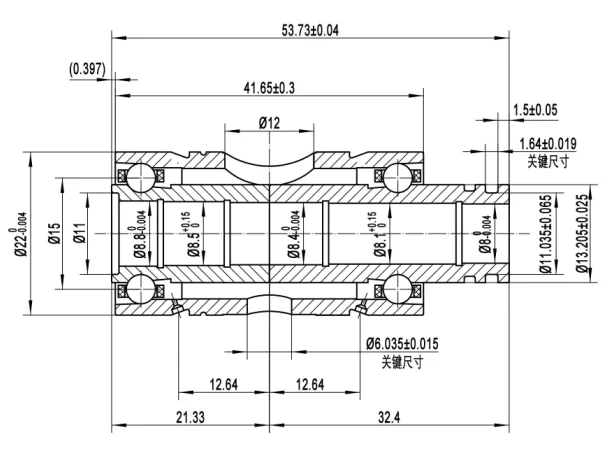

DRAWING

PACKAGES
