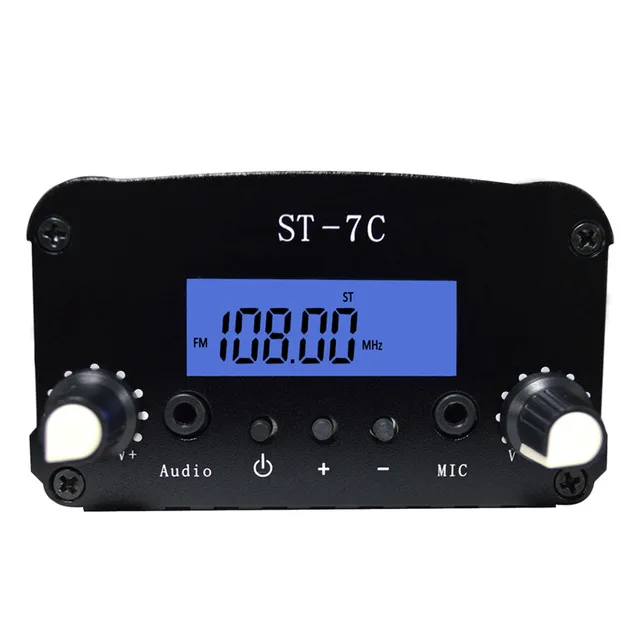

7w fm передатчик с антенной радио станция для церкви автомобиля дома конференции

7w fm передатчик с антенной радио станция для церкви автомобиля дома конференции

Introduction:

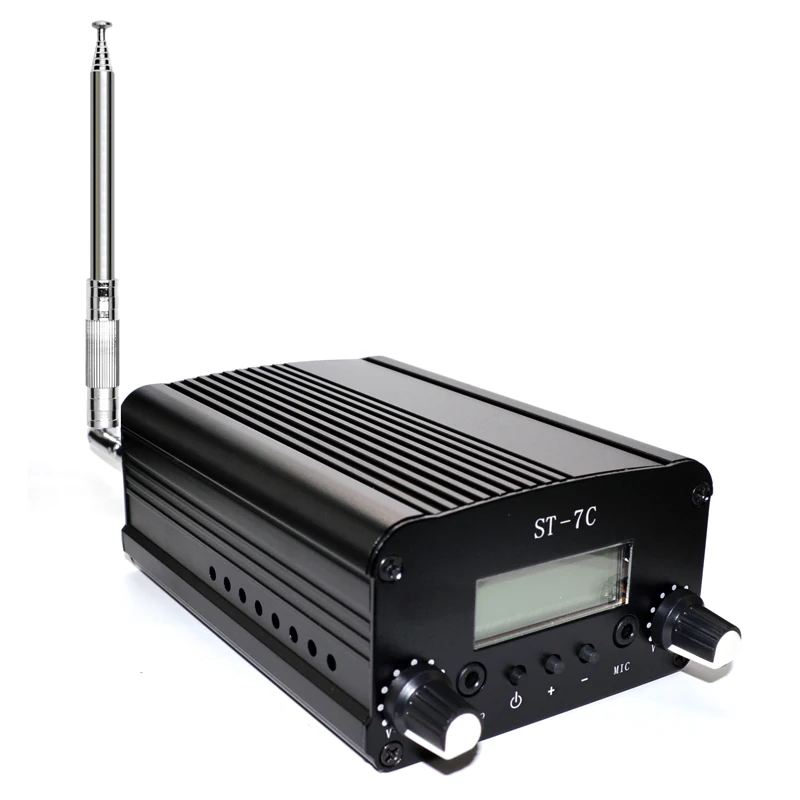

ST-7C FM stereo transmitter can be used for factories, schools, supermarkets, farms, Office space or create your own radio station.
ST-7C using advanced modulation system and built-in PLL frequency, audio pre-emphasis, limiter, and low-pass filter circuit.

Specification:

Phase Lock Loop (PLL) System

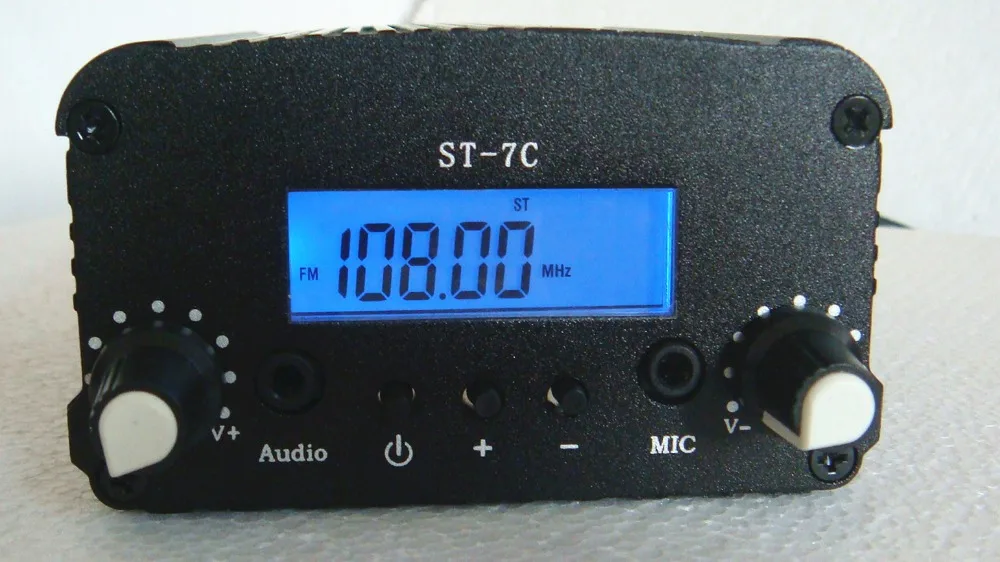

Easily choose your frequency LCD and buttons

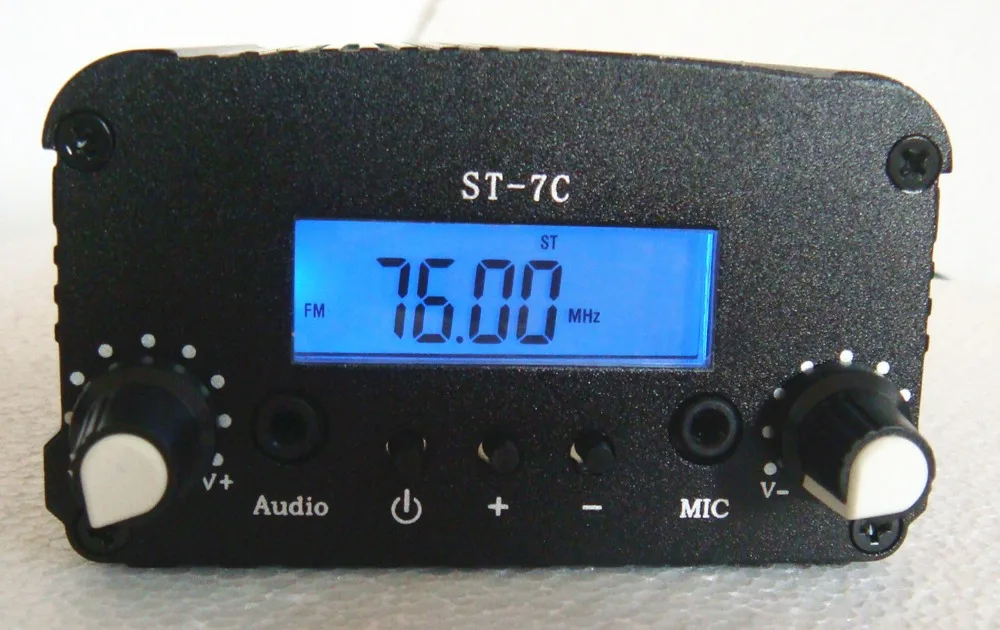

Freq range :76MHz~108MHz

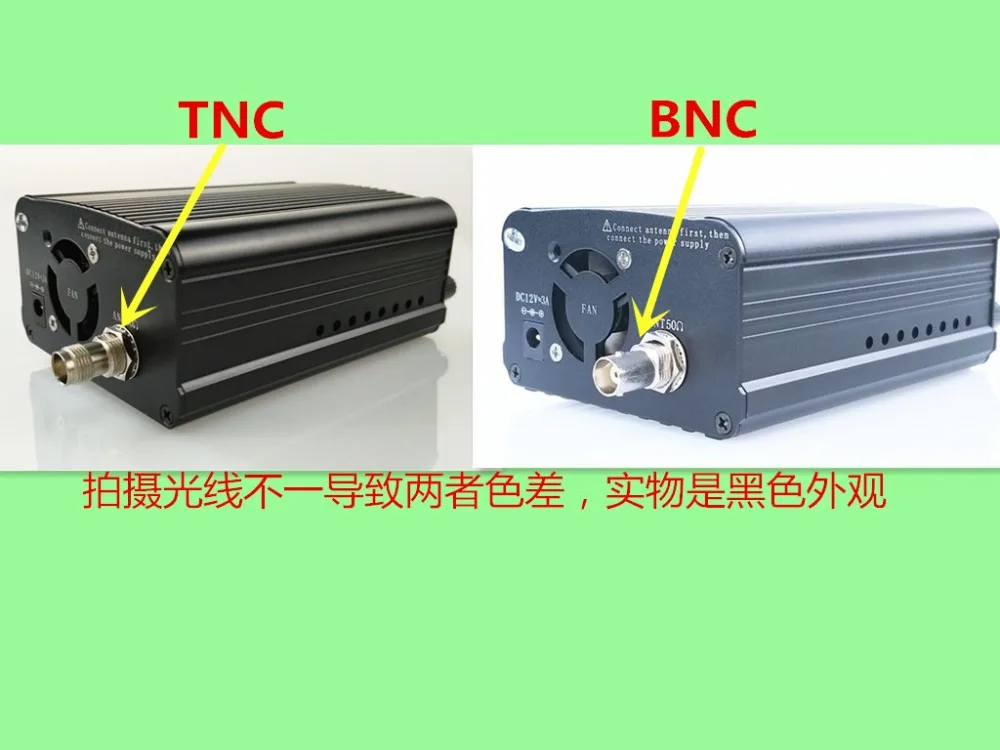

RF output impedance: 50 Ohm (BNC/TNC Type antenna output)
RF output power:1W/7W (Power can be switched)
Reference range: 1-3Km (A barrier-free environment)
Ripple or harmonic waves: <= -60dB
SNR: More than 60dB
Tuning Step : 100khz
Stability of Frequency: ±5ppm Less than 10ppm ( better system)
Freq. Response: -55dB(100~5000Hz); -45dB(5000 ~ 15000Hz )
Audio Input Connector: 3.5mm headphone connector
Microphone jack; it can be connected wih the microphone
Stereo channels crosstalk: -50dB
Audio frequency response: 20 to 15000Hz
Audio distortion: Less than 2%
Modulation: 15%
Power supply voltage: DC 10-14V (12V recommended)
Operating current: Less than 2A
Unit dimensions: 128mm(L) * 93mm(W) * 55mm(H)

Note:
* Connect antenna first ,then connect the power supply, otherwise, transmitter will be burned out.
* Select an unused FM station in your area.

Packing list:

1*7W FM transmitter

1*Small Antenna (NO included power)
