Description:

Product description:

This thickness gauge is used to measure the thickness of the plating or coating on the metal surface. It can measure the thickness of non-magnetic coating on the surface of magnetic materials such as steel/iron (such as chrome/paint/ceramic), and can also measure copper/aluminum. The thickness of the coating on the surface of the non-magnetic material (such as paint, etc.). The instrument's built-in precision probe automatically detects substrate properties and detects coating thickness through electromagnetic induction and eddy current effects.

Application areas:

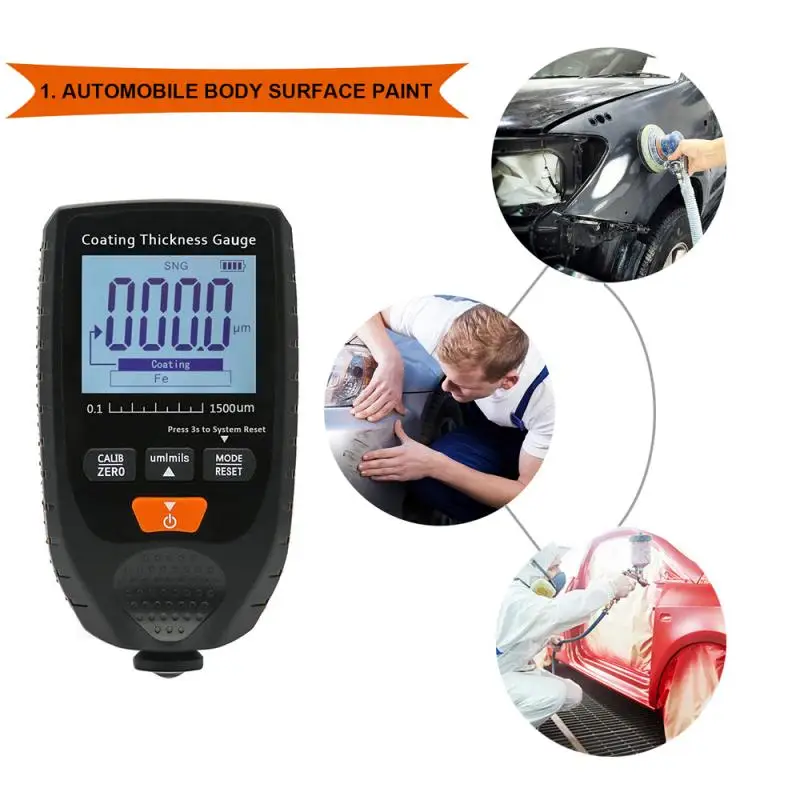

The instrument can measure the thickness of coating and coating without damage, fast and precise. It is widely used in the fields of manufacturing, metal processing, chemical industry, commodity inspection, etc. It is an essential instrument for material surface treatment engineering. Can work stably in the laboratory, on-site and outdoors.

Specifications:

Measuring principle:

      The instrument adopts two principles of electromagnetic induction and eddy current effect. Non-destructive measurement of the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron and its alloys) (such as paint, plastic, copper, chromium, zinc, etc.), and non-magnetic metal substrates (such as copper, aluminum, The thickness of the non-conductive coating on zinc, tin, etc. (oxide film, plastic, paint, etc.).

        The F-type probe applies the principle of magnetic induction: when the probe is in close contact with the coated magnetic substrate, the probe and the magnetic substrate form a closed magnetic circuit, and the thickness of the coating corresponds to the magnetic resistance of the magnetic circuit, which is achieved by detecting the change of magnetic resistance. The thickness of this coating was measured.

        The N-type probe applies the principle of eddy current effect: when the probe is in close contact with the coated non-magnetic metal substrate, the probe causes eddy current in the substrate, and the feedback effect of the eddy current on the probe corresponds to the thickness of the coating, and the feedback amount is detected. The purpose of measuring the thickness of the coating is achieved.

Package Included:

1*Thickness gauge

One piece of iron substrate, one piece of aluminum substrate

Standard film 5 pieces

1*user's manual

Notes:

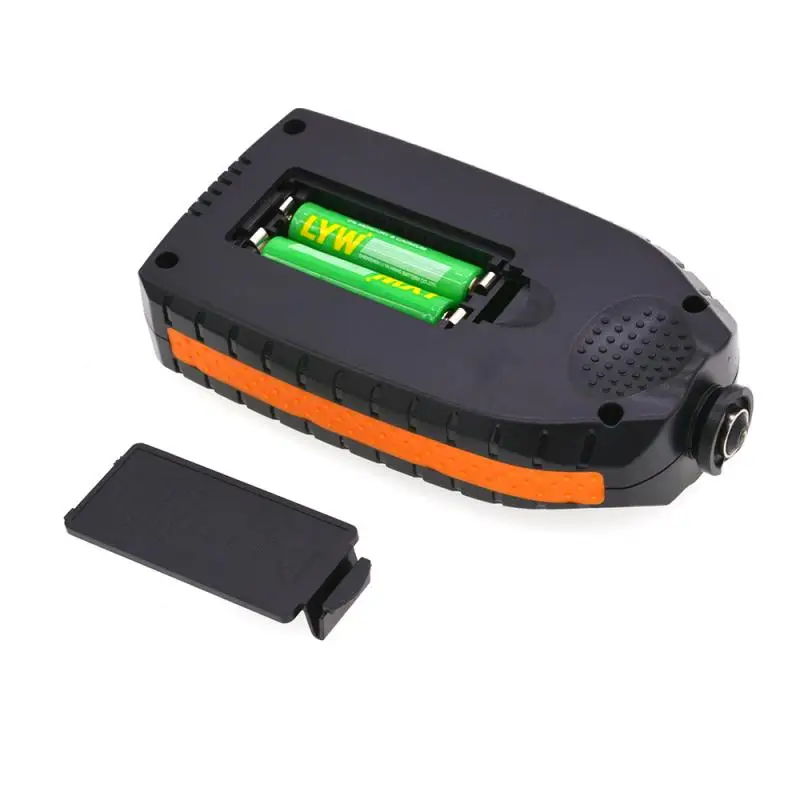

The batteries(2pcs 1.5V AAA batteries) will not come with the package.
