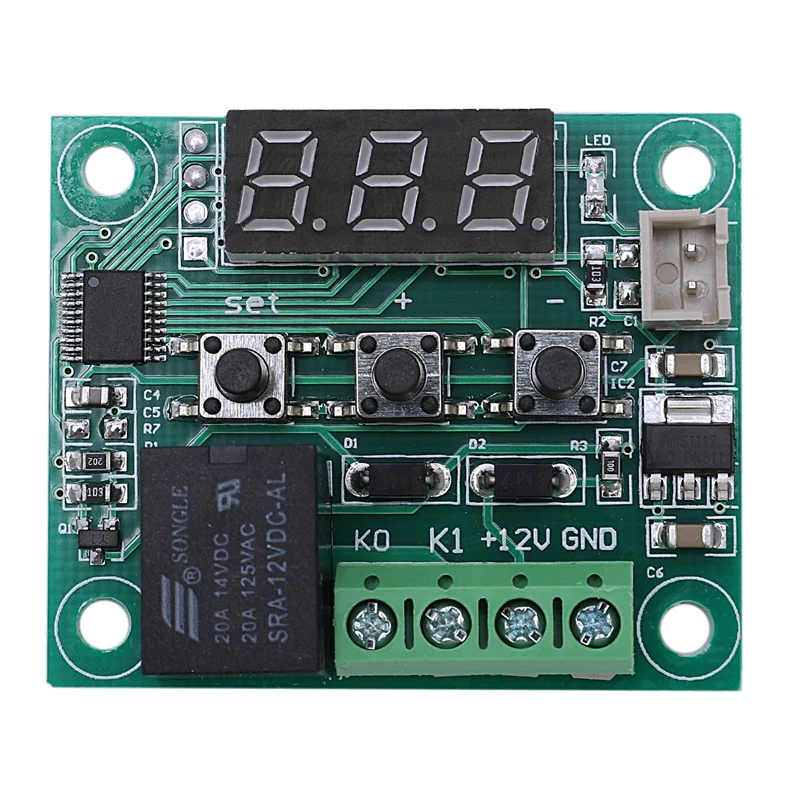

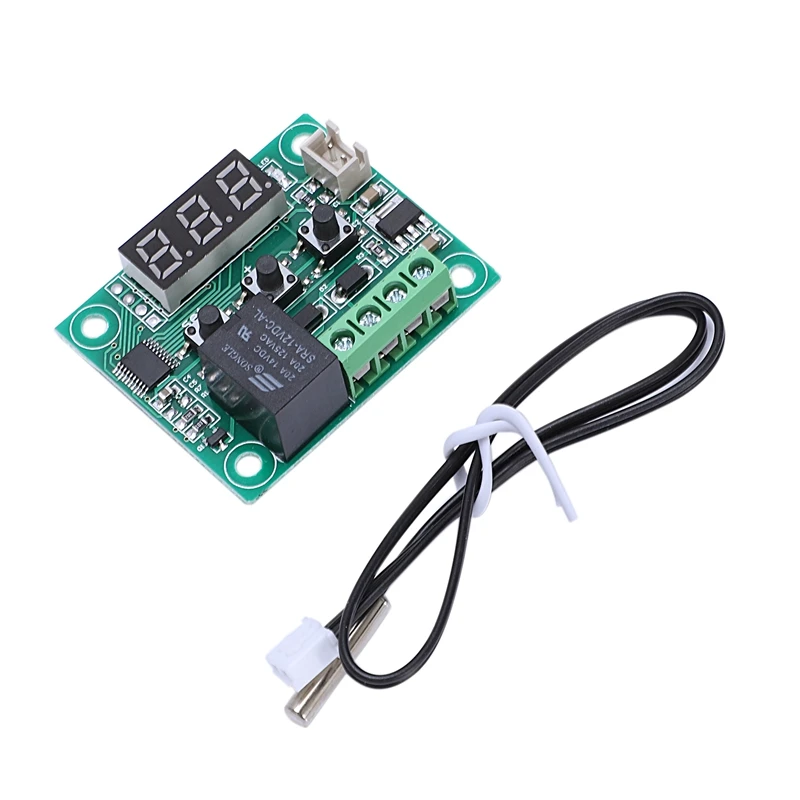

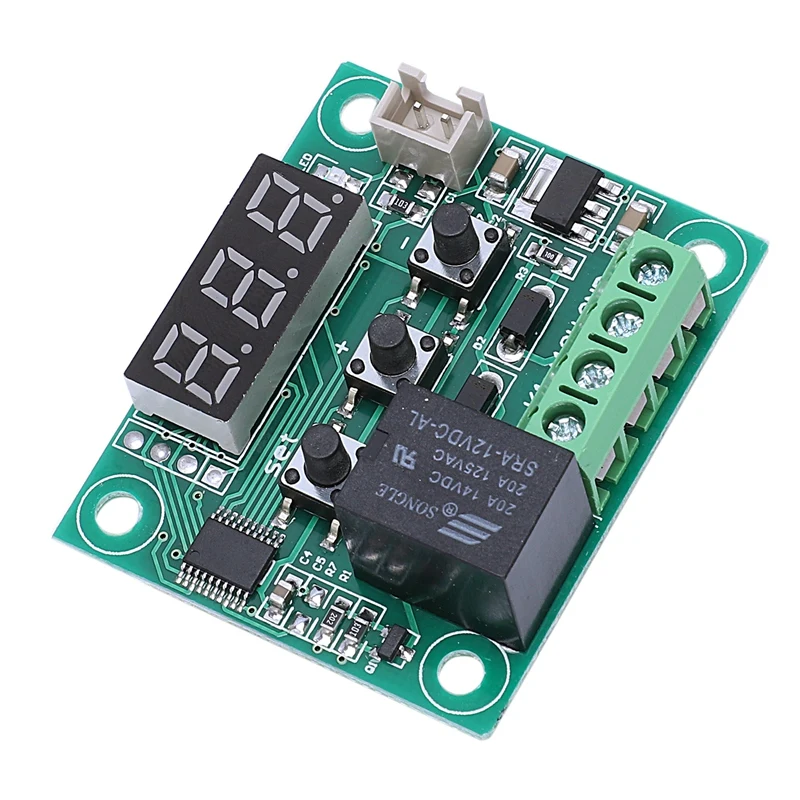

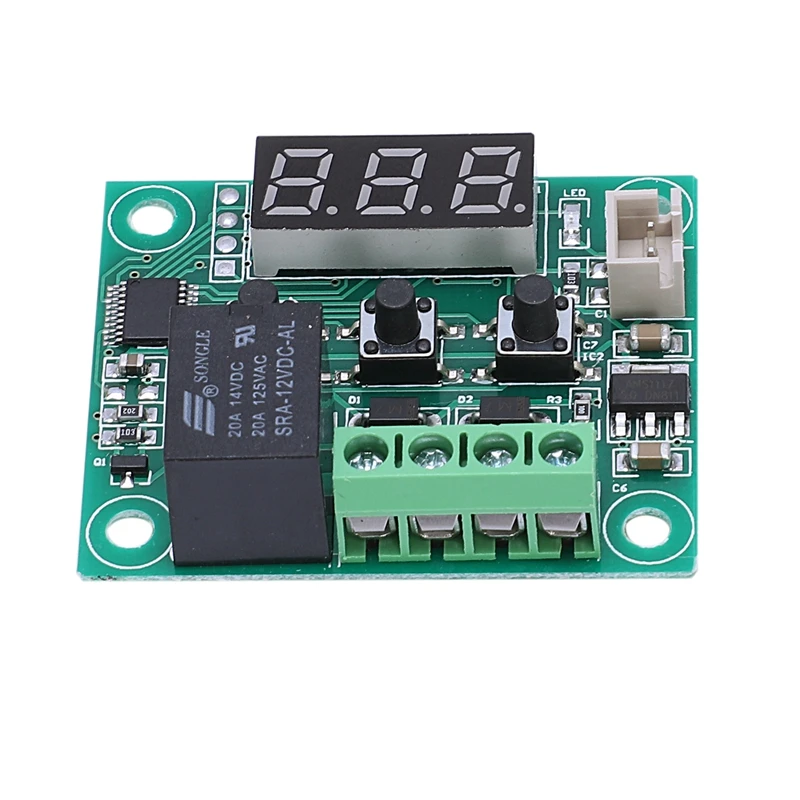

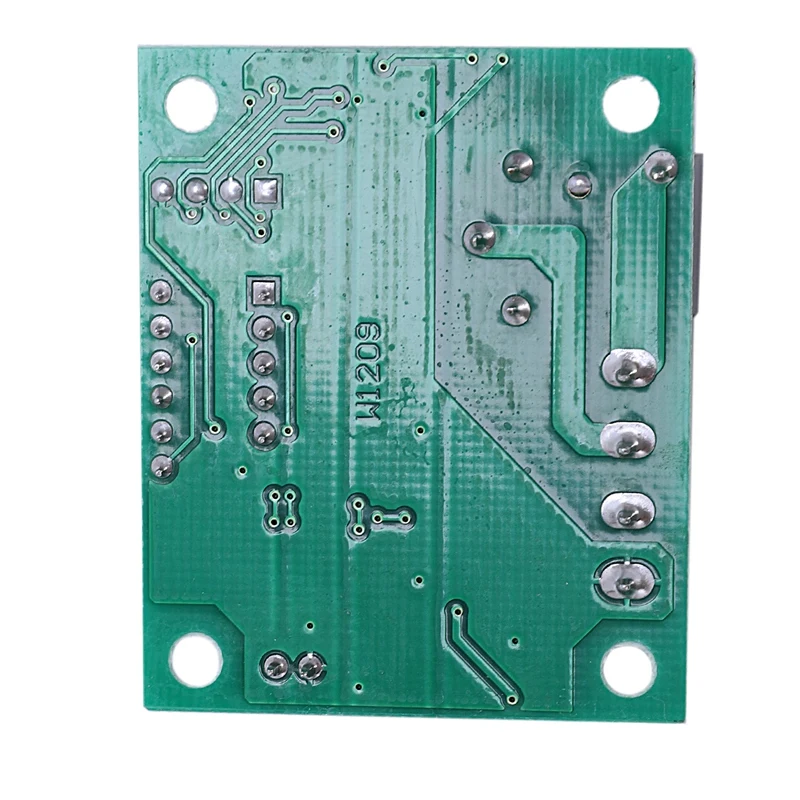

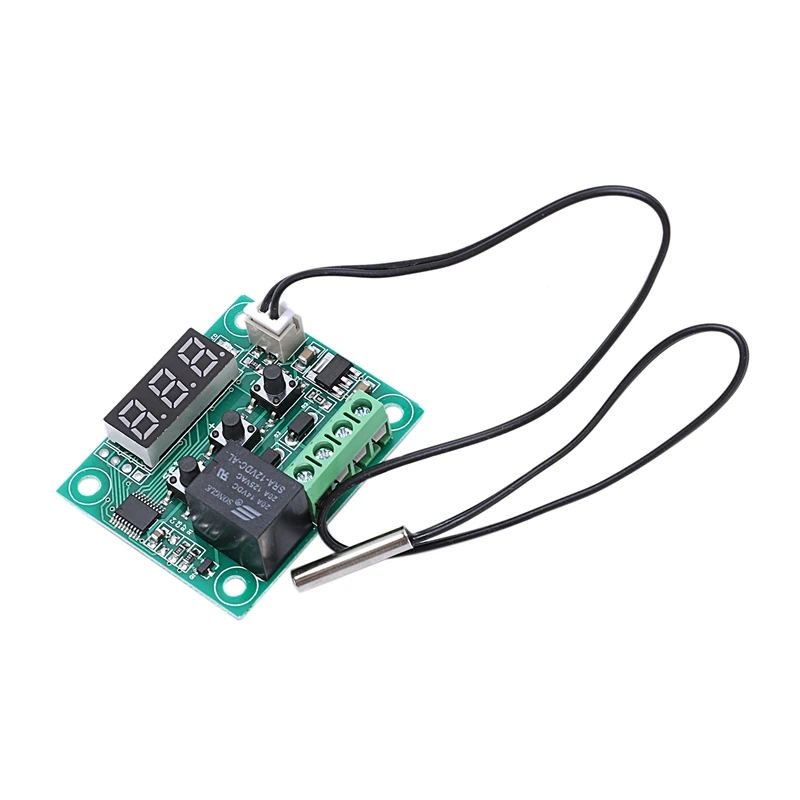

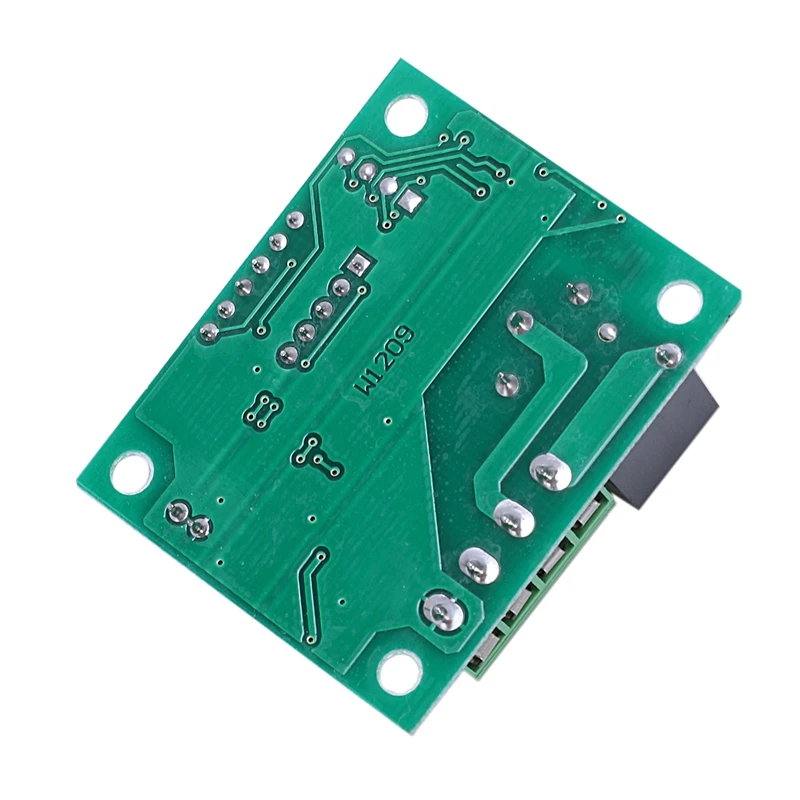

    2pcs 12V DC Digital Temperature Controller Board Micro-Digital Thermostat -50-110°C Electronic Temperature Temp Control Module S


    100% complete machine patch, wave soldering, stable performance, good consistency.
    Embedded CPU chip (MCU), more intelligent, lower power consumption.Automatic power set memory (MCU built-in EEPROM memory unit).Control accuracy of 0.1 degrees Celsius. Have been tested for stability, consistency and reliability.
    Instructions for use:Connect the power supply and equipment, the measuring temperature is displayed,press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease),press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF.the thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.
    Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm .Long press the "SET" button to enter the main menu settings,press " + or - " to switching between P0-P6,then long press "SET" or 10 seconds without keystrokes to confirm the setting and return.
    Tips: - long press set to get menu, starts at P0 - press +/- to get next P-parameter - press set to choose that parameter - press +/- to select the value you want for that parameter - press set to accept it - long press +/- = reset to default - power-out does reset to default - default temp set is 34.5°C
    Specifications:
    Model: W1209
    Dimensions: 48.5 * 40mm
    Temperature Control mode: ON / OFF
    Temperature Range :-50 - 110 degree centigrade
    Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.
    Control Accuracy: 0.1 degree
    Hysteresis Accuracy: 0.1 degree
    Refresh Rate: 0.5s
    High Temperature Protection 0 - 110 degree centigrade
    Supply Voltage:DC 12V
    Static Current:Less than 35MA, attract current less than 65MA
    Output Voltage:DC 12V
    Output Power:20A relay
    Measurement Input: NTC (10K 0.5%) Waterproof Sensor
    Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%
    Color:green
    Material:PCB board

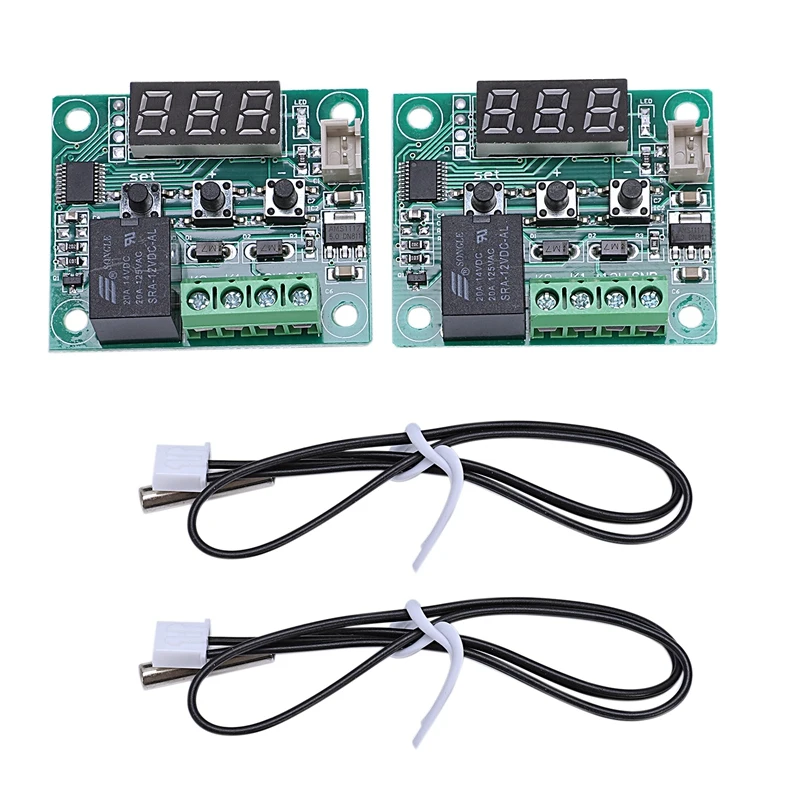

    Package Included:2*W1209 12V DC Digital Temperature Controller Board


    Only the above package content, other products are not included.
    Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
