Help to est your skills with infinite programming possibilities.Motherboard chip:integrated image / sound card / network card
The main chipset: for Intel Intel P55/P57/PM55, etc.
Fast Ethernet NIC chip: integrated RTL8105E
Memory Specifications
Memory Type: DDR3 1600/1333/1066 MHZ
Memory slot:2 x DDR3 DIMMs
Expansion slot
1x PCI-E X16 image slot
2x USB2.0 pin
4x SATA2.0 interface
I / O interface
1x PS / 2 mouse interface
1x PS / 2 keyboard interface
1x RJ45 network interface
1x COM interface (not integrated, nuclear display function)
4x USB 2.0 interface
Audio Interface (Print Ports Version Support)
Other parameters
Power socket:1x 4-pin, 1X 24-pin power connector
Power mode 3 phase 2 CPU fan pins
Only the above package content, other products are not included.
Note: Please refer to P55 for the model number, or scan the QR code to confirm, the digital model on the motherboard is printed on the factory PCB board, please understand, thank you
size:21.5*17*4CM
Material:plastic
colour:black

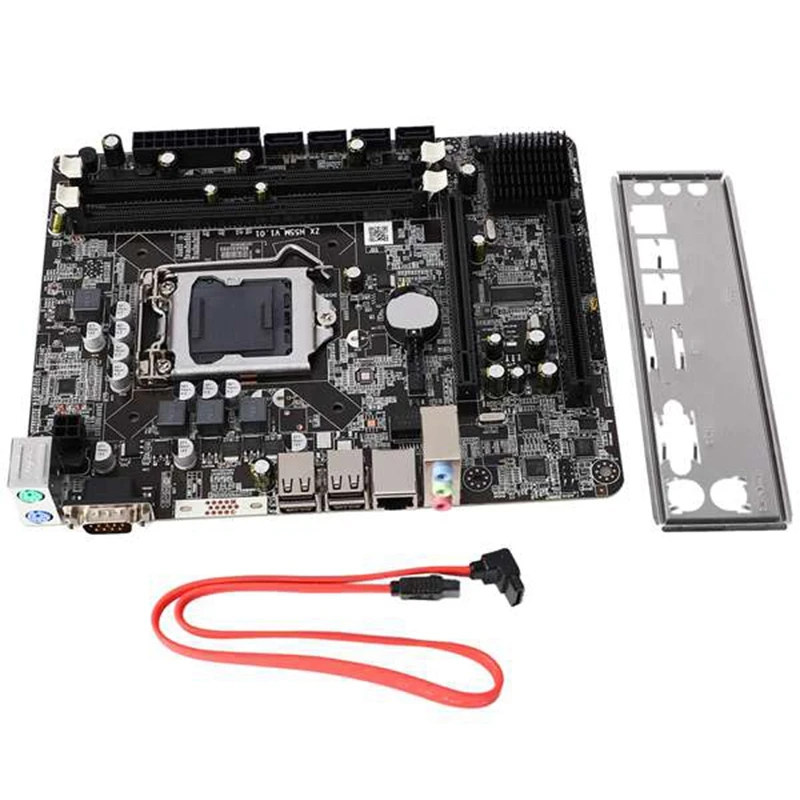

Package Contents:
1 * P55 motherboard(Physical printing may come with other PCB models, please refer to model P55)
1 * backplane
1 * cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
