HG P806 RTR Pre-Assembled TRASPED 1:12 Heavy Equipment Semi Trailer for U.S M747 RC Car Vehicles Model Toys Parts | Игрушки и хобби

HG P806 RTR Pre-Assembled TRASPED 1:12 Heavy Equipment Semi Trailer for U.S M747 RC Car Vehicles Model Toys Parts | Игрушки и хобби

Description:

Brand:HG

Item No:HG-P806
Scale: 1/12
Color:Desert yellow and army green
Age:14+

Speed:According to tractor performance and load

Tail Plate Lifting Motor:JTE-260S-13260-38

Main Control Board:HG318 main control board with lighting effects and stuck protection

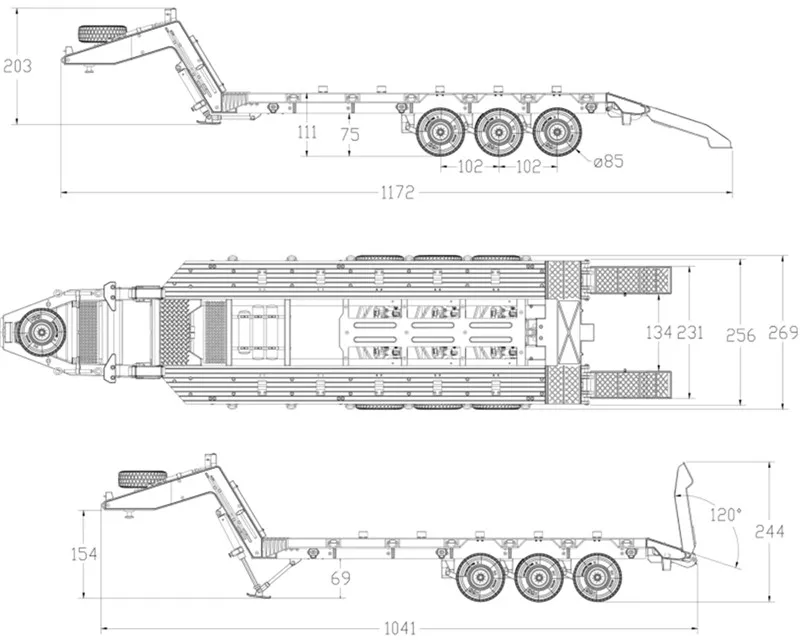

Trailer Size:1172（1038）×269×245mm
Wheelbase:102mm × 102mm
Wheel Margin: 269mm

Wheel Diameter:R85mm

Parameters:

1.Max Climbing Angle: 15°/ 2 meters long slope

2.Max Turning Radius: 2 meters

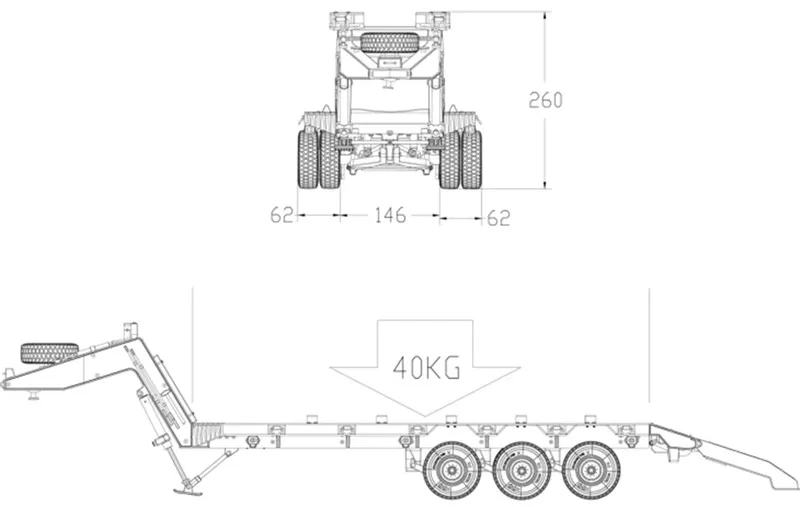

3. Max Load: 40KG

4.Raising Angle of Tail Plate: 120°

5.Max Span Width: 180mm

6.Protection Function: When the tailboard is blocked when rising or falling, it will automatically stop to prevent the tailboard from being damaged due to excessive force.

7.Total length: 1172mm (the tail plate is lowered) 1038mm (the tail plate is raised)

This product belongs to low panel semi trailer category,the beam adopts the same ladder frame structure as the real car,choose high quality alloy material, the net weight of whole vehicle reaches 10.5KG,solid and reliable.The rated load of semi trailer loading zone is 40KG,mainly used to transport large construction machinery, large military equipments, tanks and other large model vehicles.

The front part of semi trailer is equipped with an all-metal semi-automatic retractable front foot support,simple and reliable operation,and more outstanding mechanical sense, practical simulation combined. HG-P806 adopts the "double line and three axes" active balanced steel suspension structure,The front and rear axles of the suspension are stressed equally, and the left and right do not interfere with each other.

The semi trailer of HG-P806 is equipped with automatic elevator ladder and double pass-through load protection electric control module, with double flashing lights, which can be directly taken by the receiver and independently controlled by the remote controller, or manually realized by the button switch at the front of the semi trailer.HG-P806 belongs to the whole box of bulk configuration, which has been finished at the factory (the buttom color has been finished). Players can DIY all the appearance parts and the assembly of the activity mechanism by themselves, and they can add the personalized painting according to their preference.

The drag and drop join structure of semi trailer is mainly made to suit HENGGUAN MODEL HG-P802 military towing grinder, also compatible with the same proportion of tractor truck on the market, and can be controlled by changing the tractor truck at will.

Note:

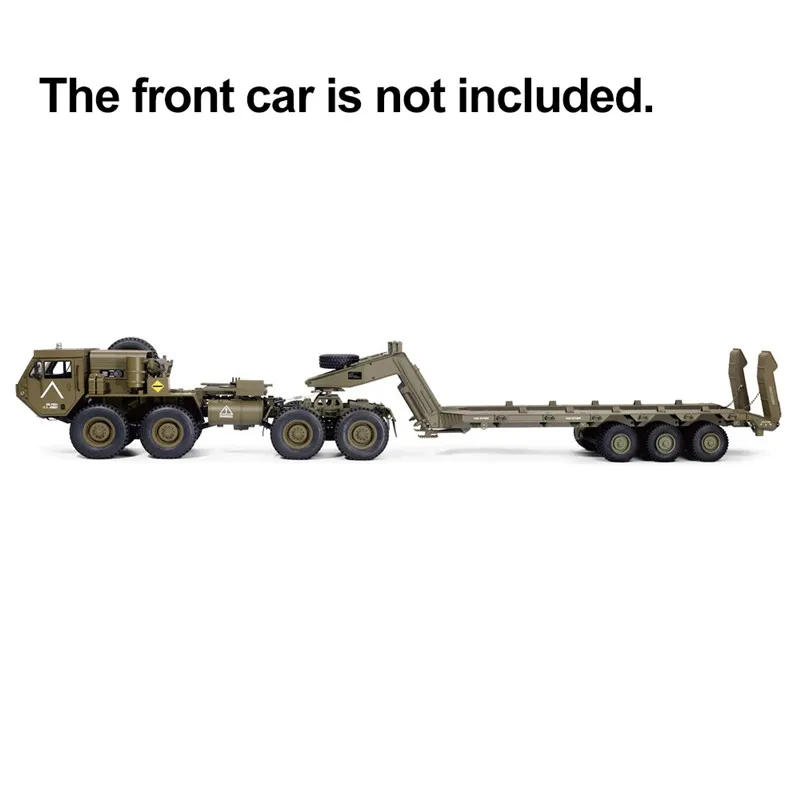

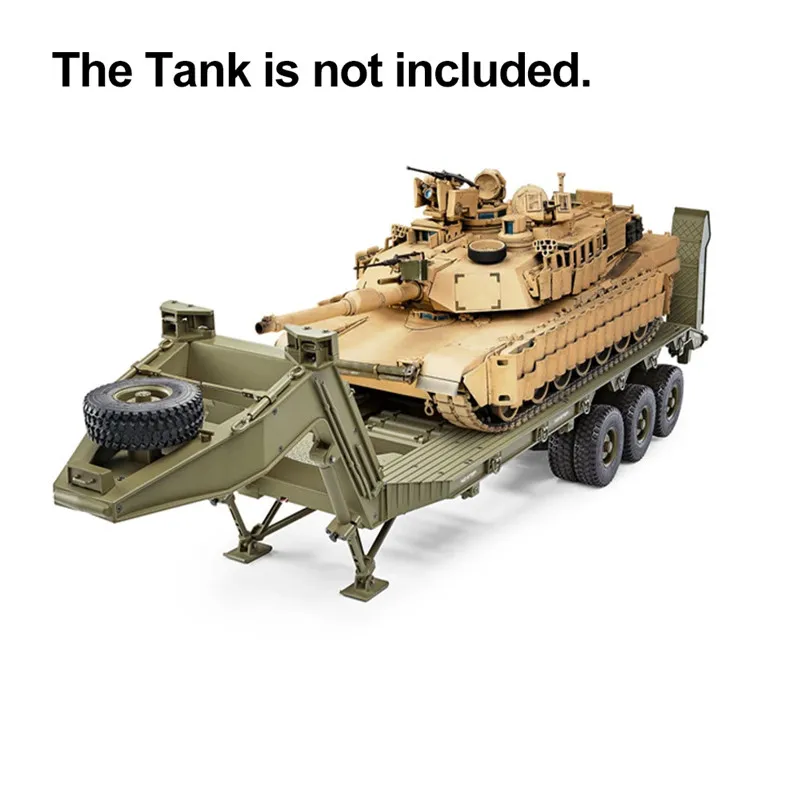

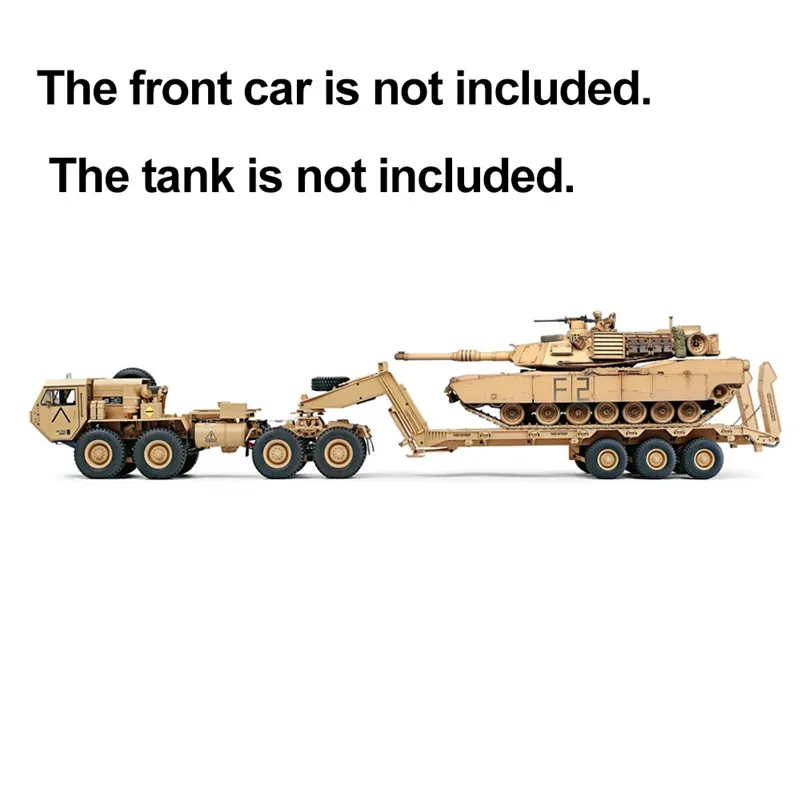

The rc car and tank are not included in the package.

This rc trailer is pre-assembled,you do not need to build up.

Package Included:

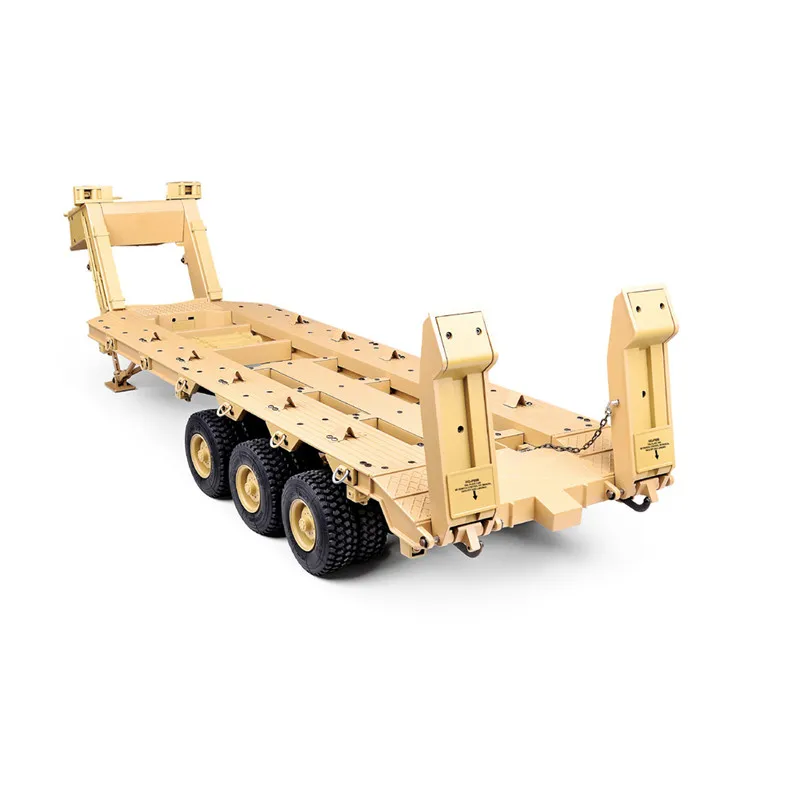

1X Pre-Assembled RC Trailer

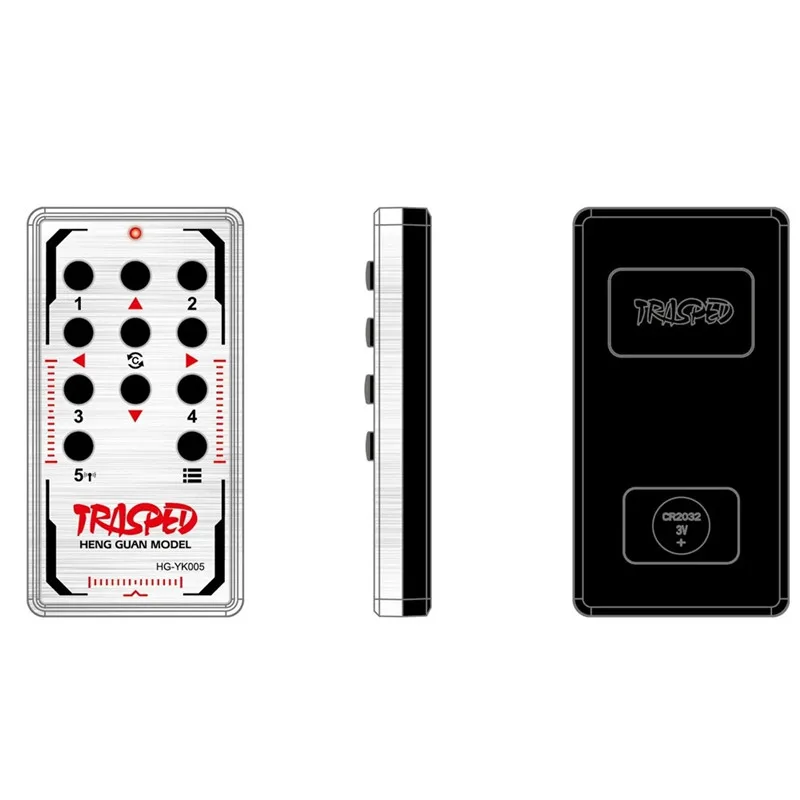

1X Remote Controller

1X Manual

1X Sticker

1X 1.5mm Allen Screwdriver

1X 2.0mm Allen Wrench

1X 2.5mm Allen Wrench

1X Cross Wrench (Small)

1X Small Wrench

1X Nylon Cable Tie 3*150mm (Black)
