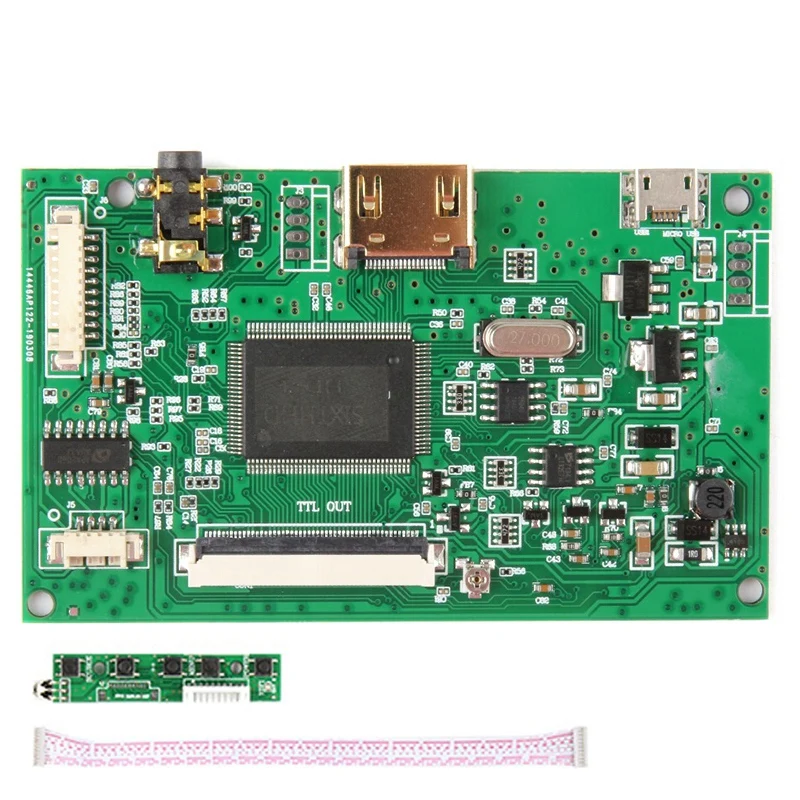

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } AT070TN92 Driver Board LCD Sn Controller HDMI for Innolux AT070TN90 AT090TN10 AT070TN93 AT080TN52 Micro-USB 50 Pins MIRCO USB power supply interface, 5V standard power supply, need to be greater than 1.5A
All card holders are 1.25MM, SMD socket
1 HDMI signal input, and this IC supports HDMI1.2
HDMI is high-quality gold-plated seat
The sn interface adopts the definition of high-quality gold-plated connector -50PIN-AT070TN92
support power amplifier output, 8 Euro-2W / 4 Euro-2W
the driver board uses a special circuit design, can drive about 10V LED backlight, and supports a maximum current output of 200MA,
support, TTL-50P standard interface (see AT070TN92,), support TTL-40P standard definition interface (see EJ070NA-01J)
standard 5-key keypad interface, and supports dual-color LED indicator display
support TTL signal output,
Support AT070TN92, AT065TN14, AT080TN52, AT080TN64, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94, etc., TTL LCD sn with universal 50PIN interface
with PCB800100, can also support 4. 3, 5, 6, 7 inch, 40PIN universal sn, see AT043TN24V, 1
Colour:Green
Material:plastic
Size:87.5*52.8*7mm
Package Contents:
1*AT070TN92 Driver Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
