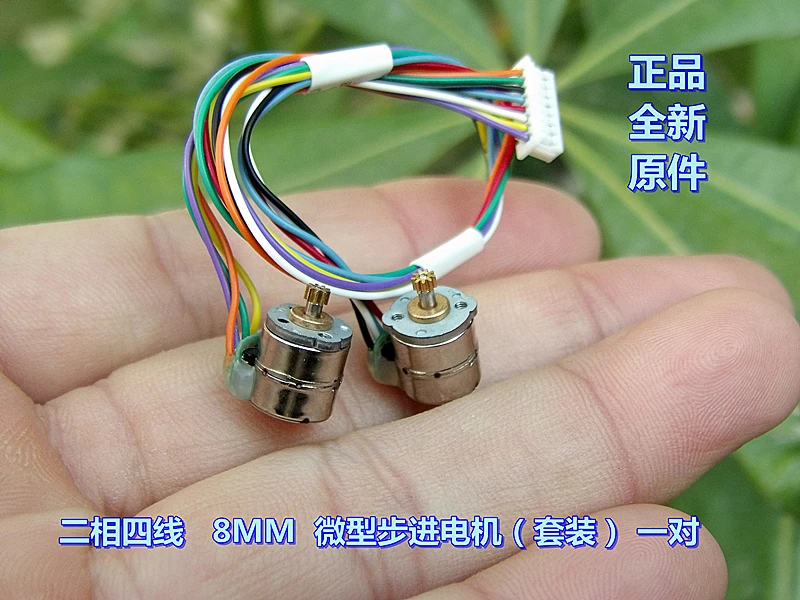

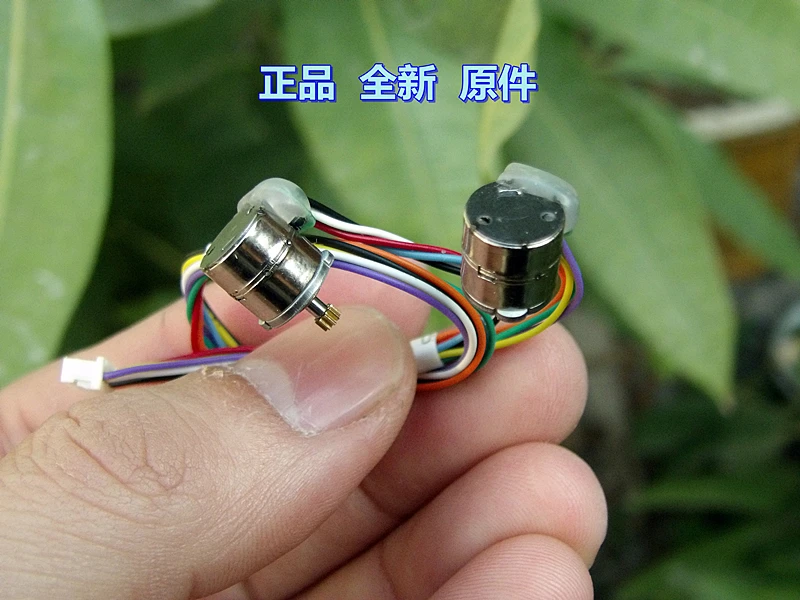

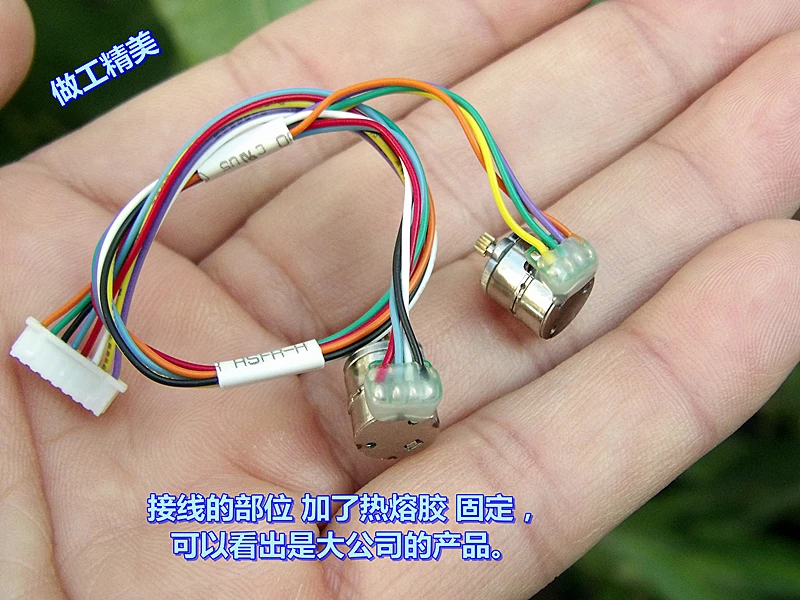

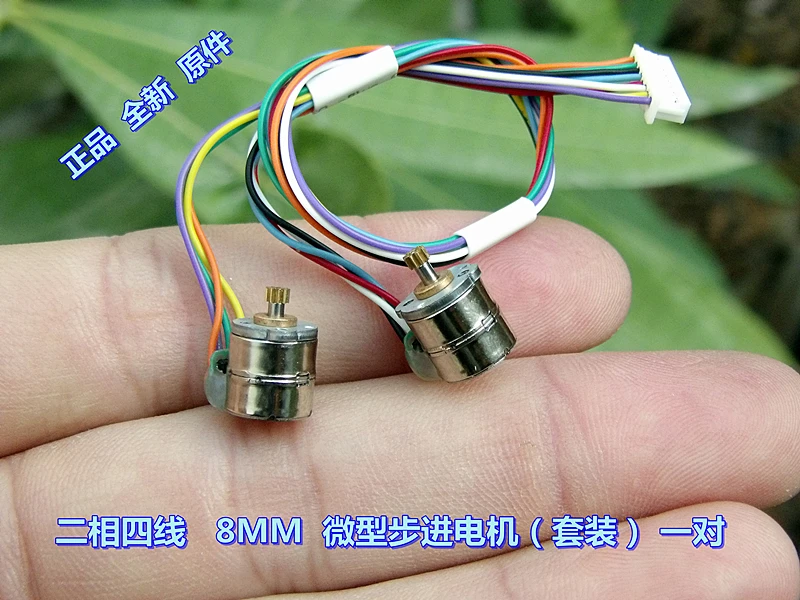

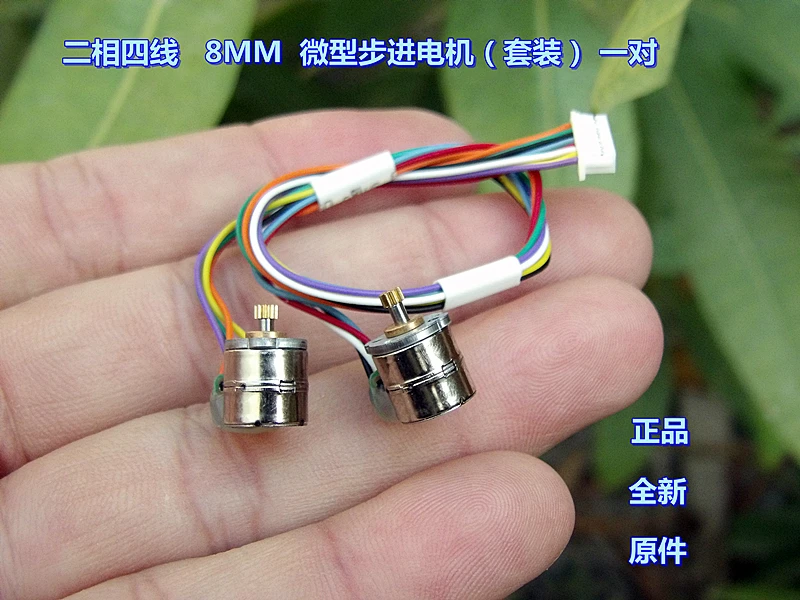

Brand new original genuine 8MM Stepper motor suit（Contains two motor），Because it is two motors connected to the same terminal，So it is sold in units of two motors。Bulk motor exquisite workmanship，The wiring parts are reinforced and fixed with dispensing，Process neat，It can be seen that this is a new product of a big company。

Head couple motor special promotions，Only a pair of Oh.........

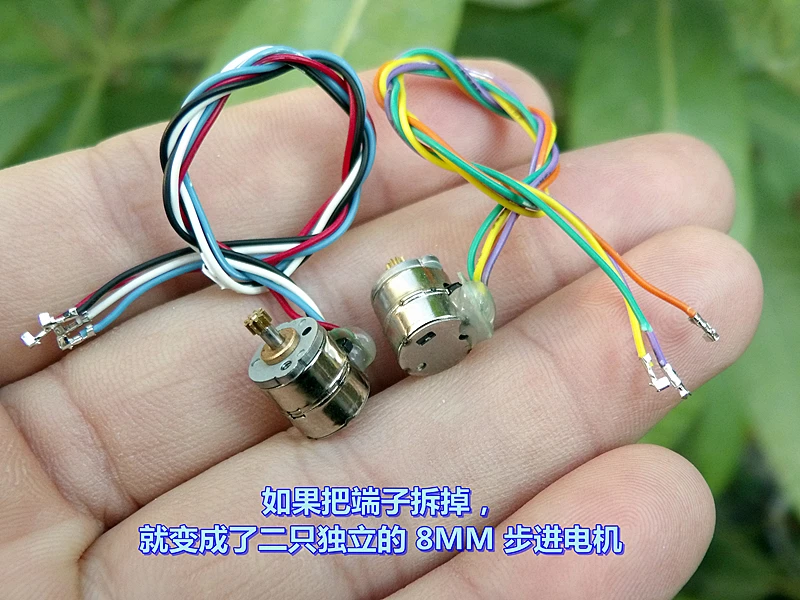

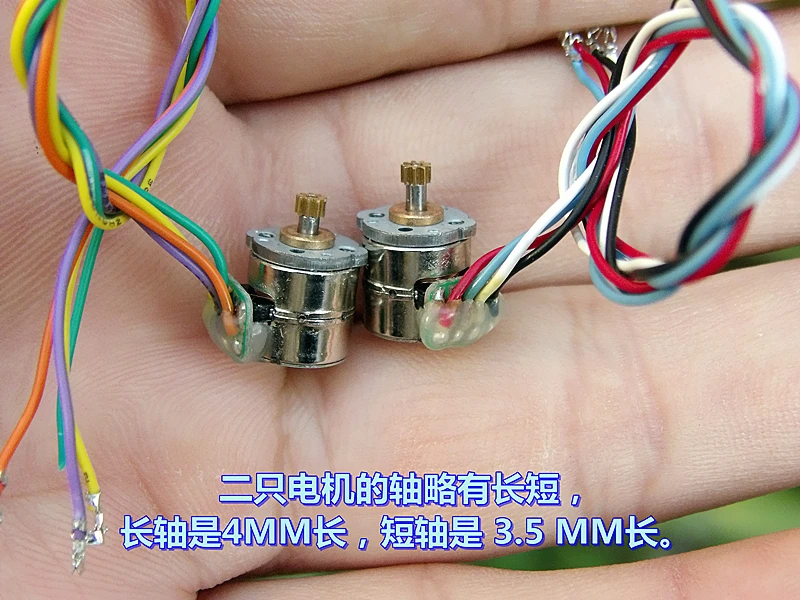

If you don't need two motors for one-piece use，You can also remove the terminal，In this way, it becomes two independent ones 8MM micro stepper motor，Lead a long，Almost 160 MM A long，This makes it more convenient to use，Also no longer set our own welding line，For this kind of micro stepping welding lead, it still needs technical，Because if the temperature of electric ferrochrome is too high, the coil of the stepping motor will be burnt out.，It is more convenient to wear cable itself DIY Use of。The shaft length of the two motors is slightly different，The length of one shaft is 4MM，The length of one shaft is 3.5 MM。

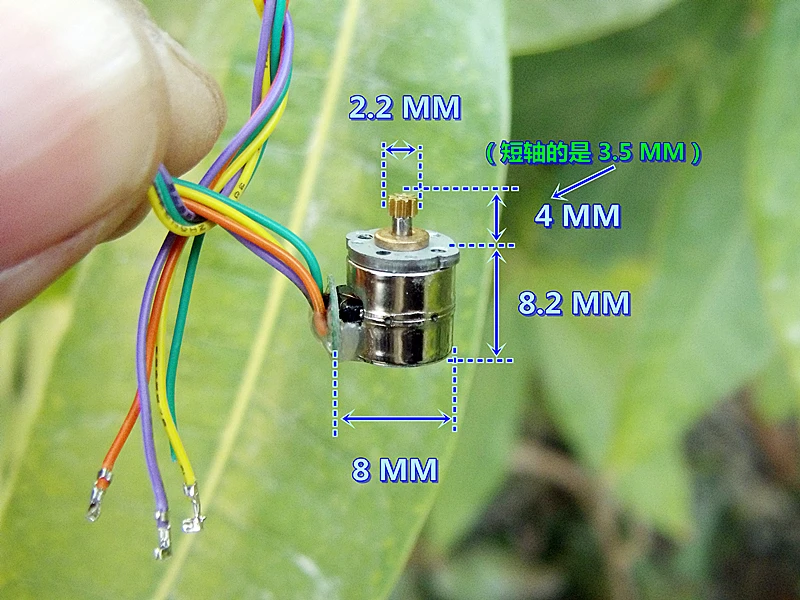

Stepper motor diameter：8 MM

Height：8.2 MM

Type ： Two-phase four-wire

The long axis of （ Blue ：A ，Black：A-。Red ：B ，White ：B-）

The minor axis of（Purple ： A ，Yellow ：B-。Orange ：B ，Green ：B-）

The internal resistance : 39.2 Europe

6 V The short-circuit current ： 0.14 A

（The estimated phase is5V-6V，The drive current is about 0.12A）

Output shaft：1.5 MM

Shaft length ： The long axis 4MM，The minor axis 3.5MM。

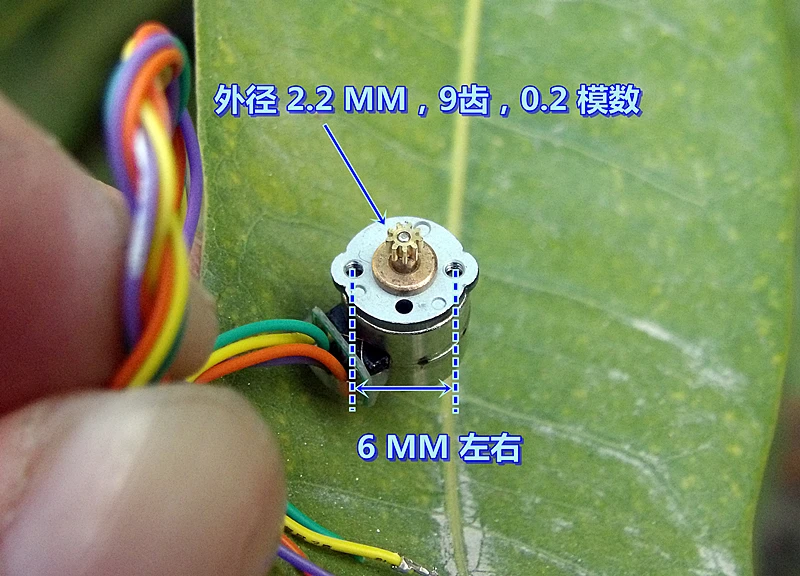

Can be any outer diameter ： 2.2 MM（9Teeth，0.2The analog-to-digital）

Weight：6 Grams

Workmanship is very ingenious8MMmicro stepper motor，It should be widely used in digital products of various small household appliances such as digital cameras。And it is a relatively new product recently，It is more suitable for new digital products such as digital cameras，Even the gear of the motor looks very precise。

'
